AMGO PRO-12A 12,000lb Alignment Four Post Lift
$6,210.00
Skip to product information

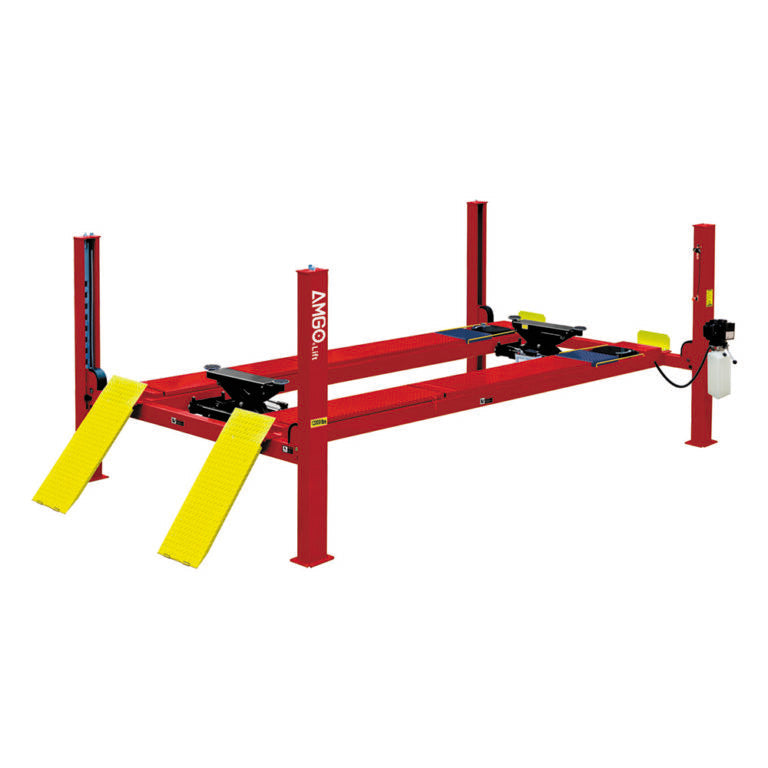

AMGO PRO-12A 12,000lb Alignment Four Post Lift
$6,210.00
Upgrade your workshop or home garage with the AMGO PRO-12A 12,000 lb 4-Post Lift, engineered for maximum strength, stability, and versatility. Ideal for professional automotive shops and serious DIY enthusiasts, this lift accommodates a wide range of vehicles, from sedans to heavy-duty trucks, while providing full support for wheel alignment, brake work, and general maintenance. Built with industrial-grade steel and a precision hydraulic system, the PRO-12A ensures smooth, efficient lifting and superior safety.

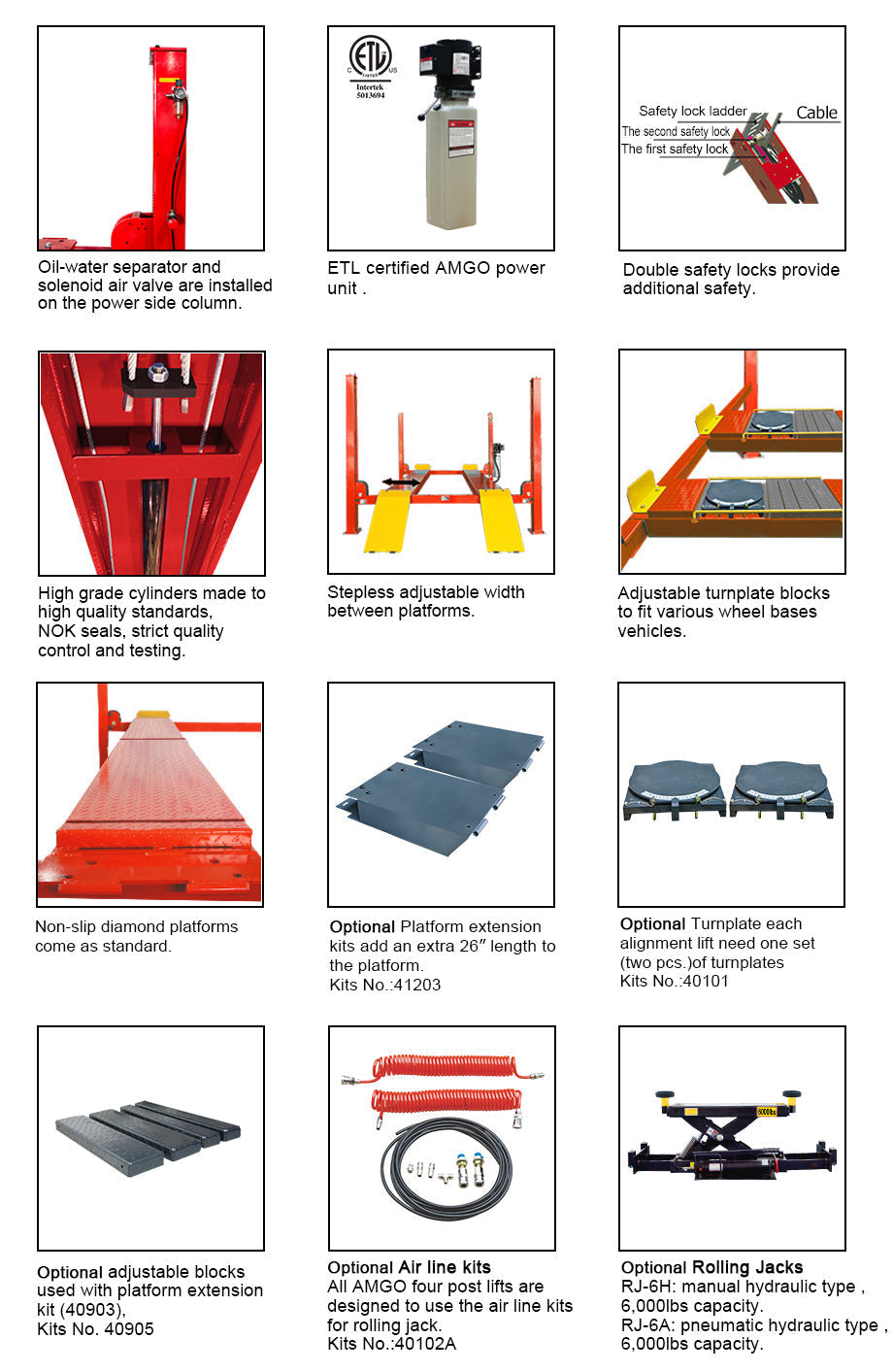

| Product Features |
|---|
| 12,000 lbs lifting capacity |
| AMGO ETL certified power unit included |
| Mechanical self-locking safety device with air-driven lock release |
| Primary multiple safety locks and cable-slack protection |
| Aircraft-grade high-quality cable drive system |
| Durable hydraulic cylinder with top-quality oil seals and compensation valve |
| Non-skid diamond platforms |
| Stepless adjustable width between platforms |
| Integrated slip plates and adjustable turnplate pockets for alignment |

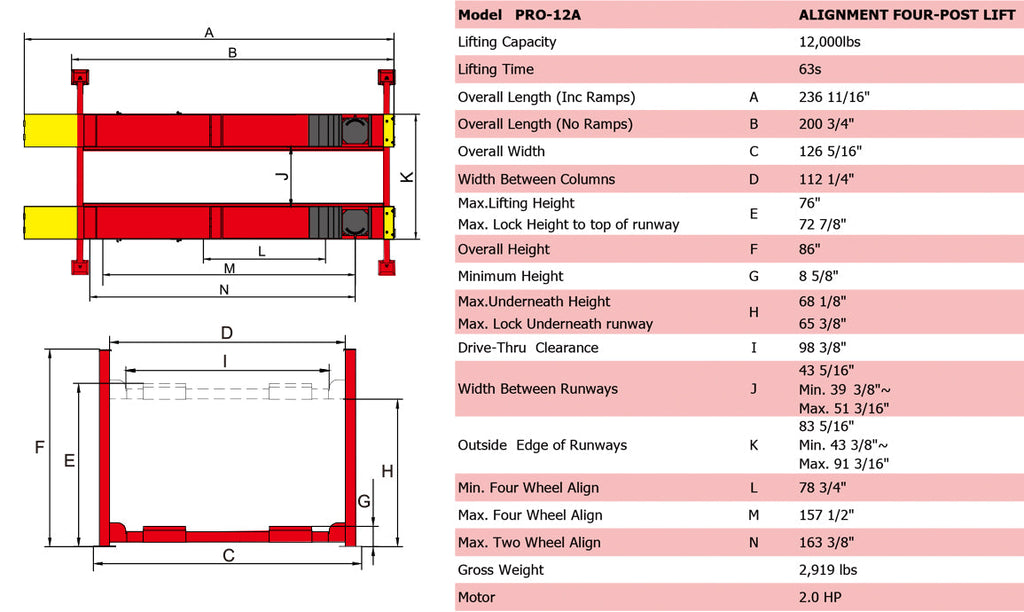

| Product Specifications | Details |
|---|---|
| Model | PRO-12A |
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 63 seconds |
| Overall Length (Inc. Ramps) | 236 11/16″ |
| Overall Length (No Ramps) | 200 3/4″ |
| Overall Width | 126 5/16″ |
| Width Between Columns | 112 1/4″ |
| Max. Lifting Height | 76″ |
| Max Lock Height to Top of Runway | 72 7/8″ |
| Overall Height | 86″ |
| Minimum Height | 8 5/8″ |
| Max. Underneath Height | 68 1/8″ |
| Max. Lock Underneath Runway | 65 3/8″ |
| Drive-Thru Clearance | 98 3/8″ |
| Width Between Runways | 43 5/16″ (Min 39 3/8″ – Max 51 3/16″) |
| Outside Edge of Runways | 83 5/16″ (Min 43 3/8″ – Max 91 3/16″) |
| Min. Four Wheel Align | 78 3/4″ |
| Max. Four Wheel Align | 155 1/2″ |
| Max. Two Wheel Align | 163 3/8″ |
| Gross Weight | 2,919 lbs |
| Motor | 2.0HP |
Pick Up and Delivery: Our AMGO lift pick-up locations are in Manning, SC; Dallas, TX; and Temecula, CA.
