Atlas 6051BC ALI Certified 111,000lb Capacity Battery Powered Mobile Column Lift System
$60,499.00

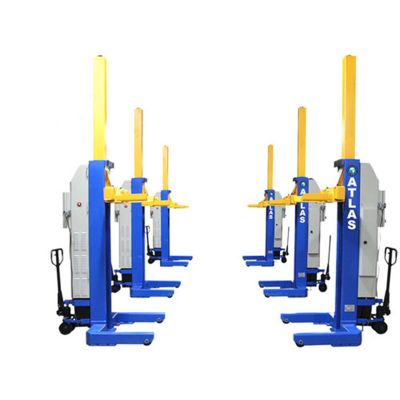

The Atlas® ALI Certified Maxima® ML6051BC Mobile Column Lift System is engineered to lift the heaviest commercial vehicles with ease, safety, and precision. This 6-column system delivers a total lifting capacity of 111,000 lbs., making it ideal for large fleet maintenance facilities, heavy truck shops, and bus depots. Each column is powered by a 2.2 Kw 24V DC motor with two onboard rechargeable batteries, allowing for cordless, portable operation anywhere on a level concrete surface. The hydraulic pallet jack system enables easy repositioning and storage, maximizing floor space when the lift is not in use. Adjustable forks accommodate a wide range of tire sizes, while the electronic synchronization system ensures each column lifts in perfect harmony. With multiple safety features, ALI certification, and reliable battery-powered performance, this heavy-duty lift system is built for professional-grade operations.
| Product Features |
|---|

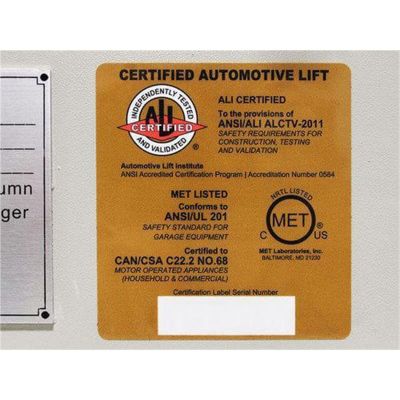

| ALI Certified for safety and quality |
| Simultaneous operation of all columns |

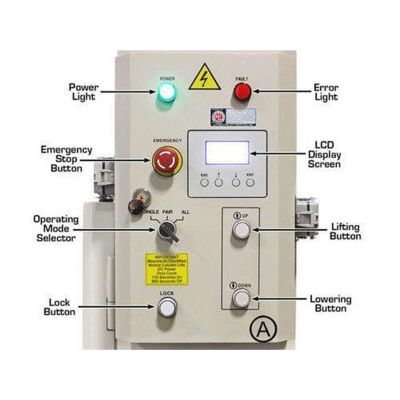

| LCD display shows exact lifting height per column |
| Electronic synchronization of all columns for safe lifting |
| Dual safety system: hydraulic flow control & mechanical locks |

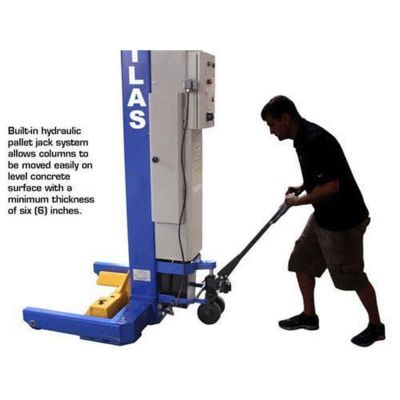

| Portable design with hydraulic pallet jacks |
| Adjustable forks fit tire diameters from 19" to 44" |
| Emergency stop buttons on every column |
| Six 32' column communication cables included |
| 2.2 Kw 24V DC motor with two rechargeable batteries per column |
| Battery power allows 10–20 lifts per charge |
| Recharges using standard 110V single-phase power |
| 2-Year Limited Warranty |
|
 |
| Product Specifications | |
|---|---|
| Lifting Capacity (Per Column) | 18,500 lbs. |
| Total Capacity (6 Columns) | 111,000 lbs. |
| Max Lifting Height | 67" (5' 7") |
| Resting Height | 88.5" (7' 4 1/2") |
| Overall Height | 145" (12' 1") |
| Column Dimensions (W x L) | 13.25" x 55.5" |
| Motor Type | 2.2 Kw 24V DC |
| Tire Diameter Range | 19" – 44" |
| Shipping Weight (Per Column) | 1,700 lbs. |
| Total Shipping Weight (6 Columns) | 10,200 lbs. |
| Warranty | 2-Year Limited |
