Atlas OHX10000X Commercial Grade Extra Tall 2 Post Lift 10,000 lb. Capacity
$4,599.00
Skip to product information
Atlas OHX10000X Commercial Grade Extra Tall 2 Post Lift 10,000 lb. Capacity
$4,599.00

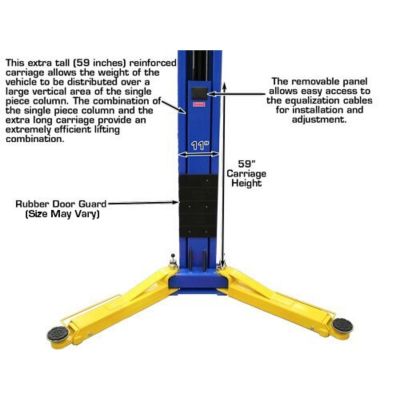

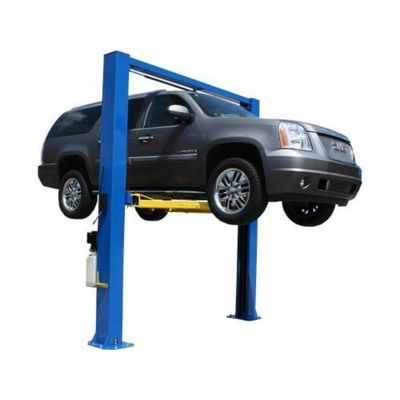

The Atlas® OHX10000X is a commercial-grade overhead two-post lift built for lifting a wide variety of vehicles, including long wheelbase trucks and vans. With a robust 10,000 lb. lifting capacity, this lift is ideal for professional repair shops and homeowners who want premium performance and durability. Its extra-tall and extra-wide design makes it especially suitable for high-roof commercial vehicles, ladder trucks, or operators who need additional workspace underneath. The single-piece column construction and extended-height direct-drive cylinders allow for higher lifting than many standard two-post lifts. A single-point lock release and automatic arm restraints provide convenience and safety, while the padded shut-off bar prevents damage to vehicle roofs. The OHX10000X comes complete with a 12-piece truck adapter set and all necessary mounting hardware, making it a true value for serious mechanics and garage owners alike.
| Product Features |
|---|
| 10,000 lb. Capacity |
| Commercial Grade Construction |
| Extra Tall & Extra Wide Design |

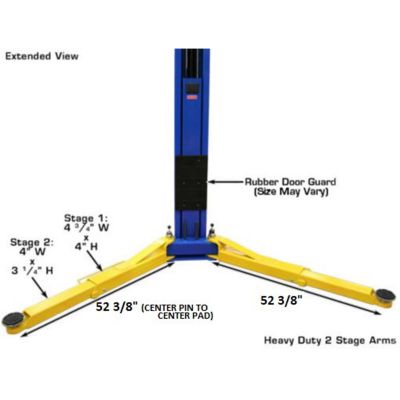

| Symmetric Arm Configuration |

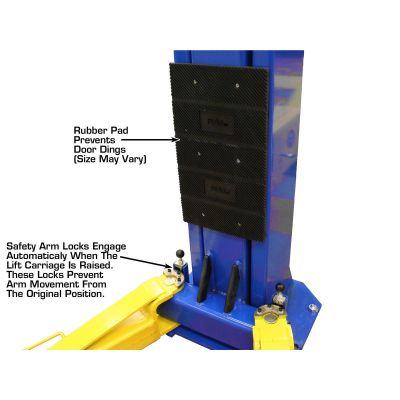

| Automatic Arm Restraints |
| Single Piece Columns for Maximum Strength |

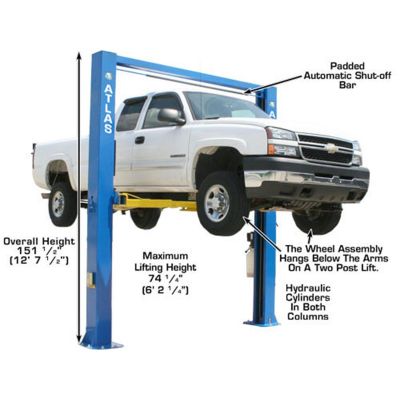

| “Padded” Shut-Off Bar Prevents Overlifting |

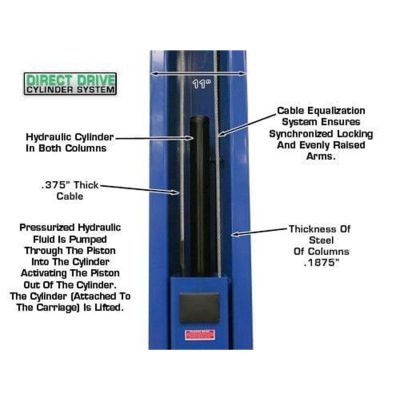

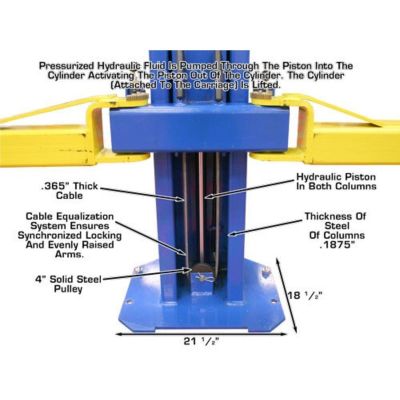

| Dual Direct-Drive Hydraulic Cylinders |
| Single Point Lock Release |

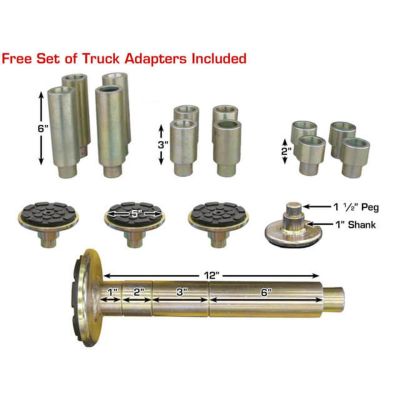

| Free 12-Piece Truck Adapter Set |
| Powder Coat Finish for Long-Term Durability |
| Mounting Hardware Included |
| 5-Year Structural / 2-Year Hydraulic Warranty (Parts Only) |
|
 |
| Product Specifications | |
|---|---|
| Capacity | 10,000 LB. |

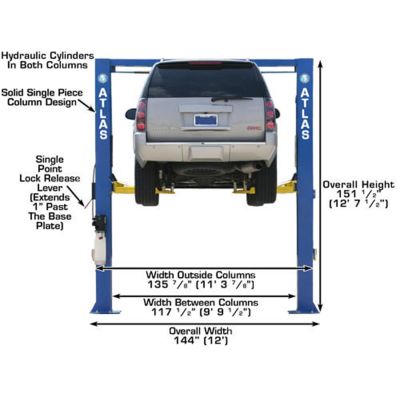

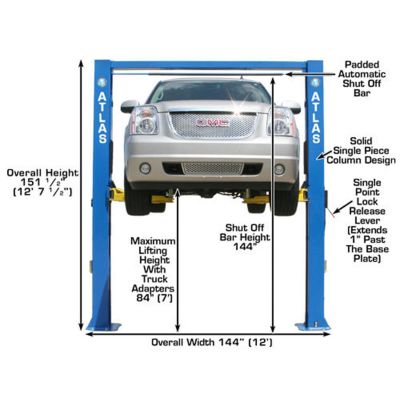

| Overall Height | 152" (12' 8") |

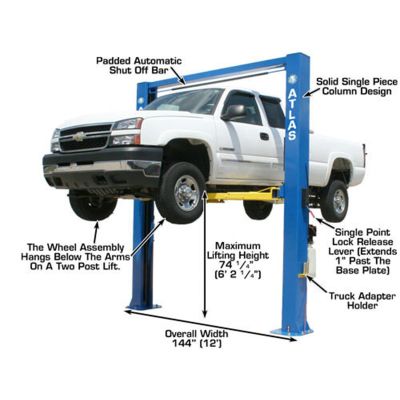

| Overall Floor Width | 144 3/8" (12' 3/8") |
| Outside Column to Column | 136" (11' 4") |
| Drive Thru Width | 106 7/8" (8' 10 7/8") |
| Max Lift Height (w/ Adapters) | 85 3/4" |
| Min Arm Height | 4 1/2" |
| Motor / Electrical | 220V Single Phase (30A Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each: 2", 3", 6" |

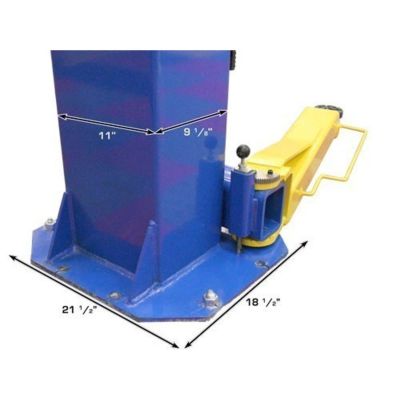

| Column Size | 9 1/8" x 11" |

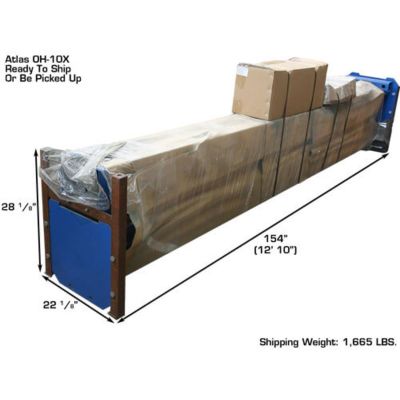

| Shipping Weight | 1,665 lbs. |
