Atlas Platinum PVL15 ALI Certified Commercial Grade Overhead 2-Post Lift 15,000 lb. Capacity
$13,149.00
Skip to product information
Atlas Platinum PVL15 ALI Certified Commercial Grade Overhead 2-Post Lift 15,000 lb. Capacity
$13,149.00

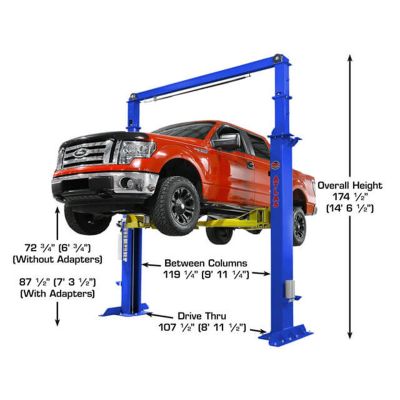

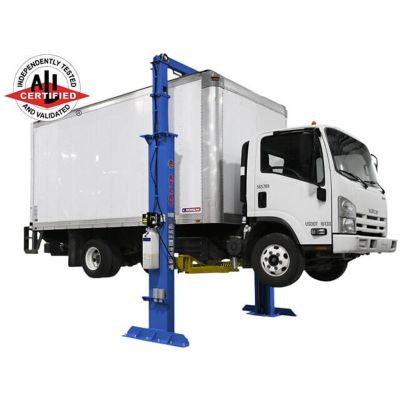

The Atlas® Platinum PVL15 is a heavy-duty, ALI Certified overhead two-post lift built for serious commercial service. With an impressive 15,000 lb. lifting capacity and an extra-tall design, this lift easily accommodates long wheelbase vehicles, heavy-duty trucks, and service vans. The 174 1/2" column height (over 14 ft.) allows for ample clearance, and an optional Height Extension Kit can increase overall height by 2 feet to handle taller vehicles.

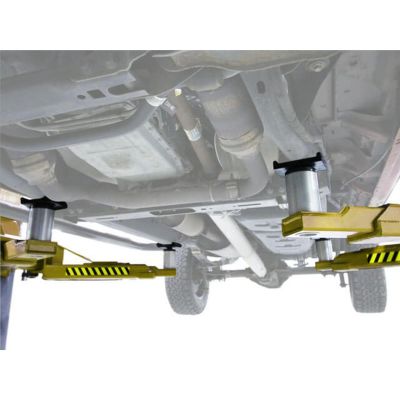

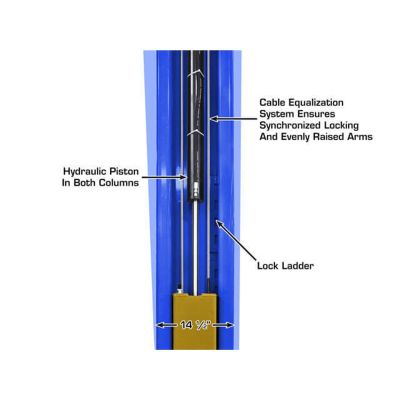

This lift features symmetric arms with professional-grade lock restraints, heavy-duty 3/8" equalization cables, and dual direct-drive hydraulic cylinders for smooth, reliable lifting. The included 8-piece truck adapter set and 4 screw-up frame adapters make this lift suitable for a wide variety of vehicle frames. The PVL15 also comes equipped with the premium ALLY Hydraulic AL2300 power unit, designed for high performance with superior electrical compliance and cooling efficiency. Like all Atlas Platinum models, it includes mounting hardware and one of the best warranties in the industry.
| Product Features |
|---|
| ALI Certified 15,000 lb. capacity overhead two-post lift |

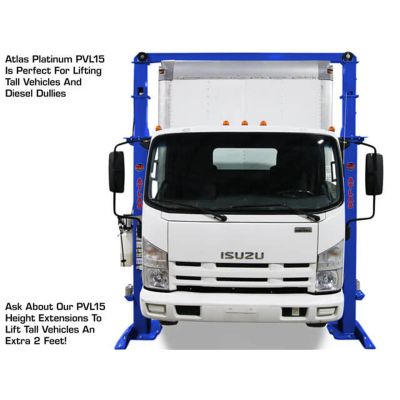

| Extra-tall 174 1/2" overall height with optional 2 ft. extension |
| Heavy-duty symmetric arms and arm lock restraints |
| Dual direct-drive hydraulic cylinders |

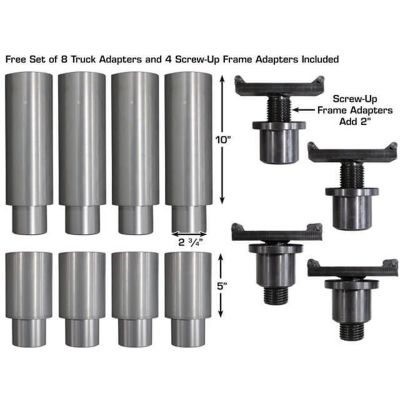

| Includes 8-piece truck adapter set and 4 screw-up adapters |
| Premium ALLY AL2300 hydraulic power unit |
| Designed for commercial-grade service shops |
Product Specifications
| Capacity | 15,000 LB. |

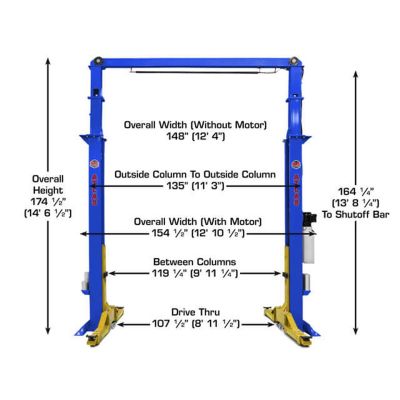

| Overall Floor Width | 148" (12' 4") |
| Outside Column to Outside Column | 135" (11' 3") |
| Maximum Lift Height (Without Adapters) | 72 3/4" |
| Maximum Lift Height (With Adapters) | 87 1/2" |
| Drive Thru | 107 1/2" (8' 11 1/2") |
| Inside Column | 119 1/4" (9' 11 1/4") |
| Column Size | 8" x 14 1/2" |
| Motor/Electrical Requirement | 220V Single Phase (30A breaker) |
| Oil Requirement | 3-5 Gal. AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each: 5", 10" |

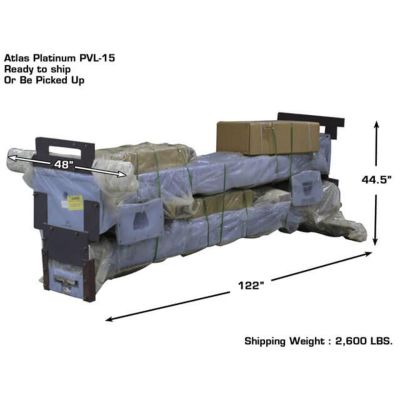

| Shipping Weight | 2,600 lbs. |
