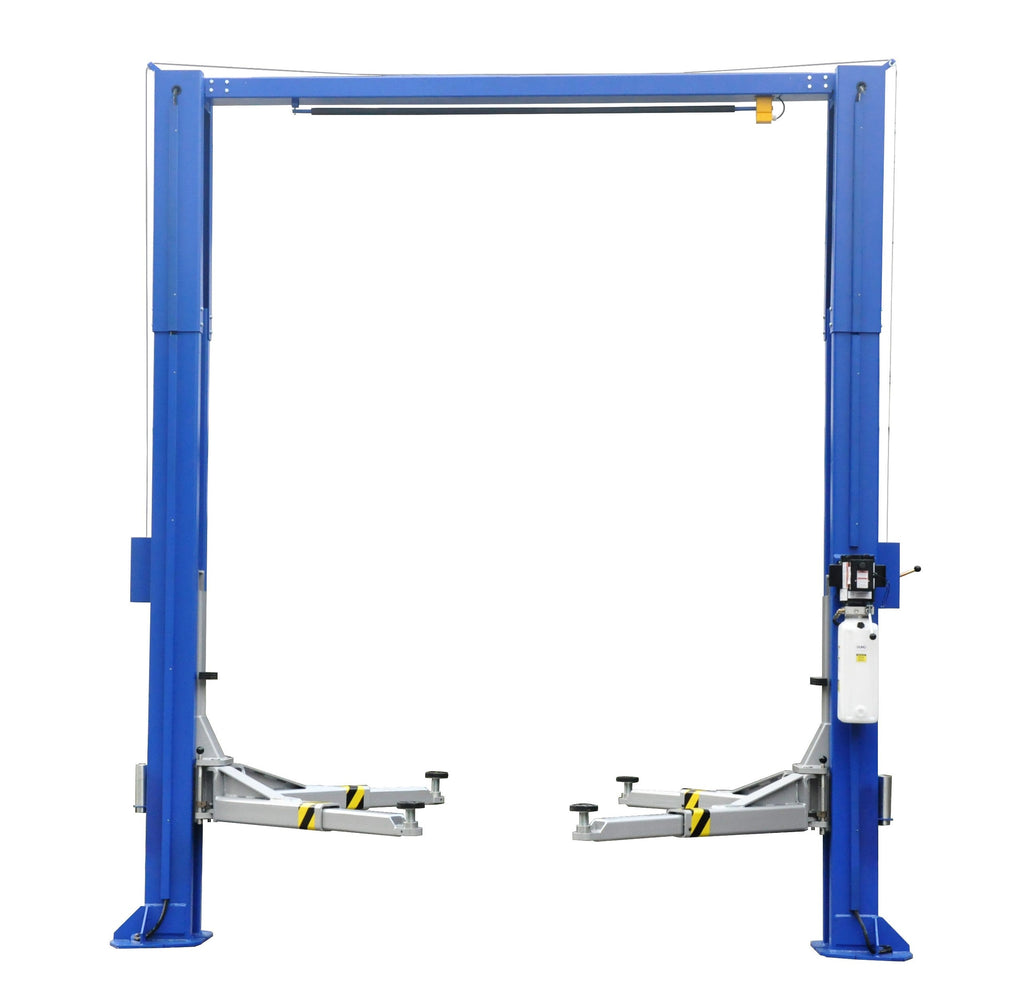

iDEAL TP12KSC-DX ALI Certified 12,000lb Clear Floor Two Post Lift
iDEAL TP12KSC-DX 12,000 lb Clear Floor Two Post Lift
The iDEAL TP12KSC-DX 12,000 lb Clear Floor Two Post Lift is engineered for heavy-duty performance, safety, and precision. ALI certified and designed for professional shops, this lift handles large trucks, SUVs, and commercial vehicles with ease. Its clear floor design provides unobstructed access for technicians, tools, and creepers, making every service job faster and more efficient.

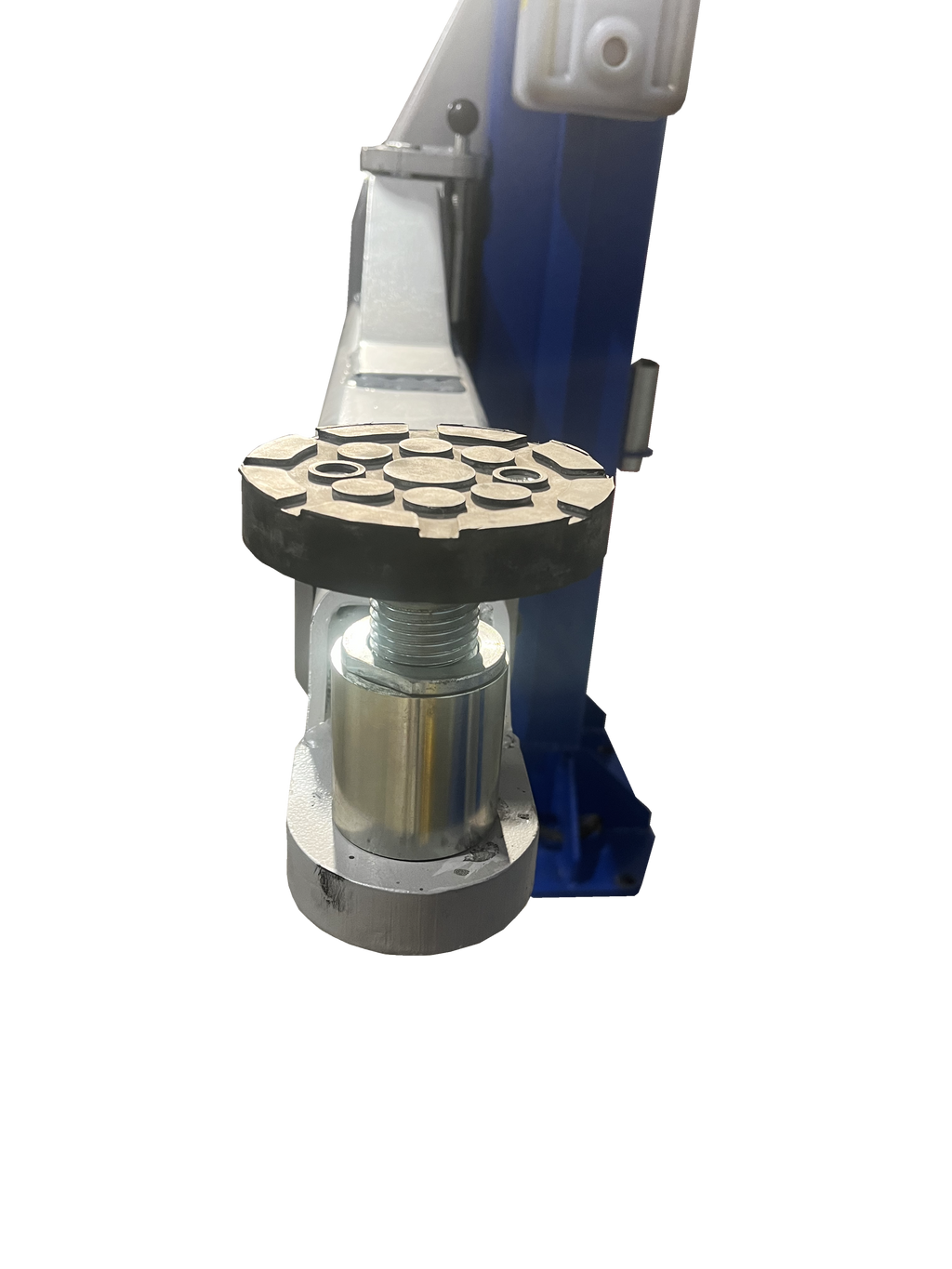

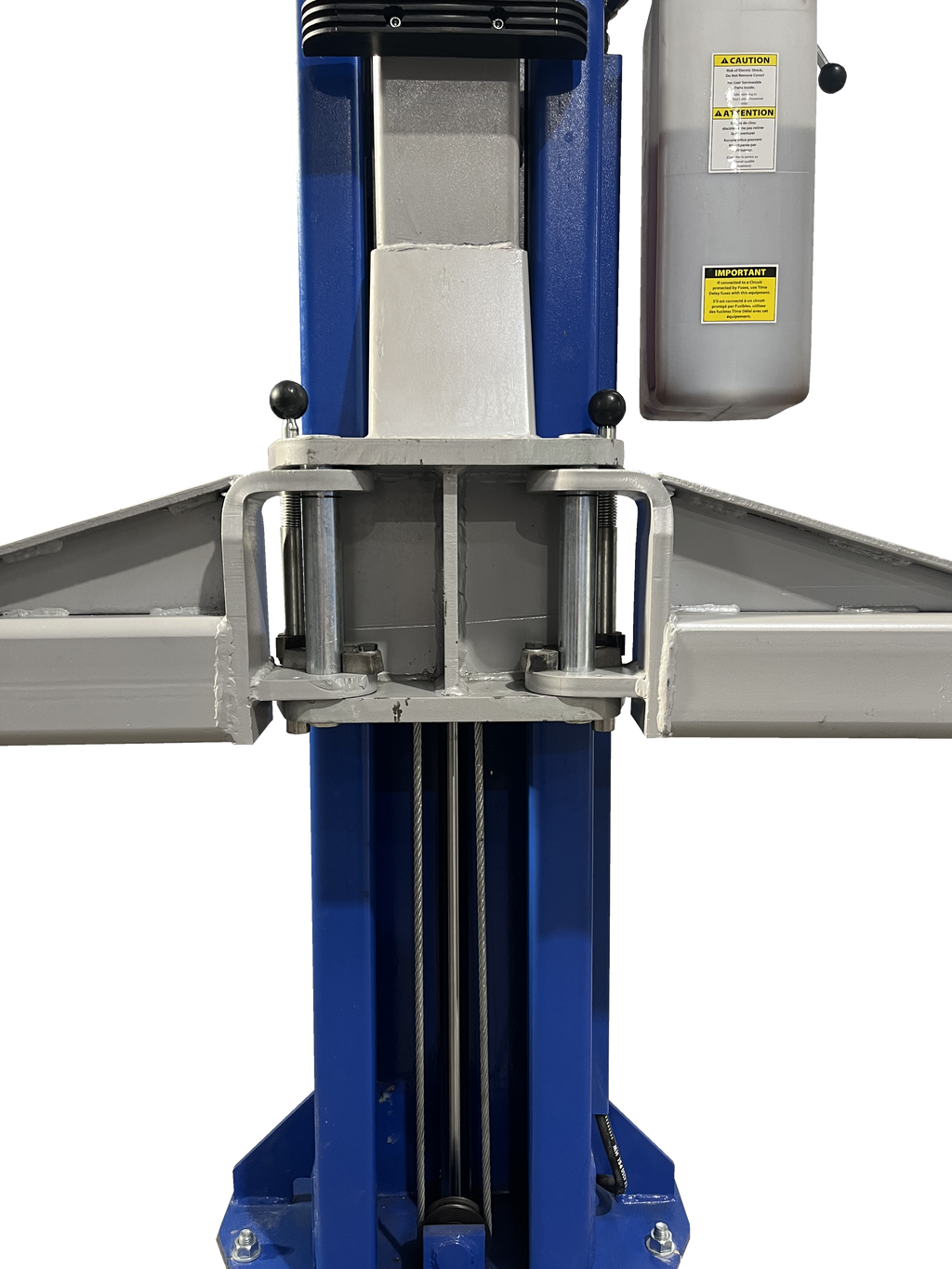

Built with symmetric arms for balanced lifting and a robust 12,000 lb capacity, the TP12KSC-DX combines reliability with convenience. The new low-profile swing arms, adjustable height swivel pads, and spin-up lift pads accommodate a wide range of vehicles and frame heights. Direct drive push cylinders and a single-point cable lock release deliver smooth, controlled lifting, while rubber door guards and heavy-duty arm restraints protect both your vehicles and your workspace.

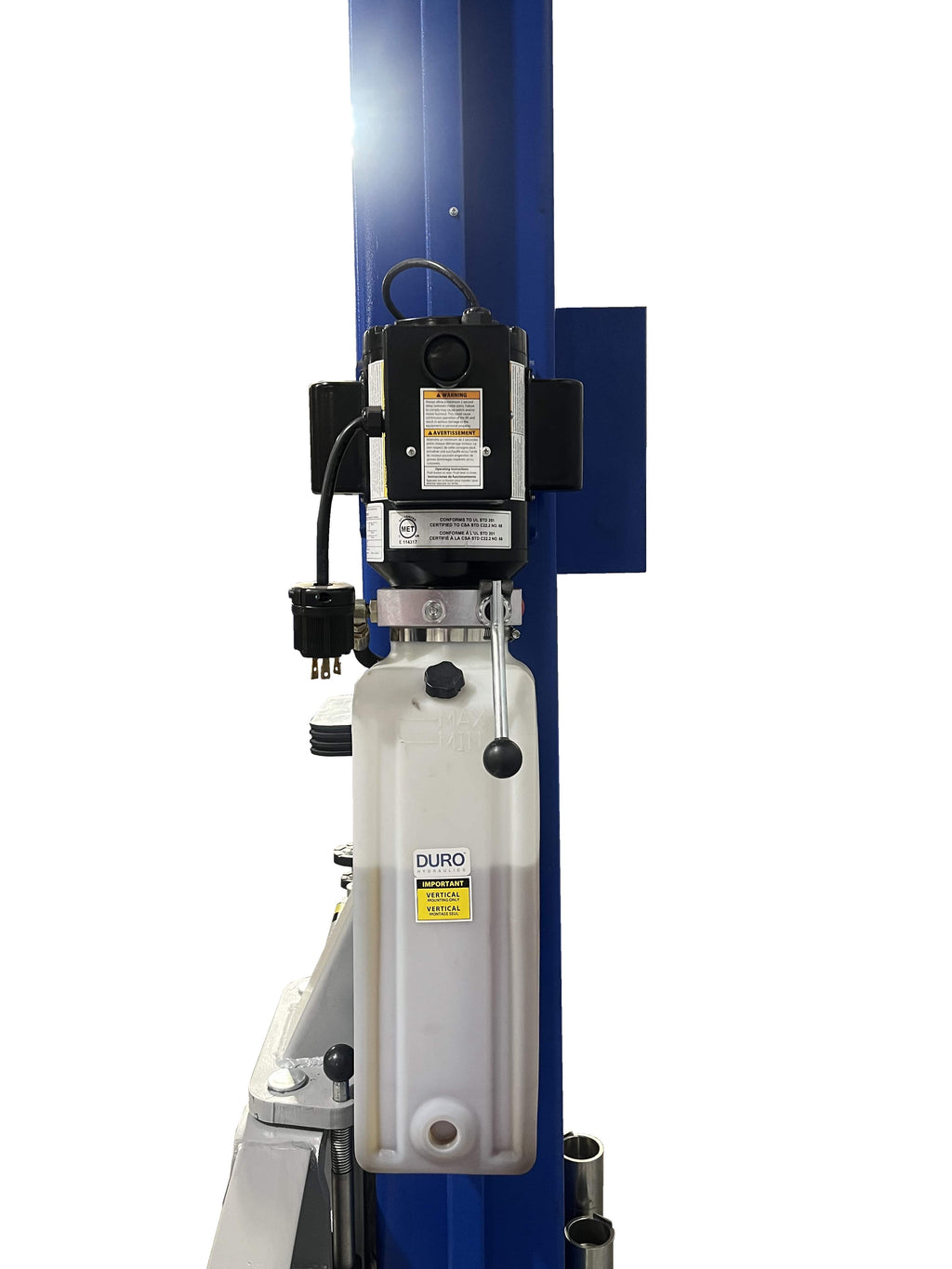

With a 75-inch maximum lift height and a generous 109-inch drive-thru clearance, this lift offers ample room to maneuver under and around vehicles. The MET, UL, and CSA certified Duro power unit ensures long-term dependable operation, and the included stackable adapters make height adjustments quick and easy. Upgrade your shop with the iDEAL TP12KSC-DX for efficiency, safety, and professional-grade performance.
| Product Features |
|---|
|
![]() |
![]() |

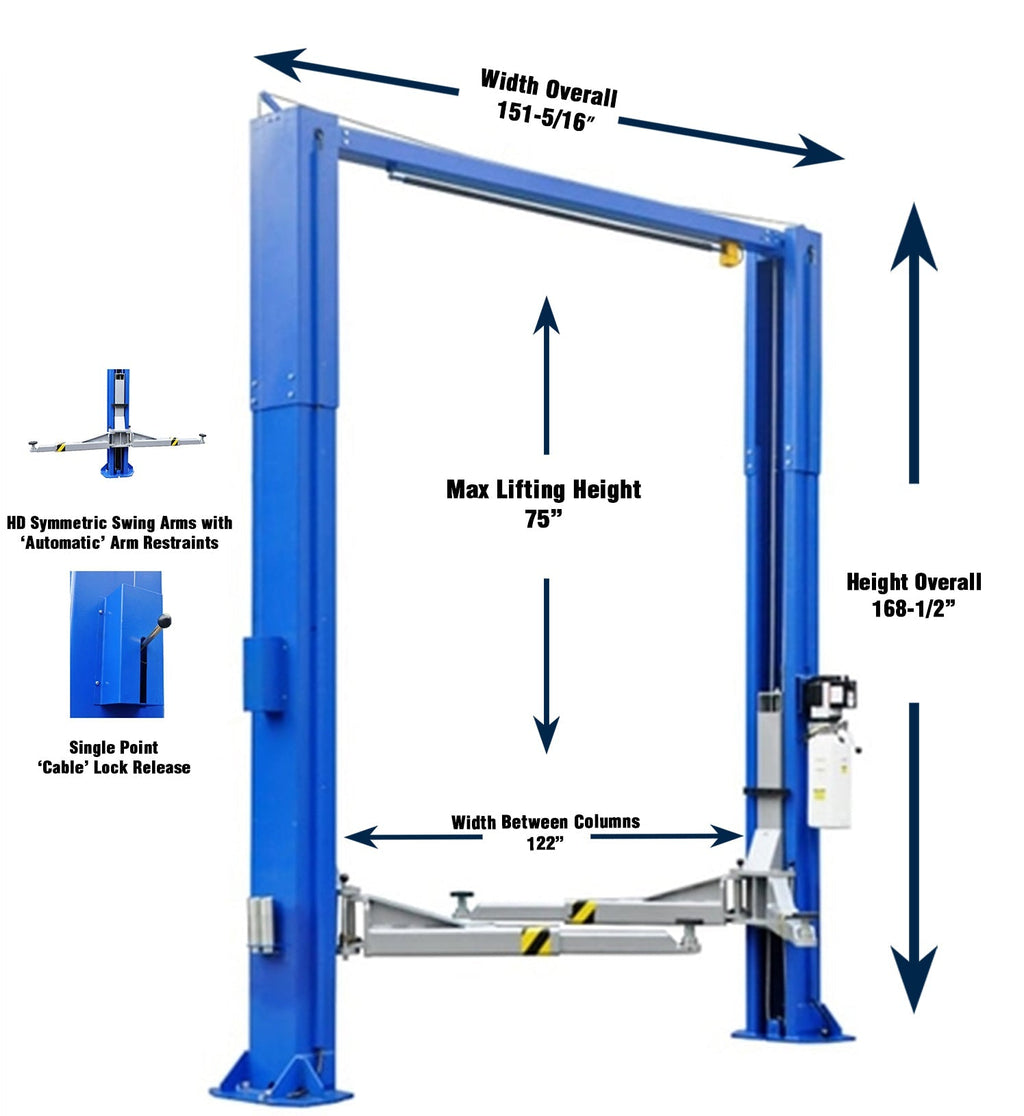

| Product Specifications | |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Overall Height | 168-1/2″ |
| Overall Width w/ Power Unit | 151-5/16″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Minimum Pad Height | 4-7/8″ |
| Drive Thru Clearance | 109″ |
| Short Arm Reach – min/max | 37-5/8″ – 57″ |
| Long Arm Reach – min/max | Same |
| Lifting Speed | 50 Seconds |
| Power Requirements | 220V – 20 AMP – 1 PH |
| Shipping Weight | 2,295 lbs |
