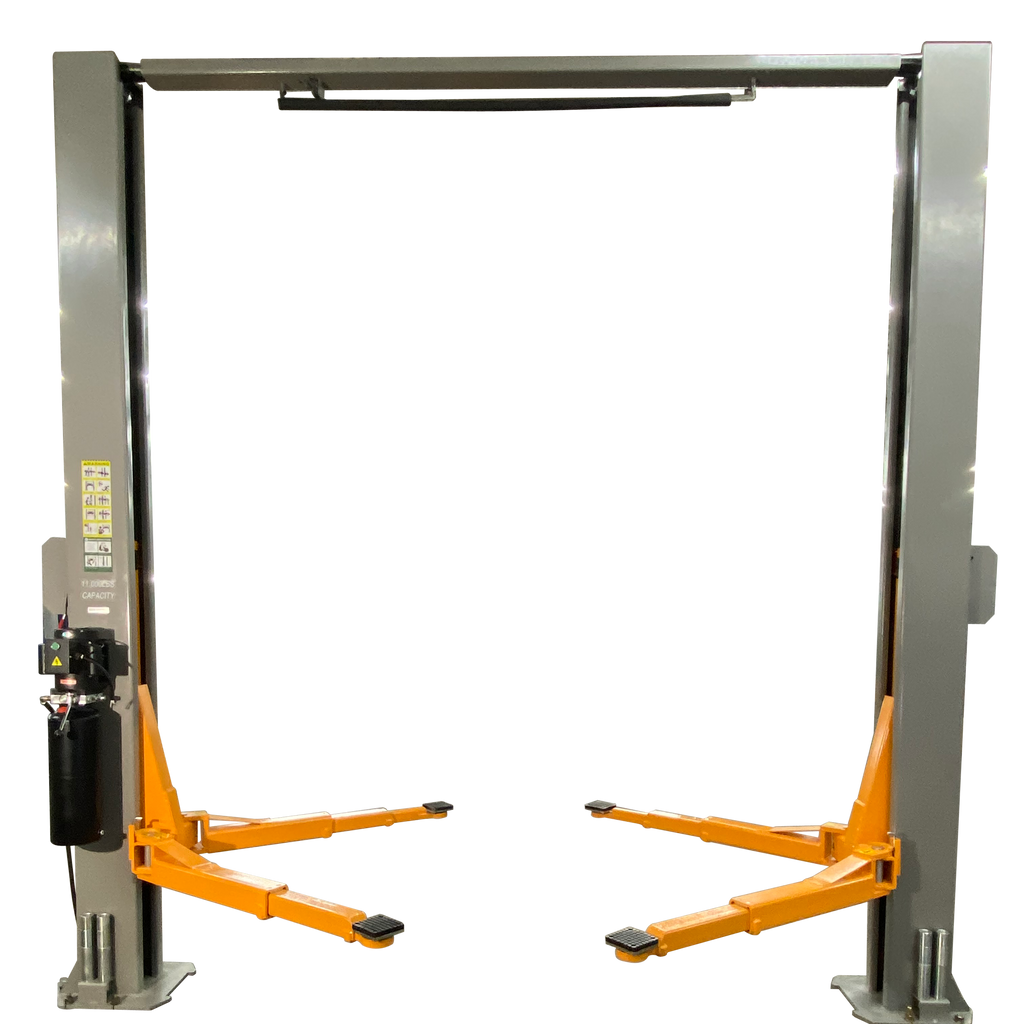

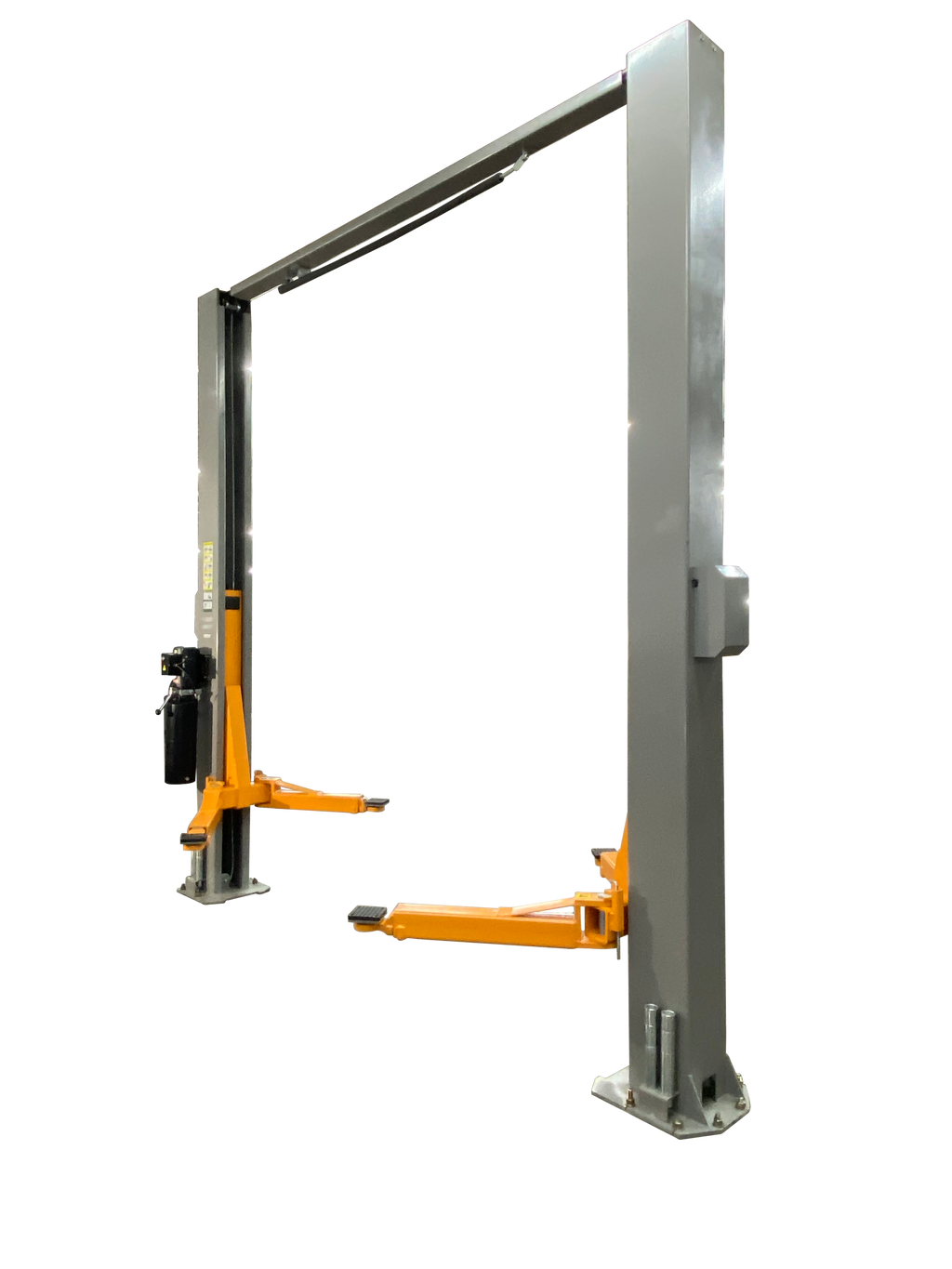

Triumph NTO-16 Two-Post Lift – Built to Lift the Heaviest Vehicles with Ease
Designed for serious strength and shop-tested performance, the Triumph NTO-15 Two-Post Auto Lift is a powerful solution for professional mechanics and commercial garages. With an incredible 16,000 lb lifting capacity, this overhead clear-floor lift is made for handling large trucks, fleet vehicles, and heavy-duty equipment with confidence.
The NTO-16’s oversized frame offers exceptional workspace dimensions, including a 165" overall height and 116" between posts — giving technicians ample clearance and easy drive-in access. The 72" lifting height allows full underbody service, while the 7" lowered height accommodates low-profile vehicles.
With truck adapters included, a single-point safety lock release, and electric safety cutoff, this lift blends simplicity with serious performance — ensuring fast, safe, and stable lifting every time.
🔧 Key Features
-
16,000 LB Capacity – Easily lifts heavy-duty trucks, vans, and commercial vehicles
-
Overhead Clear-Floor Design – Keeps your floor free of obstructions for tools and equipment
-
Single-Point Lock Release – Simplifies operator workflow while maintaining safety
-
Electric Safety Cutoff – Protects against overextension during lift operation
-
Dual Hydraulic Cylinders – Delivers fast, consistent lifting in just 40 seconds
-
Heavy-Duty Frame – Industrial-grade steel construction built for daily shop use
-
Includes Truck Adapters – Versatile setup for a wide range of vehicle chassis
-
Wide Access Dimensions – 102" drive-thru width and 116" between posts for easy positioning
📐 Product Specifications
| Specification | Detail |
|---|---|
| Lift Model | NTO-15 |
| Capacity | 16,000 lbs |
| Overall Height | 165″ |
| Overall Width | 142″ |
| Width Between Posts | 116″ |
| Drive-Thru Width | 102″ |
| Lifting Height | 72″ |
| Lowered Height | 7″ |
| Base Plate Size | 20″ x 20″ |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220V |
| Horsepower | 3 HP |
| Concrete Requirement | 4" Slab, 3,000 PSI |
| Style | Overhead, Clear-Floor |
🚛 Pickup & Shipping Options
Turbo Lifts offers nationwide freight shipping and local warehouse pickups to save time and cost. Liftgate service and delivery tracking available.
Available Pickup Locations:
-
Fort Worth, TX
-
Columbus, OH
-
Las Vegas, NV
-
Albany, NY
-
Ontario, CA
Need help coordinating freight or installation? Our support team is ready to assist.
🏁 Heavy-Duty Performance Backed by Turbo Lifts
The Triumph NTO-16 is your go-to solution for high-capacity lifting, ideal for shops working on fleet vehicles or diesel pickups. At Turbo Lifts, we deliver more than equipment — we deliver experience, support, and industry knowledge you can count on.
Order the Triumph NTO-16 from Turbo Lifts today and get the power your shop needs for serious heavy lifting.
