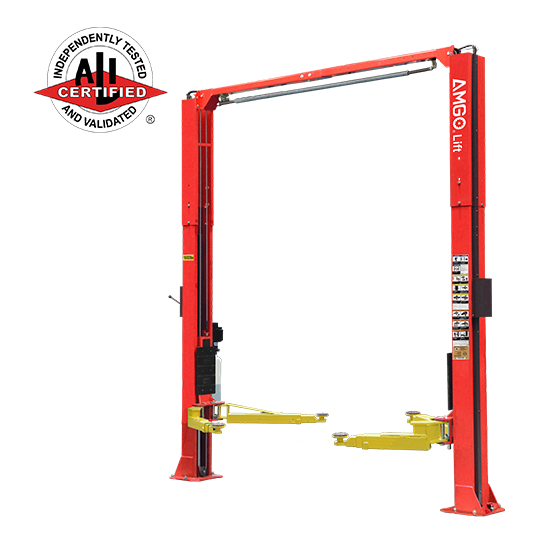

The AMGO OH-10 Two Post Lift is a professional-grade, ALI Certified overhead lift engineered for strength, efficiency, and safety. With a 10,000 lb lifting capacity and a Super-Asymmetric Arm design, this lift makes reaching vehicle lift points faster and easier while ensuring superior stability. The dual direct-drive hydraulic cylinders deliver smooth, reliable lifting action, completing a full lift in just 57 seconds. Built for professional shops and garages, the OH-10 provides unmatched durability and efficiency in a clear floor design for maximum workspace.

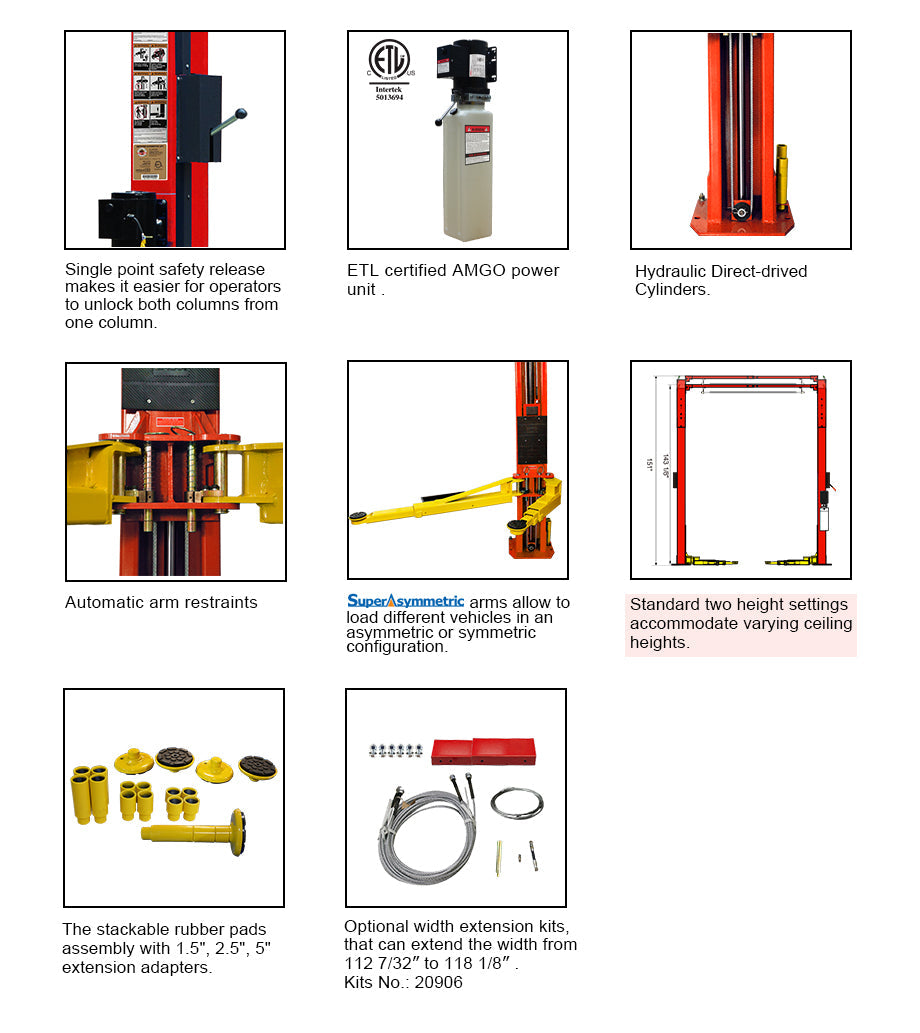

| Product Features |
|---|
|
| Product Specifications | |
|---|---|
| Model | OH-10 |
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 57 seconds |
| Max. Lifting Height (w/o extension adapter) | 72 15/32″ |
| Max. Lifting Height (w/ extension adapter) | 80 15/32″ |
| Max. Lock Height (w/o extension adapter) | 69 5/8″ |
| Max. Lock Height (w/ extension adapter) | 78 5/8″ |
| Overall Height | 142 1/8″ / 151″ |
| Overall Width | 135″ |
| Drive Thru Clearance | 99 1/2″ |
| Width Between Columns | 112 7/32″ |
| Minimum Pad Height | 3 1/2″ |
| Motor | 2.0 HP |
| Gross Weight | 1,642 lbs |
| QTY of Container | 25 Units/20′GP |
