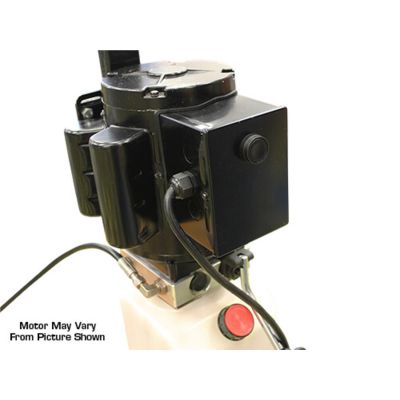

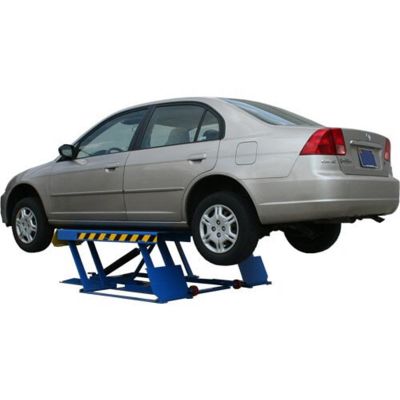

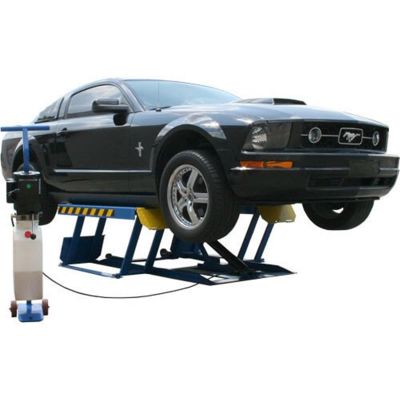

The Atlas® LR06 Portable Low Rise Scissor Lift is a compact, heavy-duty solution ideal for tire shops, detailers, and home garages that need efficient vehicle access without the footprint of a full-size lift. With a 6,000 lb. capacity and ultra-low 4” profile, this lift easily accommodates most cars and light trucks. The LR06 uses a 110V electric power unit for simple plug-and-play operation and features multiple manual safety lock positions for secure working heights. It comes equipped with a wheeled dolly system for mobility, integrated rubber lift pads, and a power unit stand, allowing the entire unit to be moved indoors or outdoors as needed. Whether you're doing wheel service, brake work, or body repair, the LR06 offers flexibility, portability, and performance in a durable, space-saving design.
| Product Features |
| 6,000 lb. lifting capacity |
| Low 4" profile fits under most vehicles |
| Portable design with wheel kit included |
| Multi-position manual safety lock system |
| Includes rubber lifting blocks and power unit stand |
| Durable heavy steel frame for stability |
| Operates on standard 110V household power |

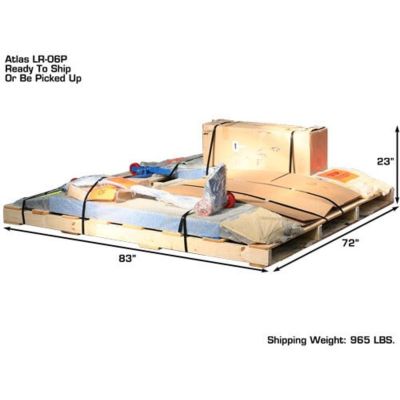

| Freight prepaid (shipping weight 965 lbs.) |
| Product Specifications |
| Capacity |
6,000 lb. |
| Maximum Lifting Height |
24" (2') |
| Locking Position Heights |
12 1/4", 18 1/2", 22 1/4" |

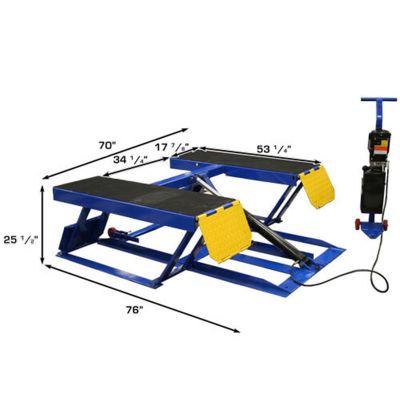

| Overall Pad Length |
53 1/4" (4' 5 1/4") |
| Overall Width |
70" (5' 10") |
| Overall Length |
79 3/4" (6' 7 3/4") |
| Lowered Height |
4" |
| Motor / Electrical Requirement |
110 volt |
| Oil Requirement |
1.5-2 Gallons AW32 or AW46 (not included) |
| Shipping Weight |
965 lb. |
| Warranty |
2 yr Structural / 1 yr Hydraulic (Parts Only) |
