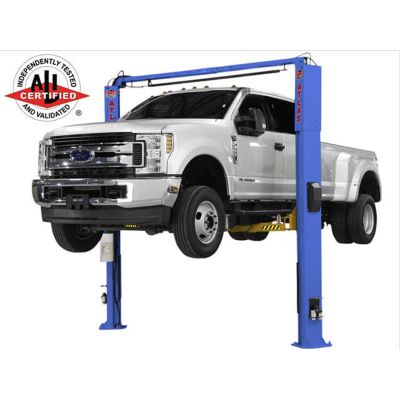

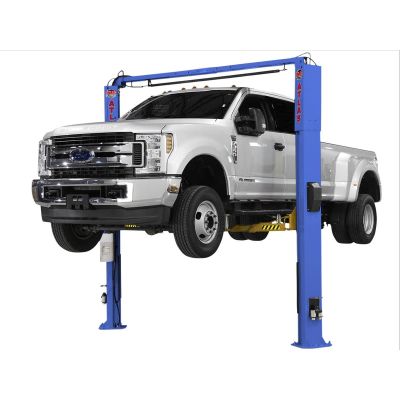

The Atlas® Platinum PVL10 is a commercial-grade, ALI Certified two-post lift with a 10,000 lb. capacity, engineered for professional automotive shops. It features the patented Double S column design, offering enhanced strength and reliability. This lift can be installed in either symmetric or asymmetric configurations, giving you flexibility based on your garage layout and vehicle types. Symmetric installation offers wider clearance for larger vehicles, while asymmetric positioning improves access to vehicle doors. The PVL10 includes three-stage front arms, padded carriages, and rubber column guards to protect vehicles during operation. With a premium ALLY AL2850 power unit, double screw-up adapters, and an included 8-piece truck adapter set, this lift delivers superior performance and value.
| Product Features |
| ALI Certified with 10,000 lb. Capacity |
| Double “S” Column Design for Increased Strength |

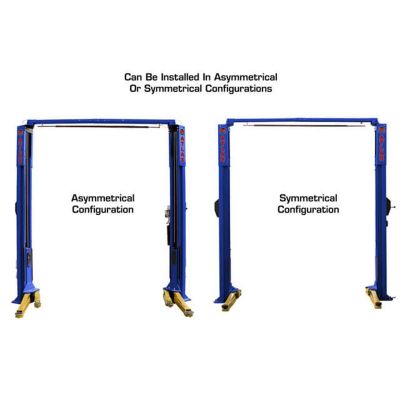

| Symmetric or Asymmetric Installation Options |
| Single-Point Lock Release System |
| 3-Stage Front Arms & 2-Stage Rear Arms |
| Rubber Padded Carriages & Column Guards |
| Includes ALLY Hydraulic AL2850 Power Unit |
| Includes Double Screw-Up Adapters & Truck Adapter Set |
| Product Specifications |
| Capacity |
10,000 LB. |

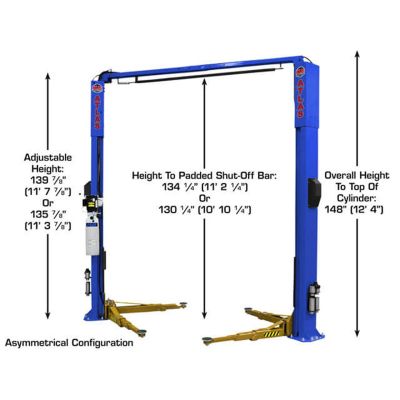

| Special Low Height |
135 7/8” (11' 3 7/8”) – Cylinders Extend to 12' 4” |

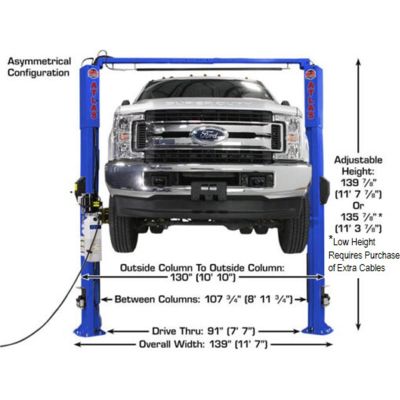

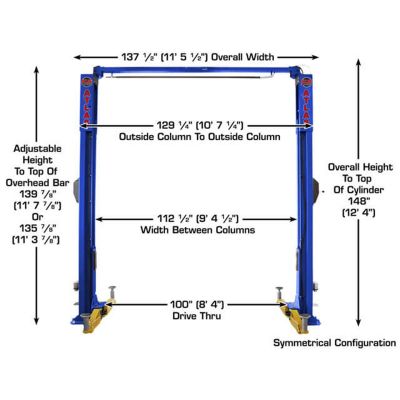

| Overall Floor Width |
139" Asymmetric / 137 1/2” Symmetric |
| Outside Column to Column |
130" Asymmetric / 129 1/4” Symmetric |

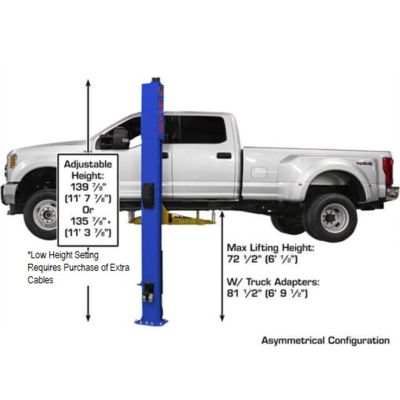

| Max Lift Height (Without Adapters) |
72 1/2" |
| Max Lift Height (With Adapters) |
81 1/2" |
| Minimum Arm Height |
4" |
| Drive Thru Clearance |
91” Asymmetric / 99 1/2” Symmetric |
| Motor / Electrical Requirement |
220V Single Phase, 30 Amp Breaker Recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight |
1,850 LBS. |
| Adapter Heights |
4 Each: 3" & 6" Extensions |
