Atlas PVL12 12K Overhead Two Post Lift - ALI Certified
$8,299.00

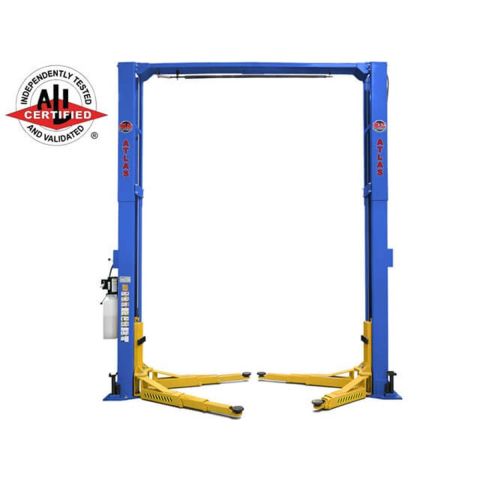

The Atlas® Platinum PVL12 is a 12,000 lb. capacity, ALI Certified overhead two-post lift engineered for heavy-duty performance in professional automotive shops. Designed with extra height and width, this commercial-grade lift accommodates everything from passenger cars to tall vans and long-wheelbase trucks. Its adjustable column height—up to 177"—offers maximum vehicle clearance, while the wide drive-thru and increased column spacing make it ideal for oversized vehicles. Built with direct-drive cylinders and a premium ALLY hydraulic power unit, the PVL12 ensures smooth, reliable lifting with reduced heat and increased torque. Featuring 3-stage symmetric arms, padded shut-off bar, and heavy-duty rubber door guards, this lift prioritizes both power and protection. Backed by industry-leading warranties and complete with truck adapters and mounting hardware, the Atlas® PVL12 is a top-tier solution for high-demand automotive service environments.
| Product Features |
|---|

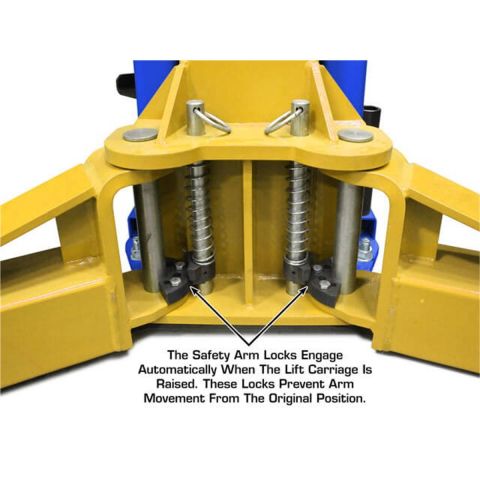

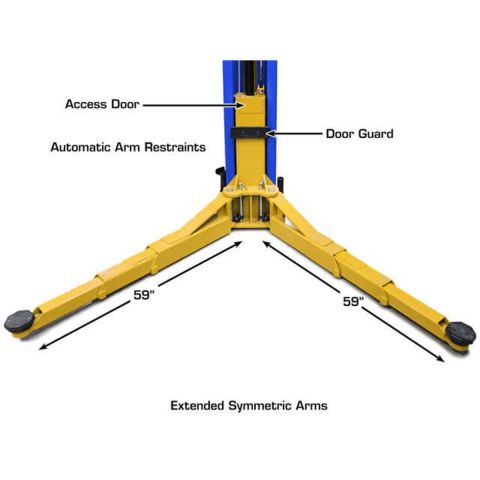

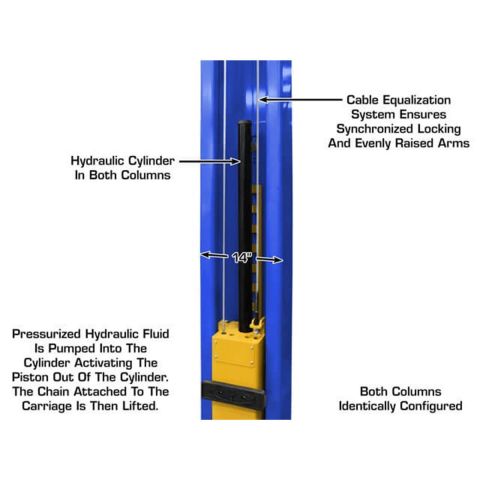

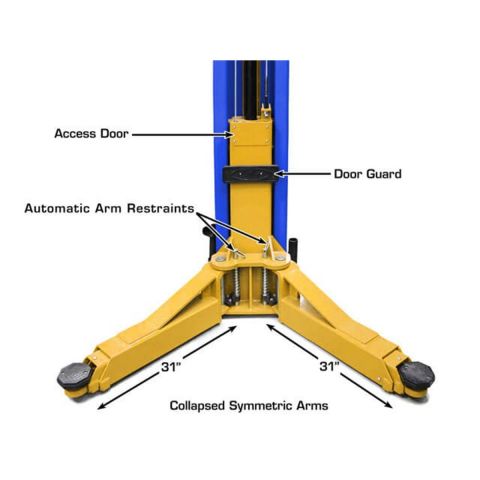

| ALI Certified Lift 12,000 lb. Capacity Commercial Grade Extra Tall & Extra Wide Design Adjustable Height: 165" or 177" 3-Stage Symmetric Arms Automatic Arm Restraints “Padded” Shut-Off Bar Thick Rubber Door Guards on Carriage Single Point Lock Release Direct-Drive Cylinders Durable Powder Coat Finish Free 8-Piece Truck Adapter Set Mounting Hardware Included Premium ALLY Powerunit (MET Certified) Shipping Weight: 2,425 lbs. 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty |
|
 |

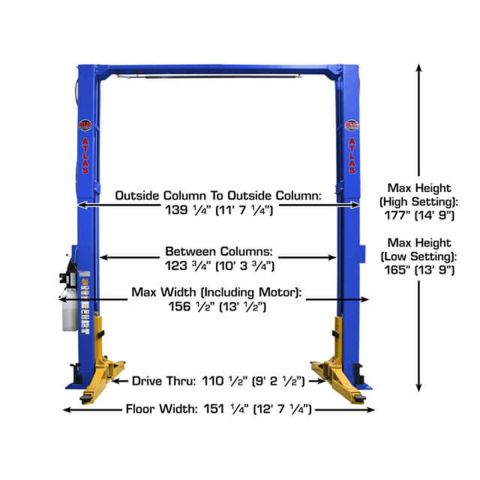

| Product Specifications | |
|---|---|
| Capacity | 12,000 LB. |
| Overall Floor Width | 150 3/8" (12' 6 3/8") |
| Outside Column to Column | 139 1/8" (11' 7 1/8") |

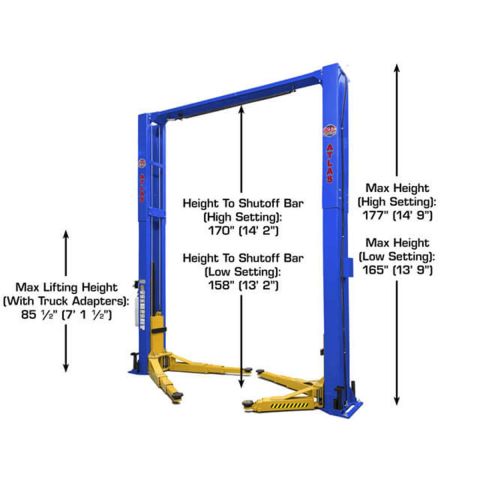

| Max Lift Height (No Adapters) | 73 5/8" |
| Max Lift Height (With Adapters) | 85 1/2" |
| Minimum Arm Height | 4 1/2" |
| Inside Column Height | 122 5/8" (10' 2 5/8") |
| Drive Thru Clearance | 109 5/8" (9' 1 5/8") |

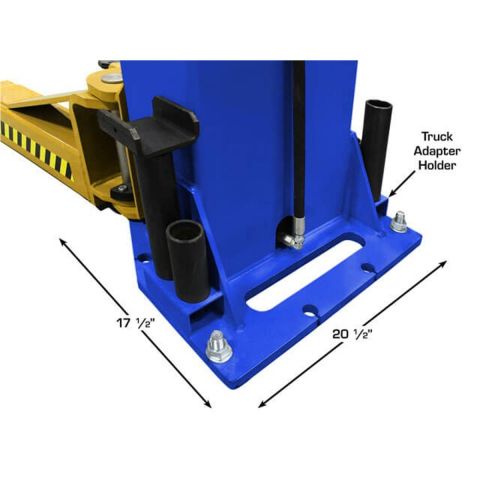

| Column Dimensions | 7 1/2" x 14 1/2" |
| Power Requirements | 220V Single Phase, 30 Amp Breaker |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |

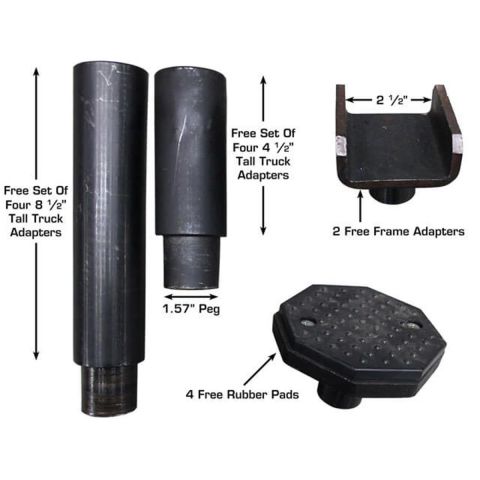

| Adapter Heights | 4 Each – 4.5", 8.5" |

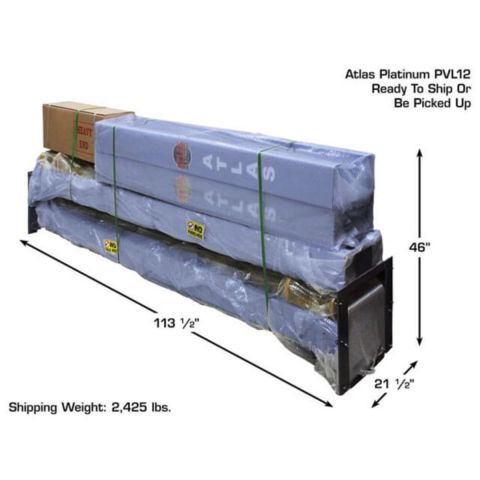

| Shipping Weight | 2,425 LBS. |
