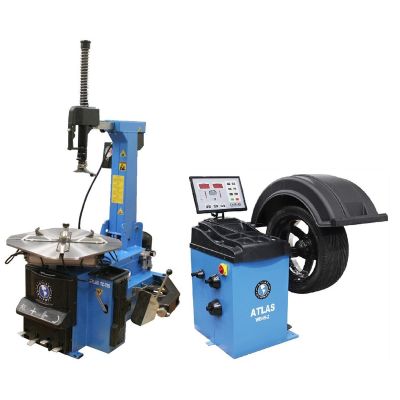

The Atlas® TC755 + WB49-2 Combo is designed for high-volume shops and professional tire service centers. This package includes the Atlas® TC755 tilt-back tire changer with a built-in bead blaster and extra-large turntable for handling oversized and custom wheels, paired with the Atlas® WB49-2 wheel balancer featuring automatic 2D data entry, split-weight capability, and an LED work light for precision balancing. Both machines are 110V powered, CE approved, and built for reliable, long-lasting performance in demanding environments.
| Atlas® TC755 Tire Changer - Product Features |

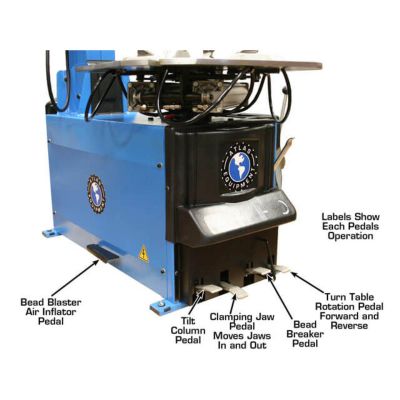

| Tilt-back column for quick and easy wheel access |
| Rim-clamp swing arm design with extra-large turntable |
| Built-in "Beadblaster" for inflating hard-to-seat tires |
| Air-operated jaws and powerful side-mounted bead breaker |
| Metal mount/demount head with replaceable plastic inserts |
| Column-mounted inflator box with pressure gauge |
| Includes lube bucket, brush, tire tool, and plastic jaw covers |
| Filter, regulator, and lubricator included (external air required) |

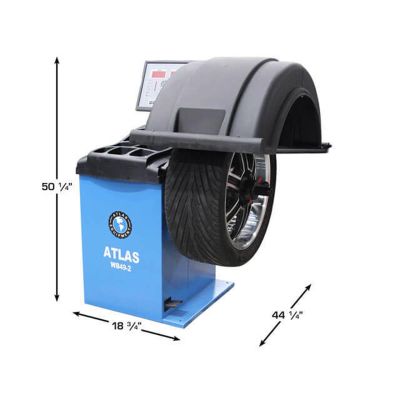

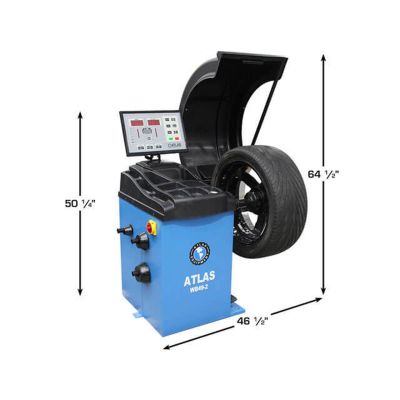

| Atlas® WB49-2 Wheel Balancer - Product Features |
| Computerized motorized spin balancer |
| Automatic 2D data entry for offset and diameter |
| Split-weight function to hide weights behind spokes |
| LED light illuminates the wheel interior for accurate weight placement |

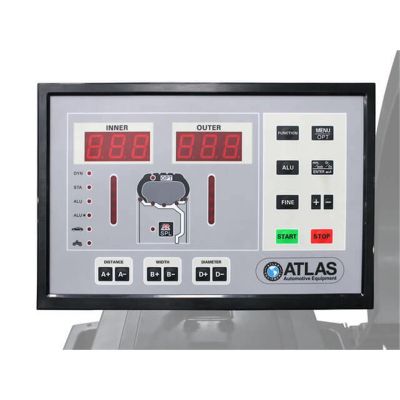

| Raised, easy-to-read display with large weight tray |
| Static and dynamic balancing modes with optimization feature |
| Includes 4 centering cones, quick-release nut, pliers, and calipers |
| Atlas® TC755 Tire Changer - Product Specifications |

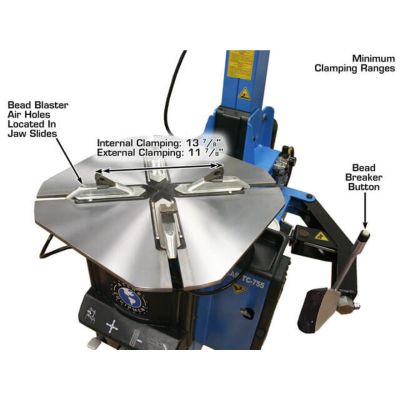

| External Rim Clamping Range |
11 7/8" - 27 7/8" |

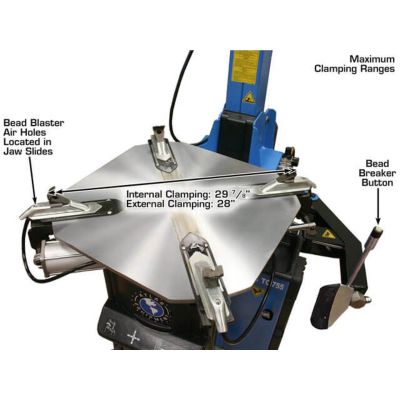

| Internal Rim Clamping Range |
13 7/8" - 29 7/8" |
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |
| Turntable Motor |
1 HP |
| Bead Breaker Force |
5,500 lbs |
| Air Requirement |
90-110 PSI (Max 140 PSI) |
| Power Requirement |
110V |
| Shipping Weight |
700 lbs |
| Atlas® WB49-2 Wheel Balancer - Product Specifications |
| Maximum Tire Diameter |
39" |
| Rim Diameter Range |
10" - 32" (Manual Entry Over 23") |
| Rim Width Range |
1 1/2" - 20" |

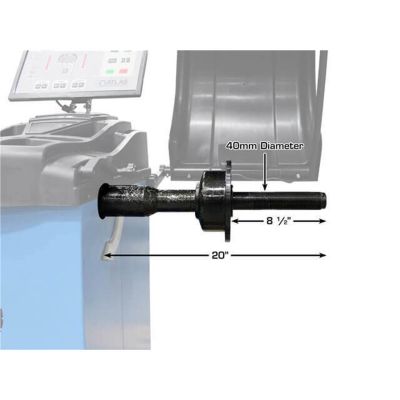

| Shaft Size |
40 mm |
| Max Wheel Weight |
150 lbs |
| Balancing Speed |
150 rpm |
| Data Entry |
Automatic 2D (3D Optional) |
| Accuracy |
1 gram |
| Power Requirement |
110V |
| Shipping Weight |
400 lbs |
