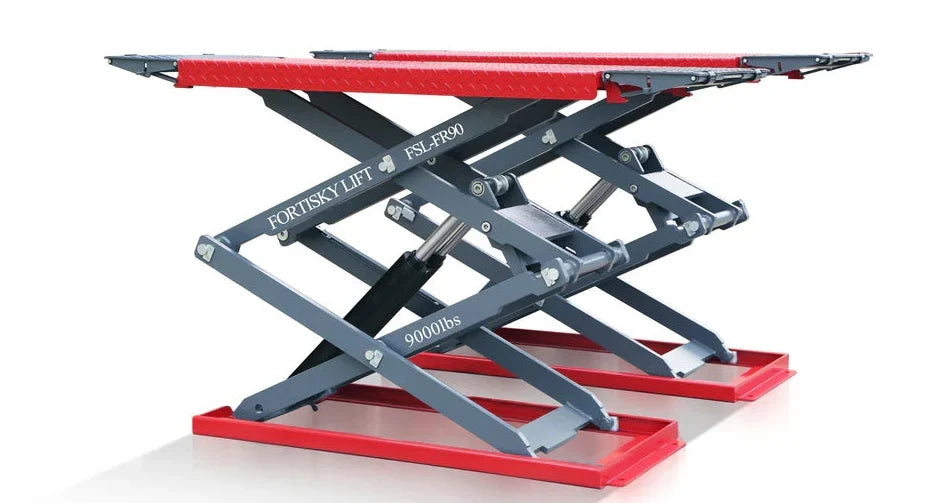

Fortisky FSL-FR90 Full-Rise Scissor Lift
The Fortisky FSL-FR90 Full-Rise Scissor Lift is a heavy-duty lift designed for professional garages and service centers. With a 9,000 lb lifting capacity and 72" maximum height, this lift features a four-cylinder design and an electric lock release system for safe and precise operation. Its durable construction, anti-surge cylinders, and self-lubricated bushings ensure long-lasting reliability, while the drive-on ramps and checkered plate platform provide stability and anti-slip performance. Ideal for indoor automotive maintenance, this lift combines power, safety, and convenience in a robust package.
| Product Features |
- 9,000 lb lifting capacity with 72" maximum height

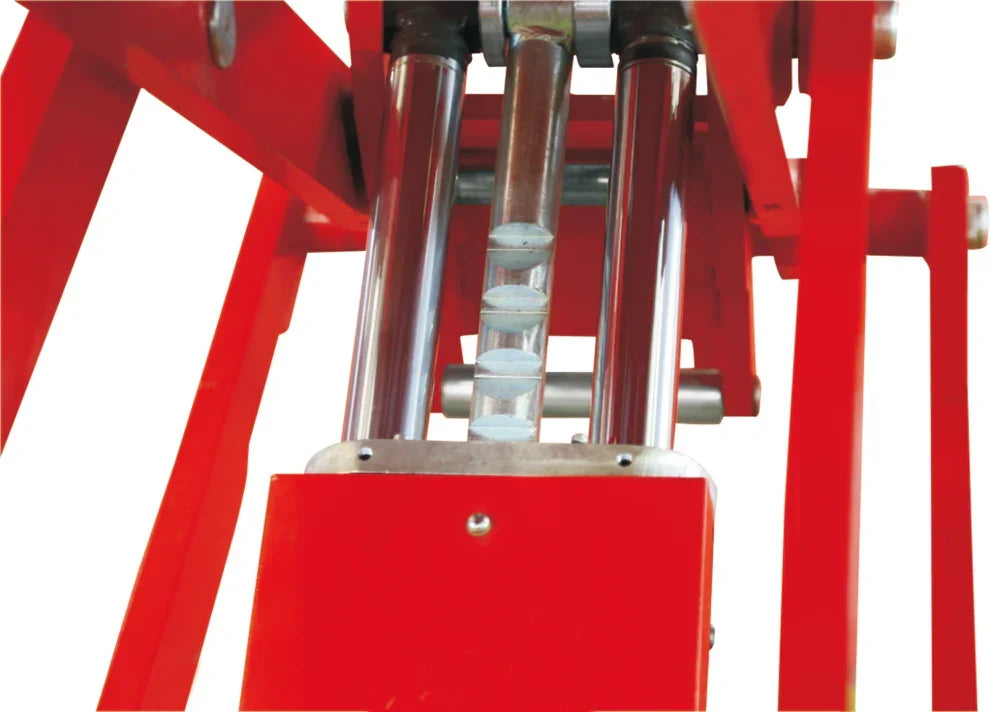

- Four-cylinder design for stable lifting
- Electric lock release system for safety and convenience

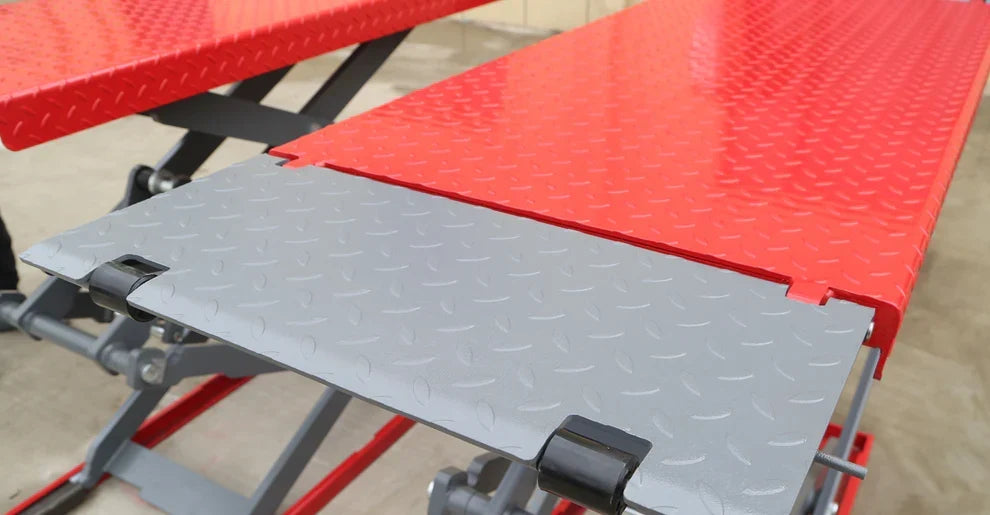

- Drive-on ramps lock into position as platform extensions
- Steady raising and lowering with low noise operation

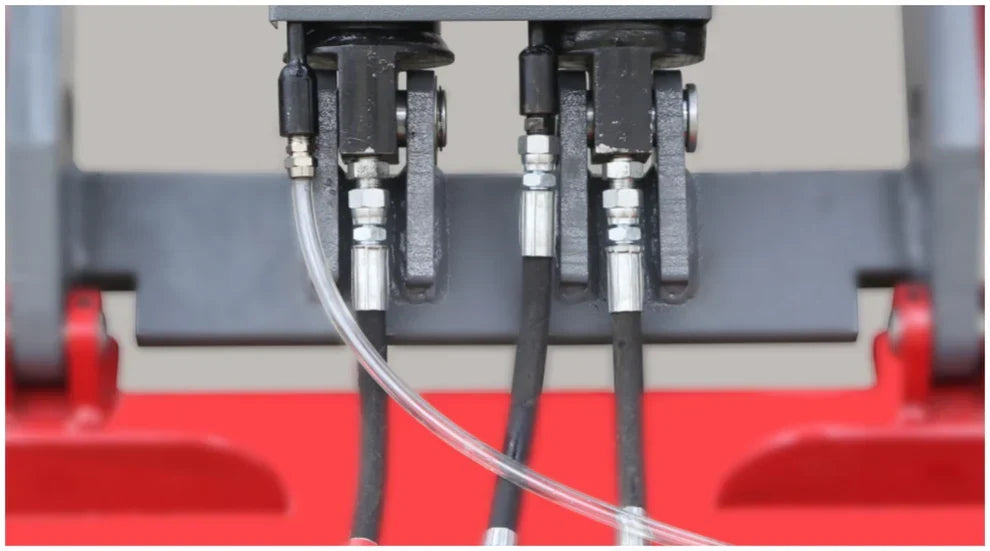

- Durable cylinders with anti-surge valves
- 24V safe control system with height limit switch

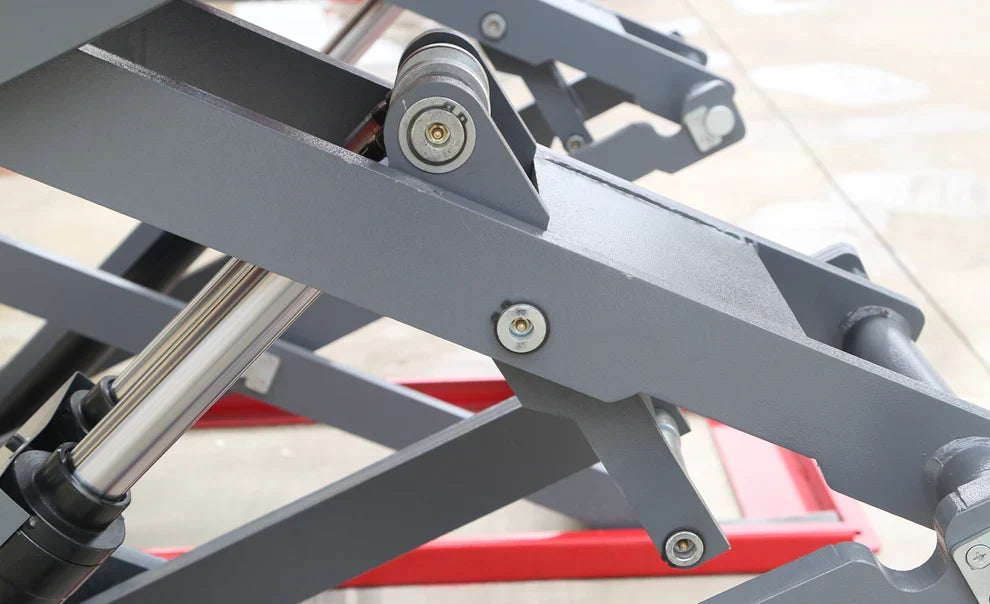

- Self-lubricated bushings and bearings for smooth operation

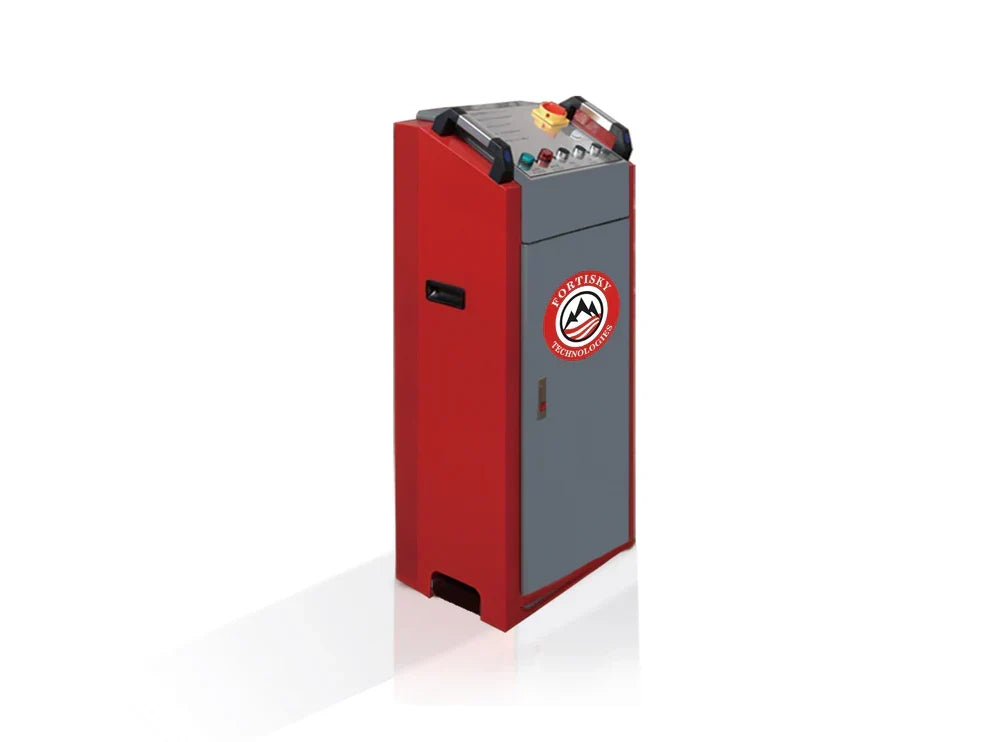

- Front and rear door control boxes for easy operation
- High-strength Q355B manganese plate arms and checkered plate upper cover for anti-slip and durability
- Powder-coated finish for corrosion resistance
|
| Product Specifications |
Details |
| Capacity |
9,000 lbs |
| Maximum Lifting Height |
72" |
| Minimum Height |
4.1" |
| Platform Length |
59" |
| Platform Width |
25.59" |
| Lifting Time |
≤50 sec |
| Lowering Time |
≤30 sec |
| Overall Length |
81" |
| Overall Width |
80" |
| Weight |
1,968 lbs |
| Power Supply |
220V, 50Hz, 1PH |
| Power |
2.2 KW |
| Noise Level |
≤70 dB |
| Rated Oil Pressure |
24 MPa |
| Air Pressure |

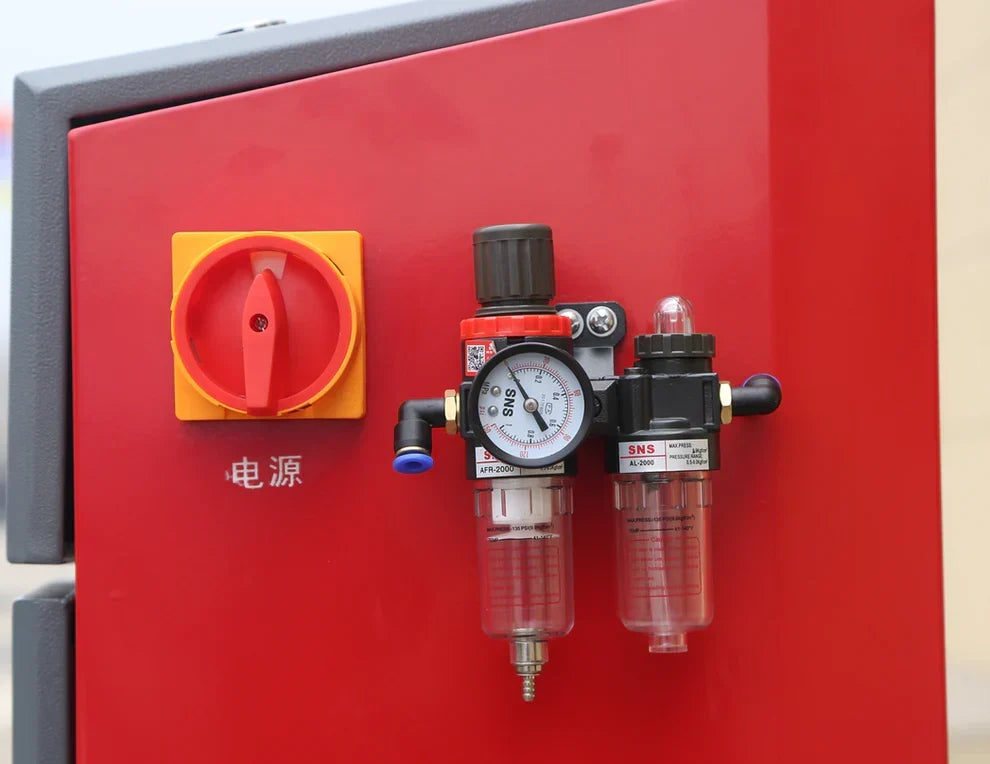

0.6-0.8 MPa |
| Installation Place |
Indoors |
