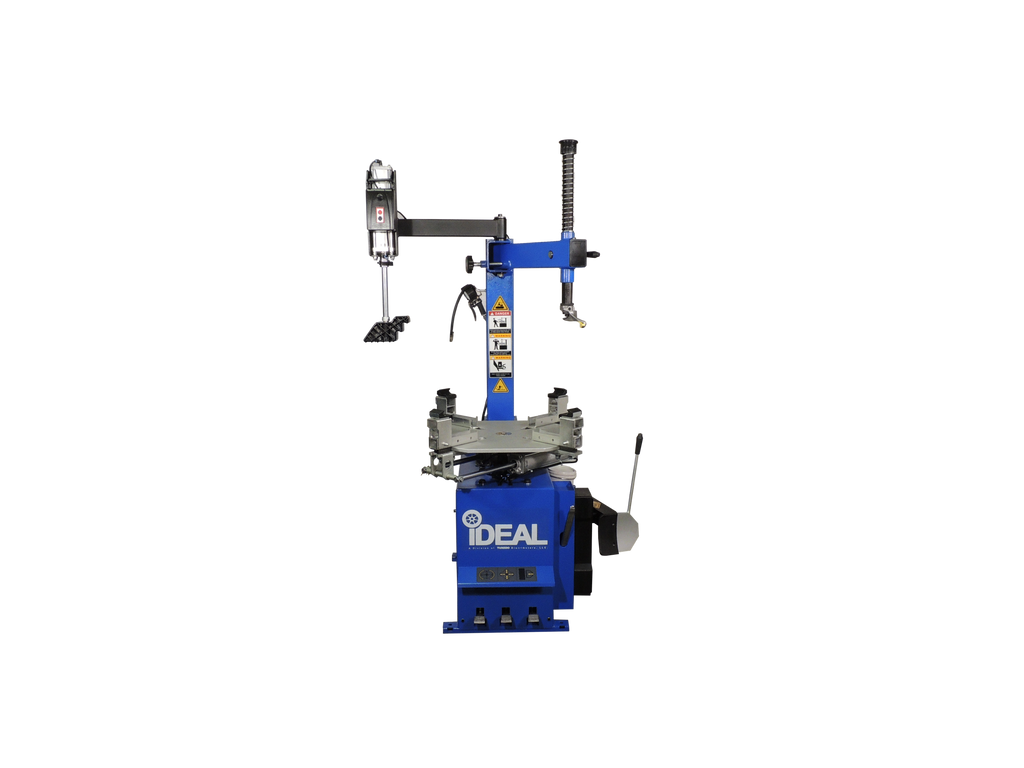

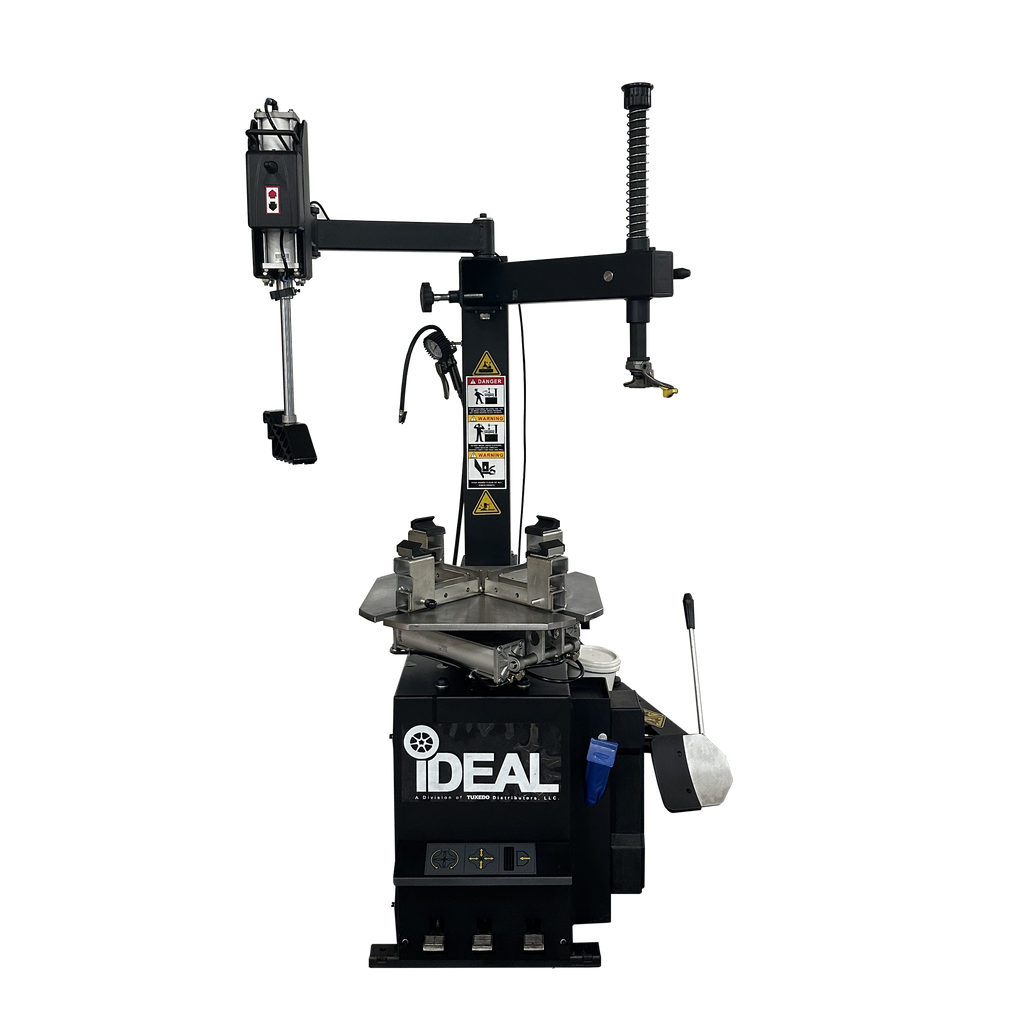

iDEAL TC-400M-B-PL230-K Motorcycle / ATV Tire Changer with Assist Arm
The iDEAL TC-400M-B-PL230-K Motorcycle / ATV Tire Changer with Assist Arm is built for technicians who demand precision, control, and power in every tire service. Designed for both motorcycle and ATV applications, this advanced machine combines the reliability of the TC-400M-B platform with the added efficiency of an assist arm—making even the toughest low-profile and stiff sidewall tires easy to handle. The powerful bead breaker, electric table rotation, and pneumatic clamping system ensure smooth, fast, and damage-free operation on wheels up to 37” in diameter. Whether you're servicing sport bikes, cruisers, or ATVs, the TC-400M-B-PL230-K delivers professional-grade performance and efficiency every time.
| Product Features |
|---|
| • Designed for both motorcycle and ATV tire service • Integrated assist arm for low-profile and stiff sidewall tires • Swing arm design for quick setup and operation • Four adjustable clamps for 6” to 24” wheel clamping range • Double-acting pneumatic cylinders provide secure, precise grip • Plastic clamp covers protect wheels from scratches and damage • High-strength bead breaker with 5,500 lb. breaking force • Electric table rotation for smooth, consistent control • Includes regulator, oiler, and water trap for clean air operation • Easy-to-use handheld inflation gun • Durable powder-coated finish built for professional shop use • Backed by iDEAL’s 1-year parts warranty |
| Product Specifications | |
|---|---|
| Max Wheel Diameter | 37" |
| Max Wheel Width | 10" |
| Outside Rim Clamp Range | 6" – 24" |
| Bead Breaker Force | 5,500 lbs |
| Working Pressure | 125 PSI |
| Power Supply | 110V – 15 Amp – 1PH |
| Shipping Weight | 530 lbs |
