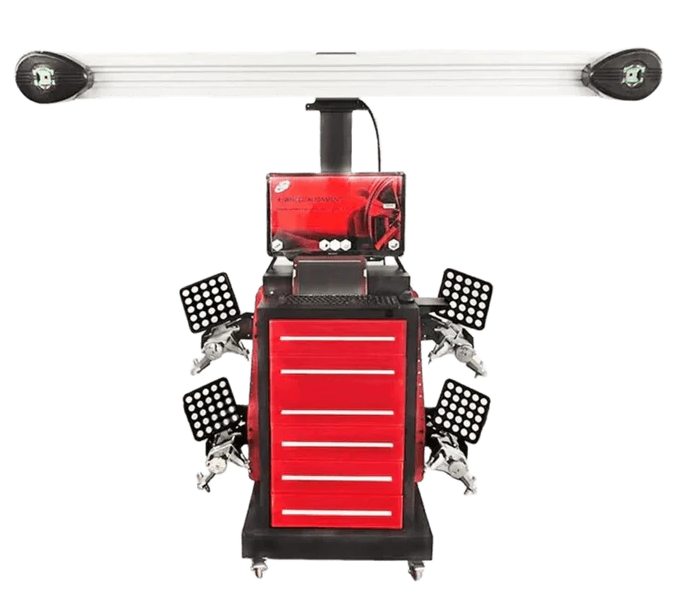

KATOOL KT-AV651 3D Wheel Alignment Machine – Efficient, Accurate, and Ready for Any Vehicle
The KATOOL KT-AV651 3D Wheel Alignment Machine is designed for repair shops that value reliability, simplicity, and precision. Built to streamline your workflow, the KT-AV651 offers broad compatibility with a wide range of vehicle sizes—from compact cars to full-size SUVs—making it a smart solution for high-volume alignment service.
With a versatile power range (100–240V) and a working temperature tolerance from 41°F to 104°F, this unit is ideal for various shop environments. The system supports tire diameters up to 31.5 inches, wheelbases up to 82.6 inches, and track widths up to 177 inches. Designed for 2-post and scissor lift applications, the KT-AV651 makes precise alignments easy and efficient.
No calibration is required during installation, and unlimited vehicle memory ensures you’re always ready to service the latest models. With included hardware like a 30” screen, tablet, mouse, keyboard, printer, USB drive, and Wi-Fi connectivity, the KT-AV651 is a plug-and-play solution that delivers instant value. You'll also receive free annual database updates, keeping your system current with new vehicle specs from U.S., European, and Asian manufacturers.
Key Features
-
3D Wheel Aligner designed for 2-post and scissor lift applications
-
Wide vehicle compatibility – tire diameters up to 31.5", wheelbases up to 82.6"
-
No calibration required during setup
-
Unlimited memory for vehicle specs
-
Includes 30” display, tablet, printer, mouse, and keypad
-
Syncs with smartphones and tablets via Android/iOS apps
-
Real-time alignment monitoring on smart devices
-
Wi-Fi and USB connectivity included
-
Free yearly database upgrades
Specifications
| Specification | Value |
|---|---|
| Power Supply | 100–240V, 50/60 Hz, 1 Phase |
| Working Temperature | 41°F – 104°F (5°C – 40°C) |
| Cameras | 2 |
| Tire Diameter Range | 9.8” – 31.5” (250–800 mm) |
| Wheelbase Range | 62.9” – 82.6” (1.6 – 2.1 m) |
| Track Width Range | 70.9” – 177.1” (1.8 – 4.5 m) |
| Product Weight | 440.9 lbs (200 kg) |
| Shipping Weight | 529.1 lbs (240 kg) |
| Shipping Dimensions | 29.9”×48”×47.2” / 110.2”×12.6”×15.7” |
| Warranty | 1-Year Limited Warranty |
Includes:
✔ 30” Display + Tablet
✔ Mouse + Keypad
✔ Printer
✔ USB Drive + Wi-Fi Device
✔ Android & iOS App Support
