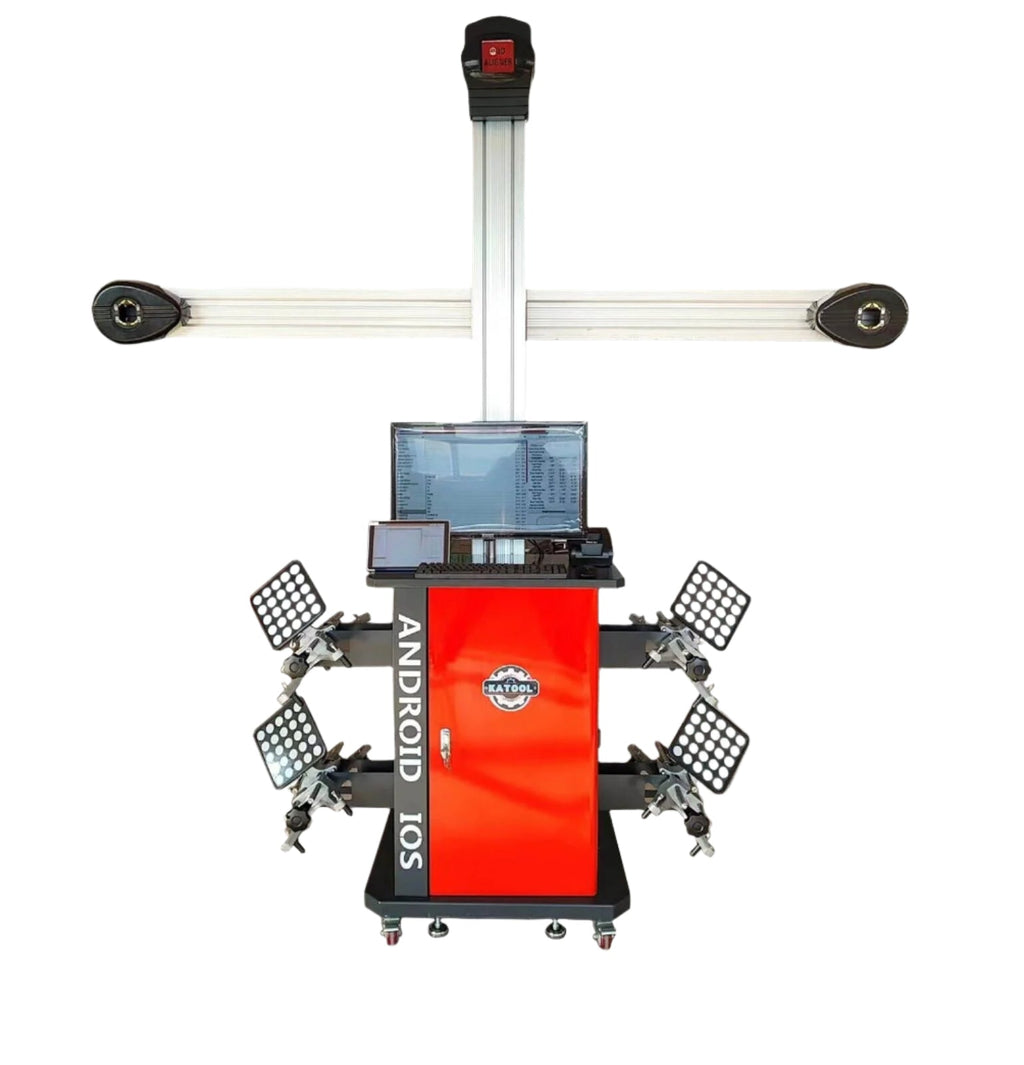

KATOOL KT-AV9 Fully Automatic 3D Wheel Alignment Machine – Precision Made Easy
The KATOOL KT-AV9 brings full automation to the world of 3D wheel alignment. Designed for use with both 2-post and scissor lifts, this advanced system simplifies alignments with smart technology, intuitive controls, and total flexibility. With no calibration required during installation, and unlimited memory for vehicle specifications, the KT-AV9 is ready to work straight out of the box.

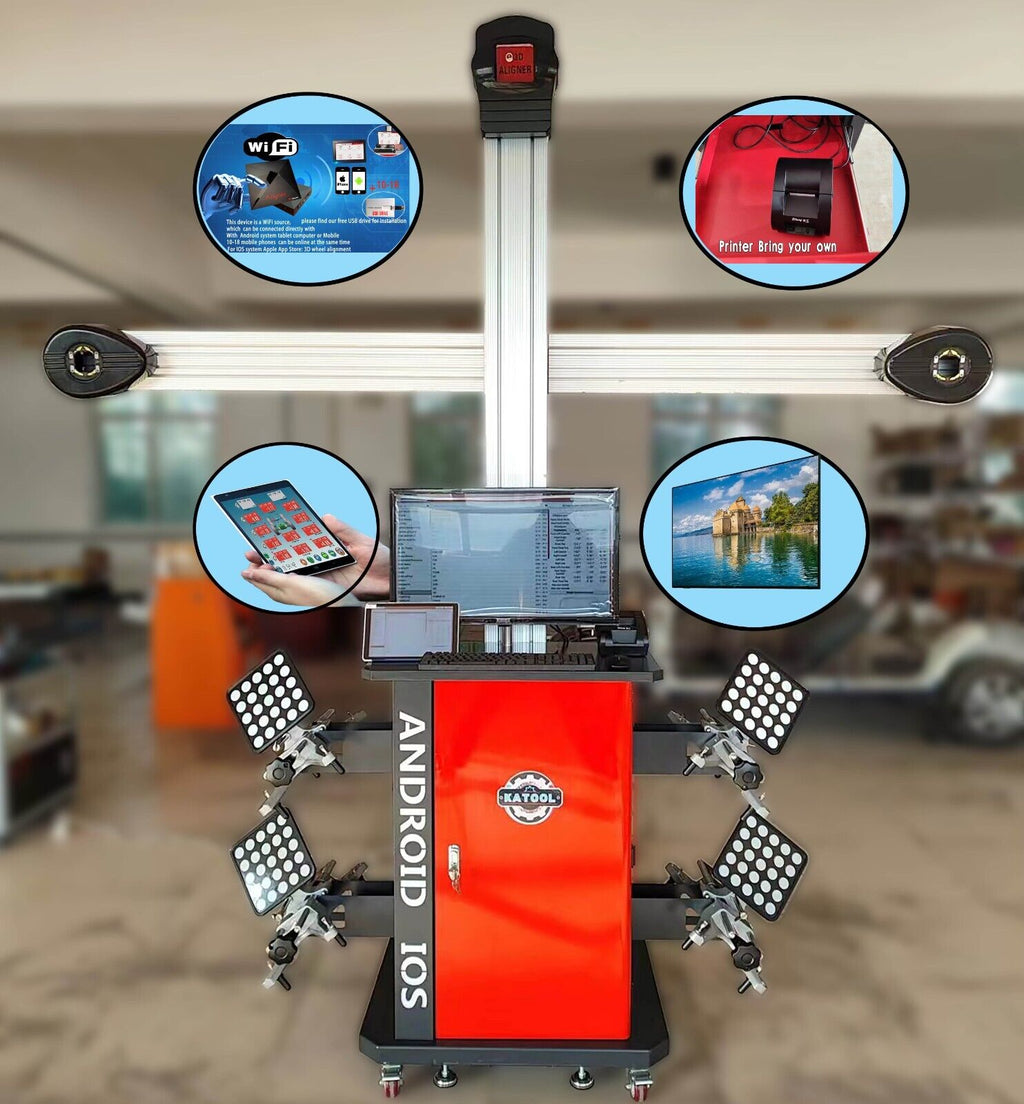

This mobile alignment system includes a 30" display, tablet, mouse, keypad, and printer, giving you full control and visibility. Android and iOS compatibility ensures seamless use across devices, while built-in Wi-Fi and USB support make data transfer easy. Customers and technicians can monitor alignment readings in real time using smartphones or tablets, and the post height tracks automatically via remote control. Yearly database updates are included, keeping your system current with all major US, European, and Asian vehicle models.
If you're looking to streamline workflow, minimize setup, and increase shop efficiency with high-end precision—this is the tool.
Key Features
-
Fully automatic operation with remote-controlled post movement
-
Works with 2-post and scissor lifts
-
No calibration required during setup
-
Unlimited memory for vehicle data
-

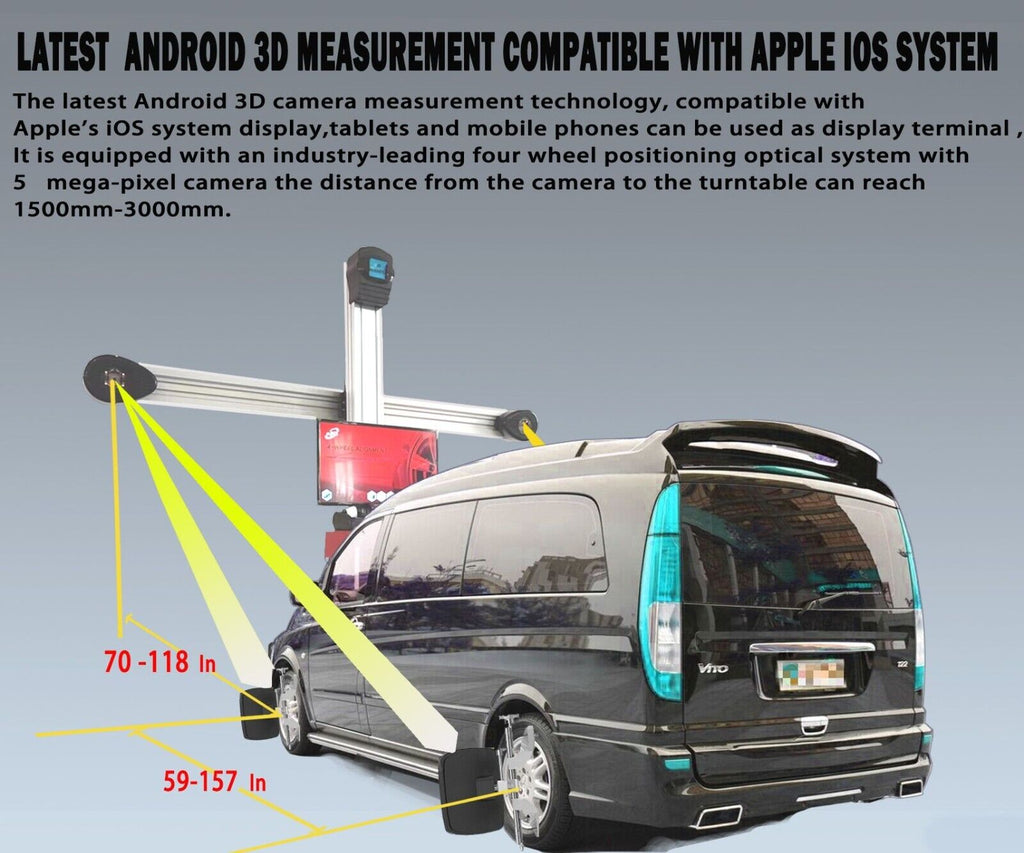

Real-time alignment view on smartphones and tablets
-
Android & iOS compatible software
-

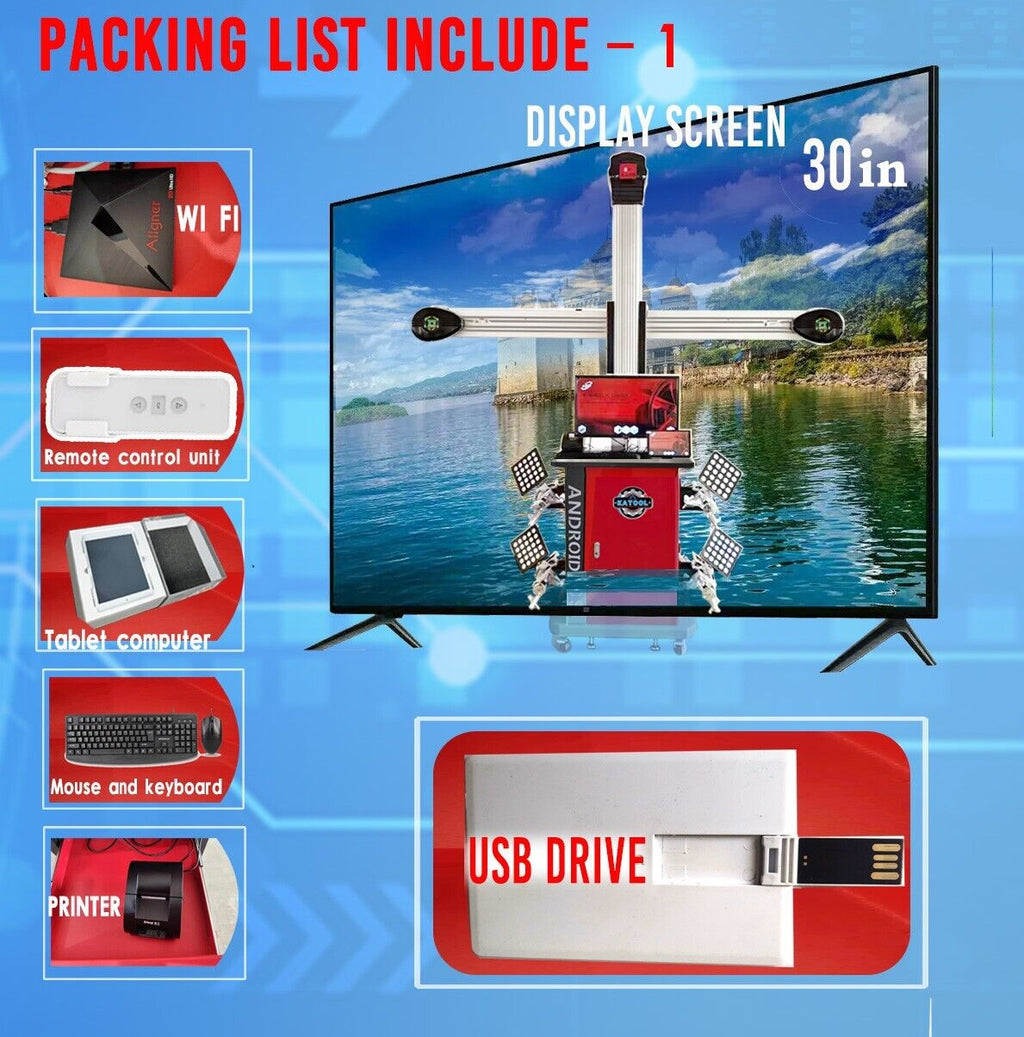

Includes 30" screen, tablet, keypad, mouse, and printer
-
Free yearly vehicle database upgrades
Specifications
| Specification | Value |
|---|---|
| Power Supply | 100–240V, 50/60 Hz, 1 Phase |
| Working Temperature | 41°F–104°F (+5°C to +40°C) |
| Total Cameras | 2 |
| Tire Diameter Range | 9.84"–31.5" (250–800 mm) |
| Wheelbase Range | 62.99"–82.67" (1.6–2.1 m) |
| Track Width Range | 70.87"–177.17" (1.8–4.5 m) |
| Product Weight | 440.92 lbs (200 kg) |
| Shipping Weight | 529.11 lbs (240 kg) |
| Shipping Dimensions (Box 1) | 39.76" x 36.61" x 48.47" (1010×930×1230 mm) |
| Shipping Dimensions (Box 2) | 110.24" x 15.75" x 15.75" (2800×400×400 mm) |
| Warranty | 1-Year Limited |
Installation Note: The KT-AV9 installs quickly on a level surface with clear vehicle access. Just plug it in, mount the cameras, and you're ready to go—no calibration required.
