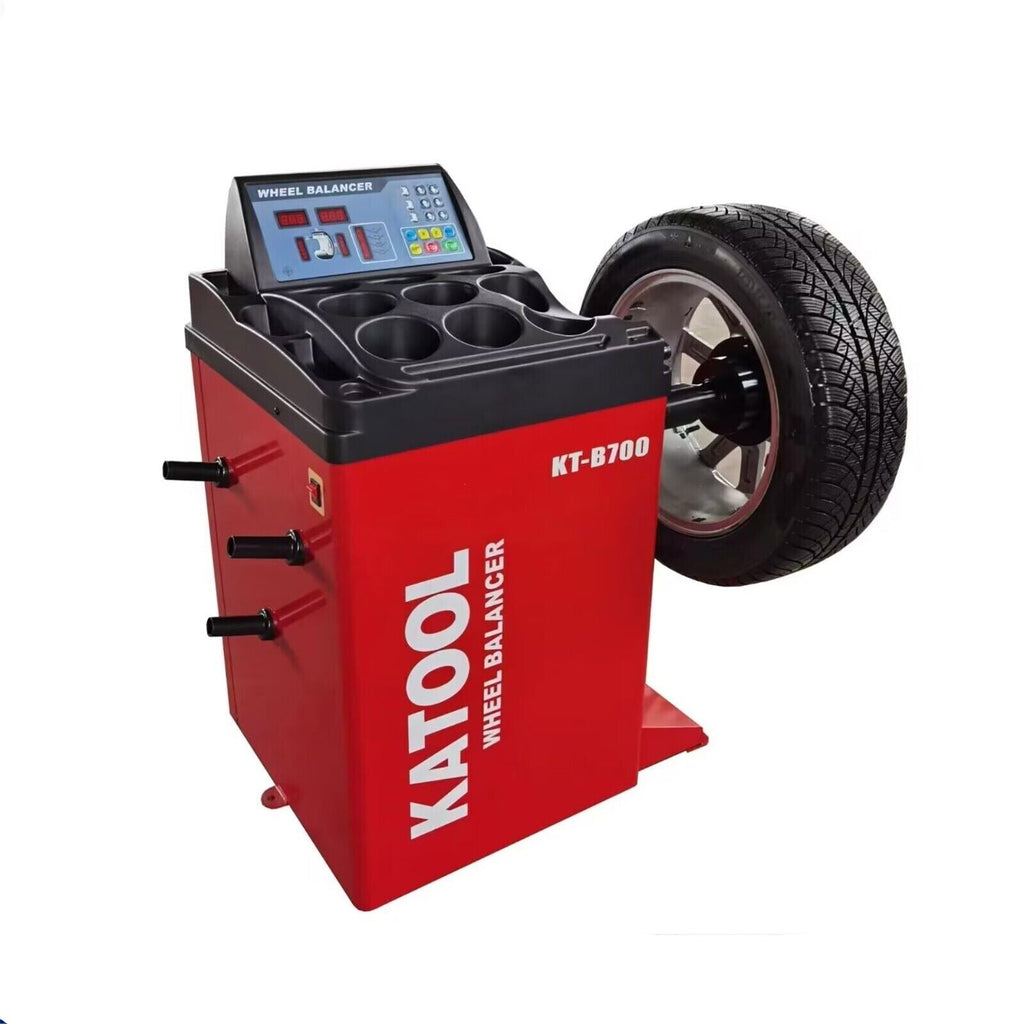

KATOOL KT-B700 Wheel Balancer
Enhance precision and speed in your shop with the KATOOL KT-B700 Wheel Balancer — a high-performance solution built for durability, accuracy, and reliability. Crafted with a heavy-duty 3mm-thick steel body and reinforced with 8mm side and bottom panels, the KT-B700 is designed to reduce vibration and maintain sensor stability throughout every balance cycle.
Engineered for professionals, this balancer features a high-quality motor with pure copper windings for increased power, superior heat dissipation, and extended service life. The 36mm shaft thread has been quench-treated for additional strength, while the computer board is built using advanced welding tech that’s moisture-proof, dustproof, and antistatic — ensuring long-lasting and consistent performance.
Designed for a range of wheel types, the KT-B700 offers multiple balance modes, user-selectable units (Ounce/Gram, MM/Inch), and a user-friendly double-sided self-calibration system for effortless setup. Optional features like a wheel guard and extended shaft offer even more flexibility for high-volume garages.
| Key Features |
|---|
| Heavy-Duty Construction – 3mm-thick steel body with 8mm base and side panels for vibration resistance and precision |
| Reliable Motor – Pure copper windings for power, efficiency, and longevity |

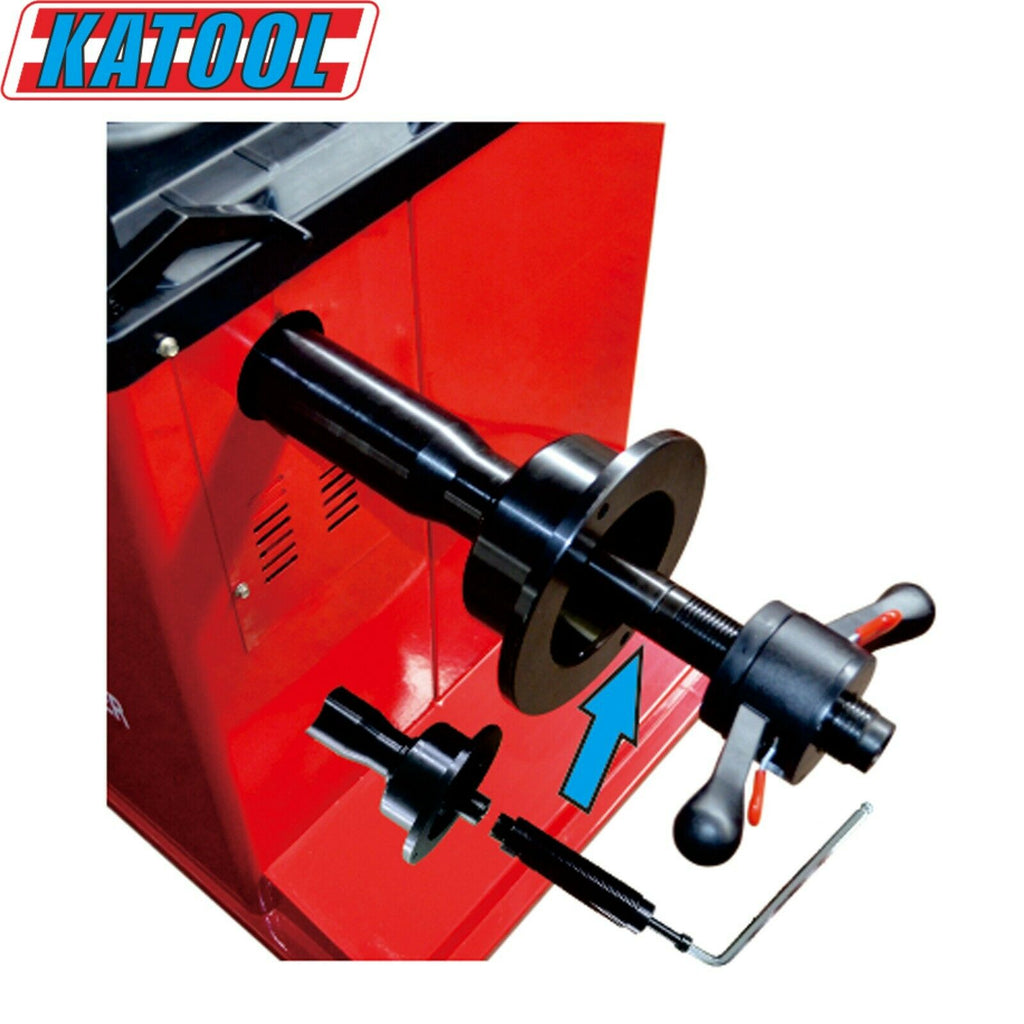

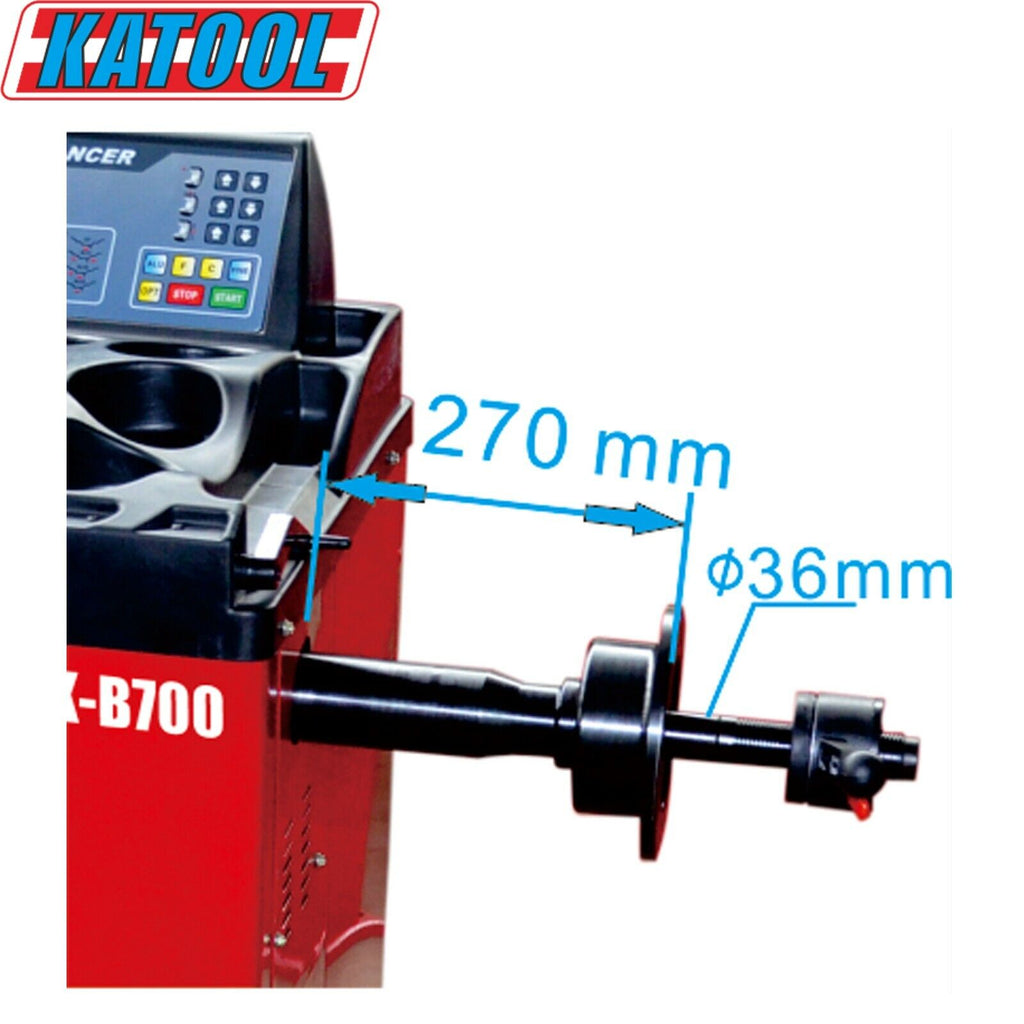

| Reinforced Shaft – 36mm quench-treated thread for added durability |
| Smart Control Board – Advanced welding design; moisture-proof, dustproof, and antistatic |
| Multiple Balance Modes – Accommodates various rim types with extreme precision |
| Self-Diagnosis & Calibration – Double-sided calibration and built-in troubleshooting for quick setup |
| Flexible Unit Settings – Choose from Ounce/Gram and MM/Inch |
| Stable Power Supply – High-quality integrated board for consistent performance |

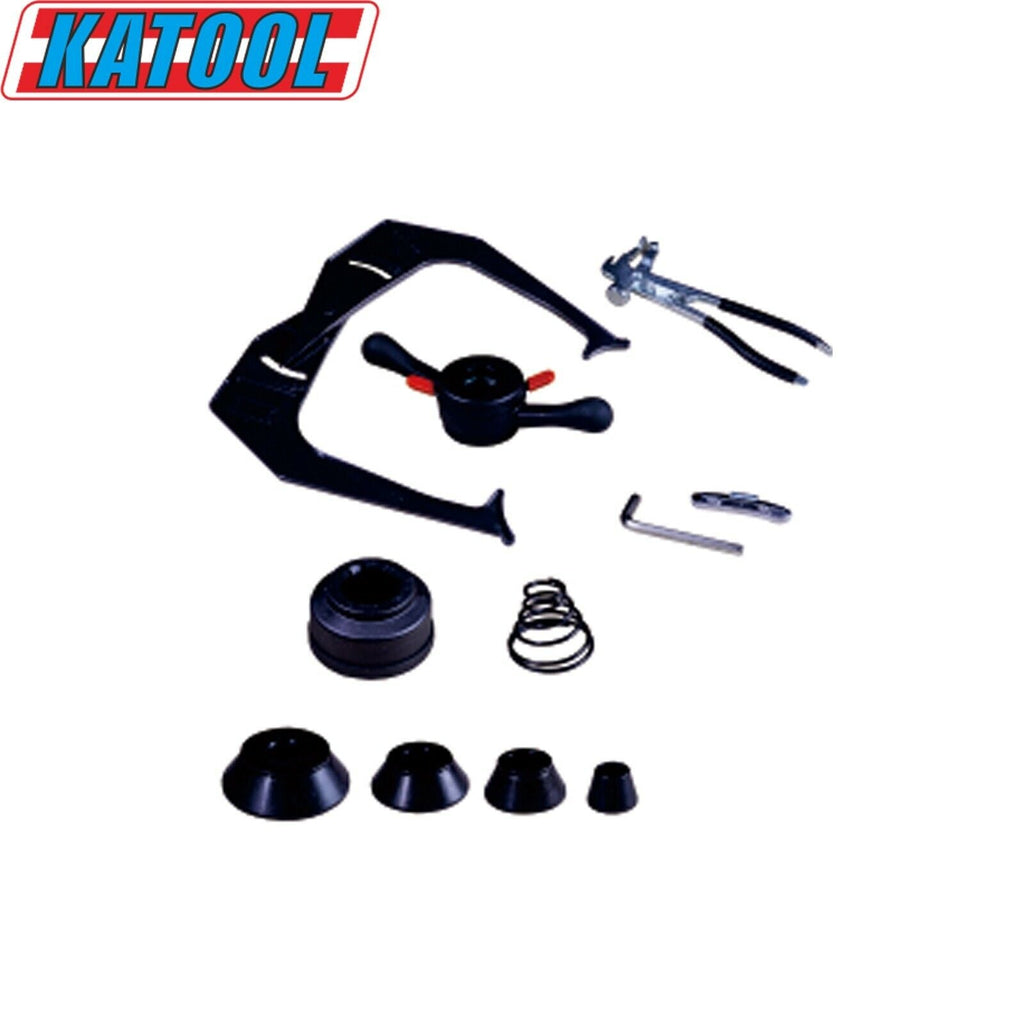

| Optional Add-Ons – Includes extended shaft compatibility and optional safety wheel guard |
|
 |
| Specification | Details |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | 34.64" (880mm) |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / 1PH |
| Motor Power | 0.25 KW |
| Center Hole Diameter | ≤ 135mm (5.31") |
| Max Wheel Weight | ≤ 143 lbs (65kg) |
| Balancing Accuracy | ± 1g |
| Measuring Time | 7 seconds |
