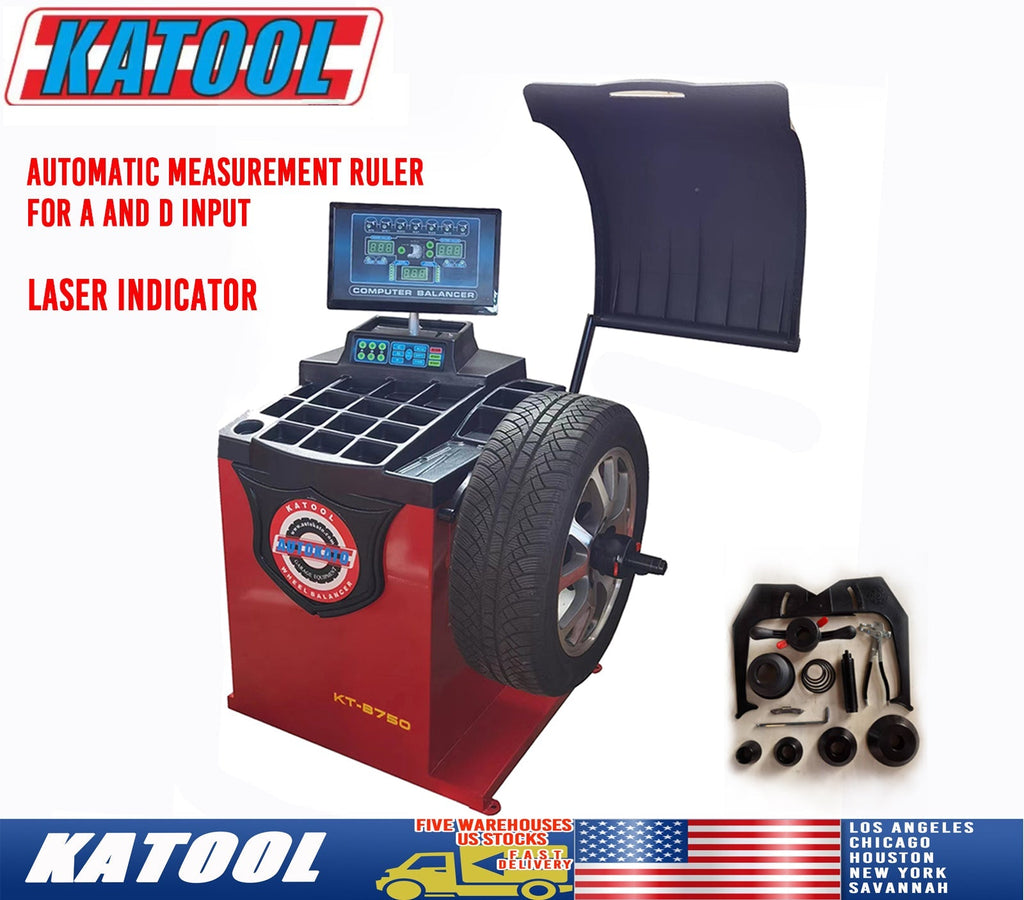

KATOOL KT-B750 Wheel Balancer with Laser, Automatic Ruler & Wheel Guard
Engineered for high-precision performance, the KATOOL KT-B750 Wheel Balancer is ideal for busy automotive shops that demand accuracy, speed, and convenience. Built with a heavy-duty 3mm-thick steel frame and reinforced with 8mm bottom and side plates, it provides maximum durability and vibration control during balancing operations.
This model includes an automatic measurement ruler that instantly inputs A and D values, as well as a laser-guided positioning system to ensure pinpoint weight placement. Its advanced pressure sensor support system guarantees precise readings, while the high-performance motor with pure copper winding enhances power, minimizes defects, and extends overall lifespan.
Equipped with a composite wheel guard, longer shaft for wider wheels, and user-friendly calibration modes, the KT-B750 combines innovation with reliability. Whether you’re working on standard passenger vehicles or custom wheels, this balancer adapts to your needs with multiple balance modes and built-in diagnostic features.
| Key Features |
|---|
| Automatic Ruler – Instantly measures and inputs A & D values for faster setup |
| Laser Guidance – Helps with precise placement of balance weights |
| 3mm Steel Body – Provides strength and minimizes vibration |
| 8mm Sensor Support Plates – Ensure consistent, high-accuracy readings |
| Advanced Motor – Pure copper winding for efficiency and extended service life |
| Rugged Shaft – 36mm, heat-treated for long-term durability |
| Moisture/Dust-Resistant PCB – Welded for anti-static, dustproof operation |
| Multiple Balancing Modes – Supports various rim types and wheel profiles |
| Self-Calibrating System – Built-in diagnostics and easy recalibration |
| Unit Selection – Toggle between grams/ounces and mm/inches |
| Wheel Guard & Extended Shaft – Accommodates wider wheels safely |
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | Up to 15" |
| Max Wheel Diameter | 880mm (34.6") |
| Center Hole Diameter | <135mm |
| Max Wheel Weight | 143 lbs (65 kg) |
| Balancing Speed | 180 RPM |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Power Supply | 120V / 1PH / 60Hz |
| Motor Power | 0.25 kW |
