Katool KT-M120 12,000 LB Clear Floor Two Post Lift – Built for Bigger Jobs

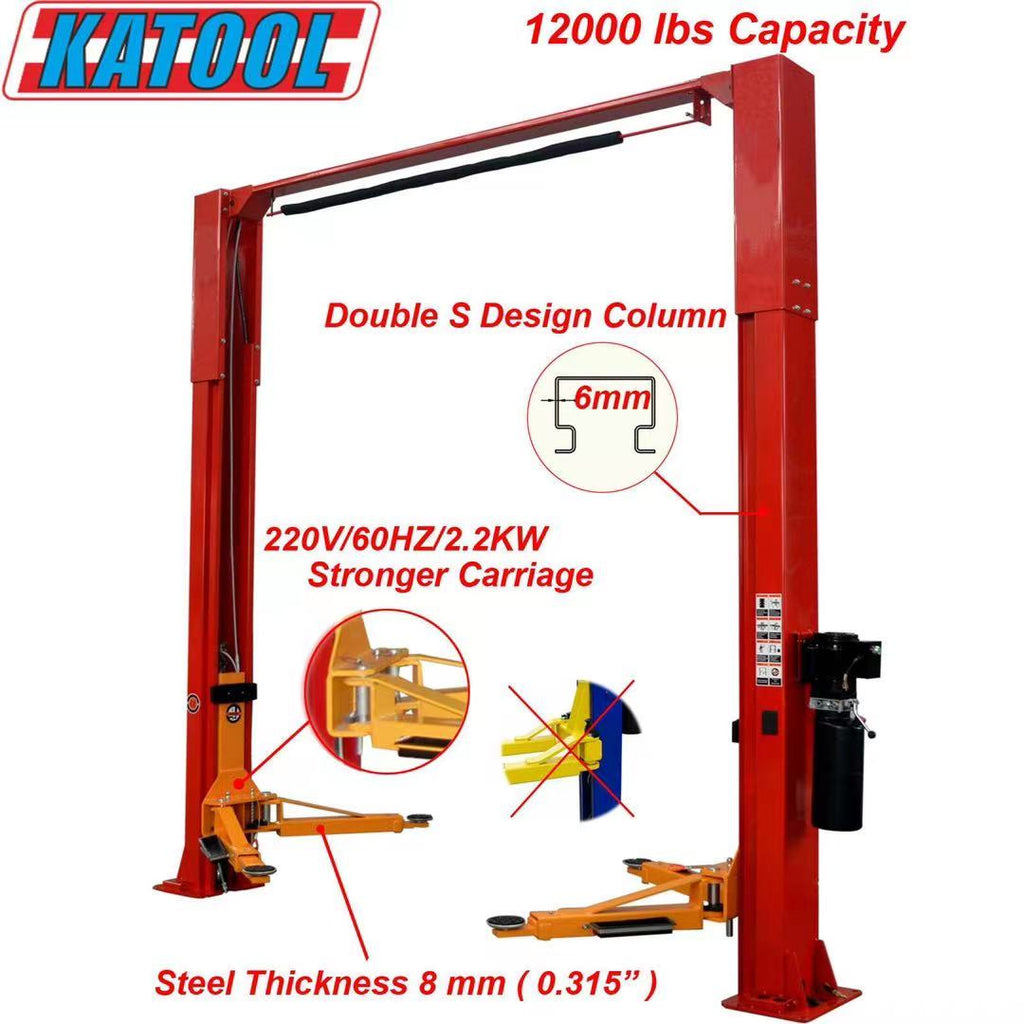

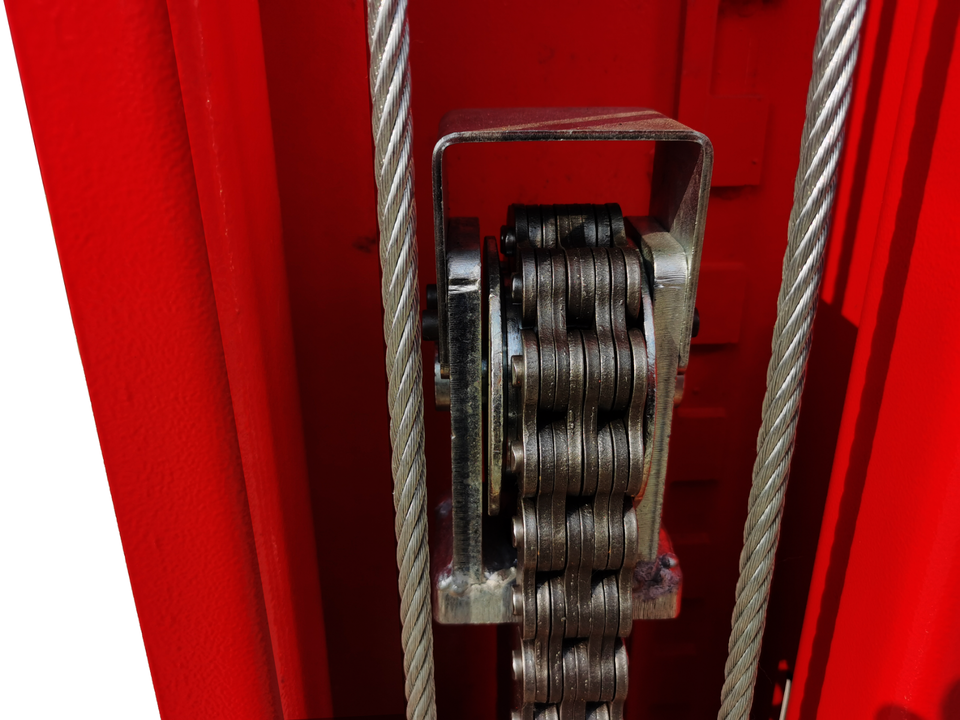

The Katool KT-M120 is your heavy-duty solution for lifting larger vehicles with confidence and precision. With a powerful 12,000 lb capacity, this clear floor two post lift is ideal for full-size trucks, commercial vehicles, and heavy-duty service centers. Its symmetric arm configuration, dual hydraulic chain-drive cylinders, and overhead shutoff bar make it both high-performing and operator-safe.
Certified to CE standards, the KT-M120 exceeds international safety benchmarks, undergoing 115% dynamic and 150% static load tests. It includes rubber door protection pads, +30mm and +120mm extension adaptors, and manual safety locks on both columns for added versatility and peace of mind.
With a spacious 117.75" drive-through clearance and 165.5" total width, this lift delivers superior access and adaptability. Whether you're working in a commercial bay or outfitting a serious home garage, the KT-M120 gives you strength, space, and safety in one high-performance package.
⚠ Concrete Requirement: Must be installed on concrete that is at least 5.9 inches thick (150mm) with a minimum 3000 PSI strength. Always verify surface specs before installation.
Key Features
| Product Features |
|---|
|
|
 |

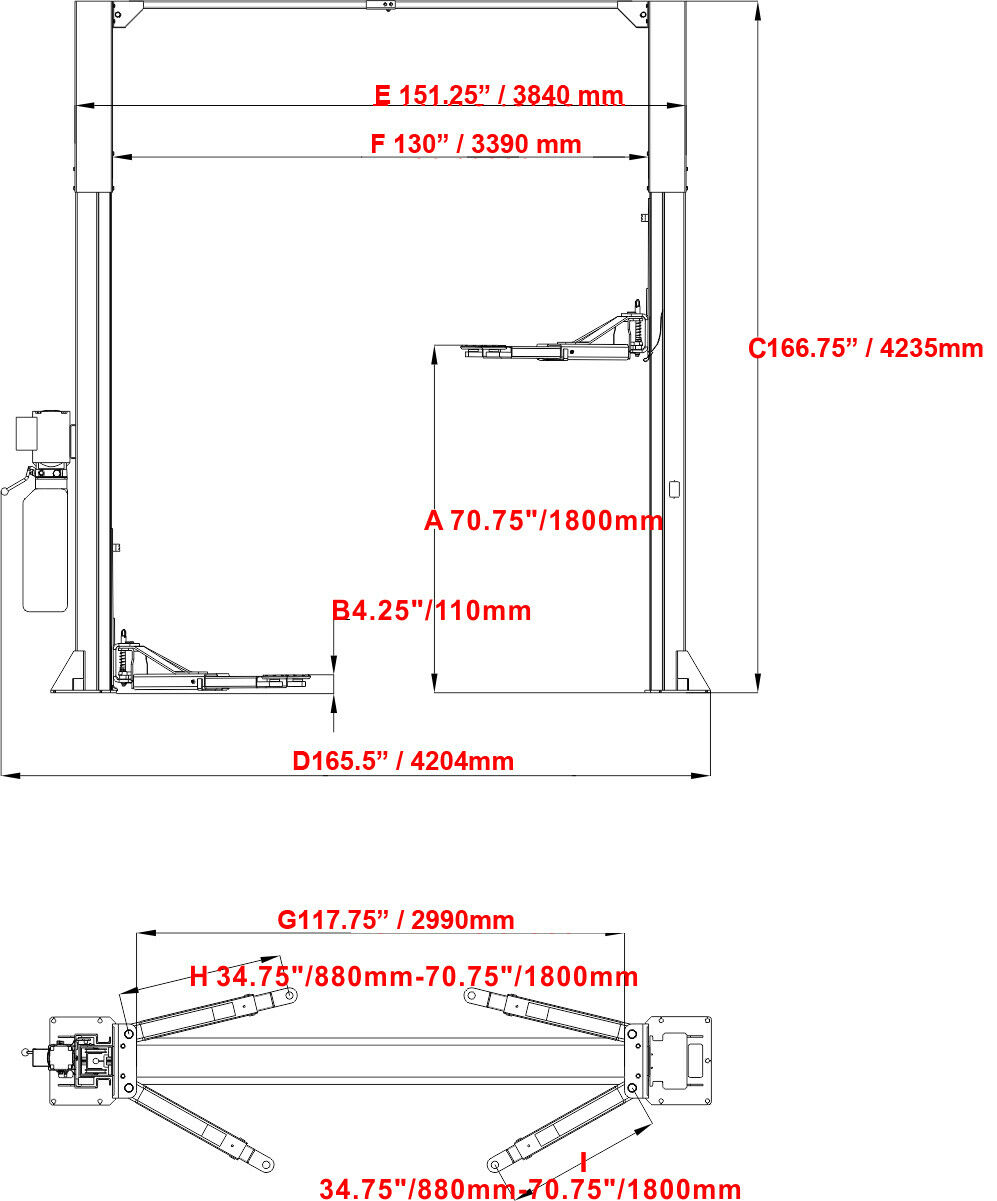

| Product Specifications | |
|---|---|
| Lifting Capacity | 12,000 lbs / 5,500 kg |
| Max. Lifting Height | 70.75 in / 1,800 mm |
| Minimum Height | 4.25 in / 110 mm |
| Overall Height | 166.75 in / 4,235 mm |
| Overall Width | 165.5 in / 4,204 mm |
| Outside Column Width | 151.25 in / 3,840 mm |
| Inside Column Width | 130 in / 3,390 mm |
| Drive-Through Clearance | 117.75 in / 2,990 mm |
| Motor | 220V / 60Hz / 1PH / 2.2kW |
| Net Weight | 1,653 lbs / 750 kg |
Now available for fast delivery or pickup. Shop the Katool KT-M120 at TurboLifts.com—your trusted supplier for professional-grade lifting equipment.
