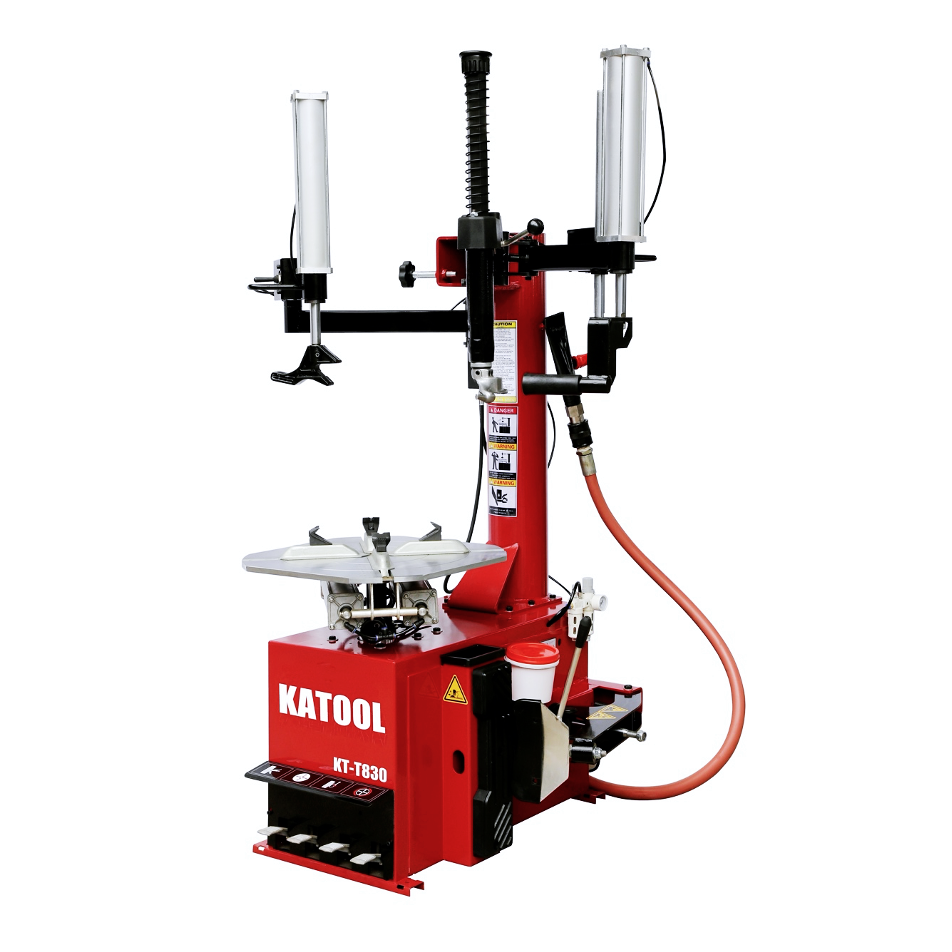

Katool KT-T830 Tire Changer with Double Assist Arms – 120V

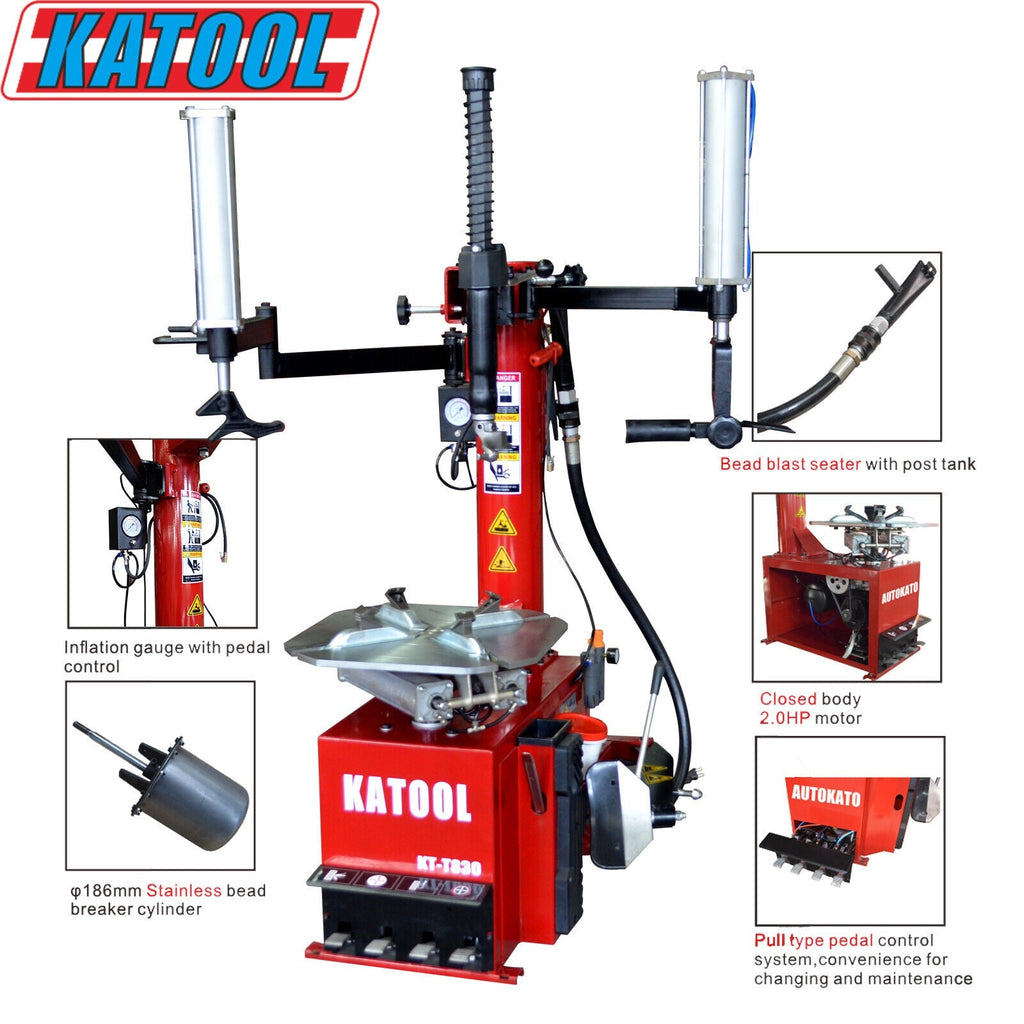

Take control of even the most stubborn tires with the Katool KT-T830, a professional-grade tire changer built for performance, precision, and protection. Designed specifically for busy shops and garages, the KT-T830 features double assist arms, a bead blast seater, and a 7.32" stainless steel bead breaker cylinder for maximum leverage and convenience.

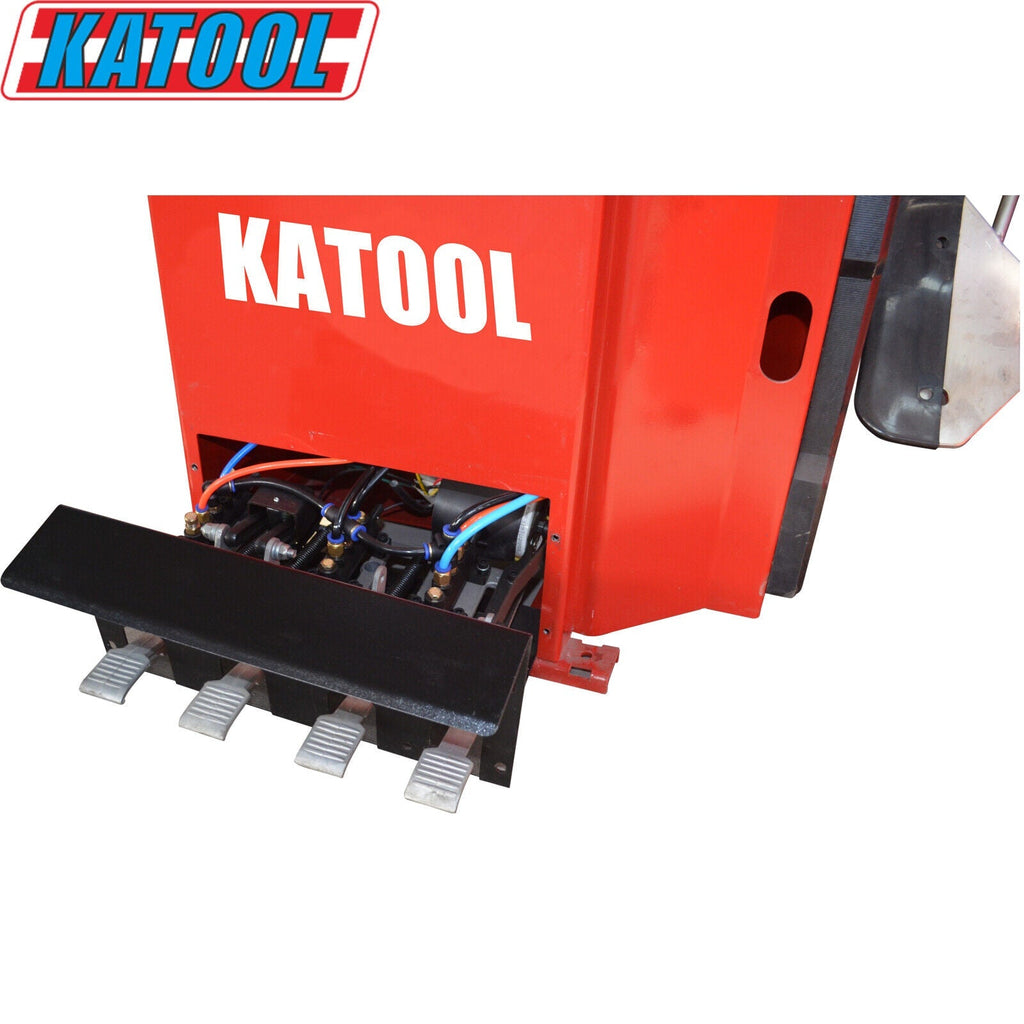

This machine is engineered with carburized alloy steel jaws and a stainless steel mounting head, giving it extreme durability and precision when handling high-volume workloads. Every contact point is rim-safe, thanks to protective covers that prevent cosmetic damage. A pull-type pedal control system paired with a 2.0HP motor ensures smooth, reliable operation.
The KT-T830 is equipped with a closed body cabinet, a high-efficiency lubricator, and is optimized for North American power with a 120V/1PH setup, making it a powerful and reliable addition to any tire service bay.
| Key Features |
|---|
| 8,000 lbs Tire Handling Capacity – Approximate rating based on structural design |

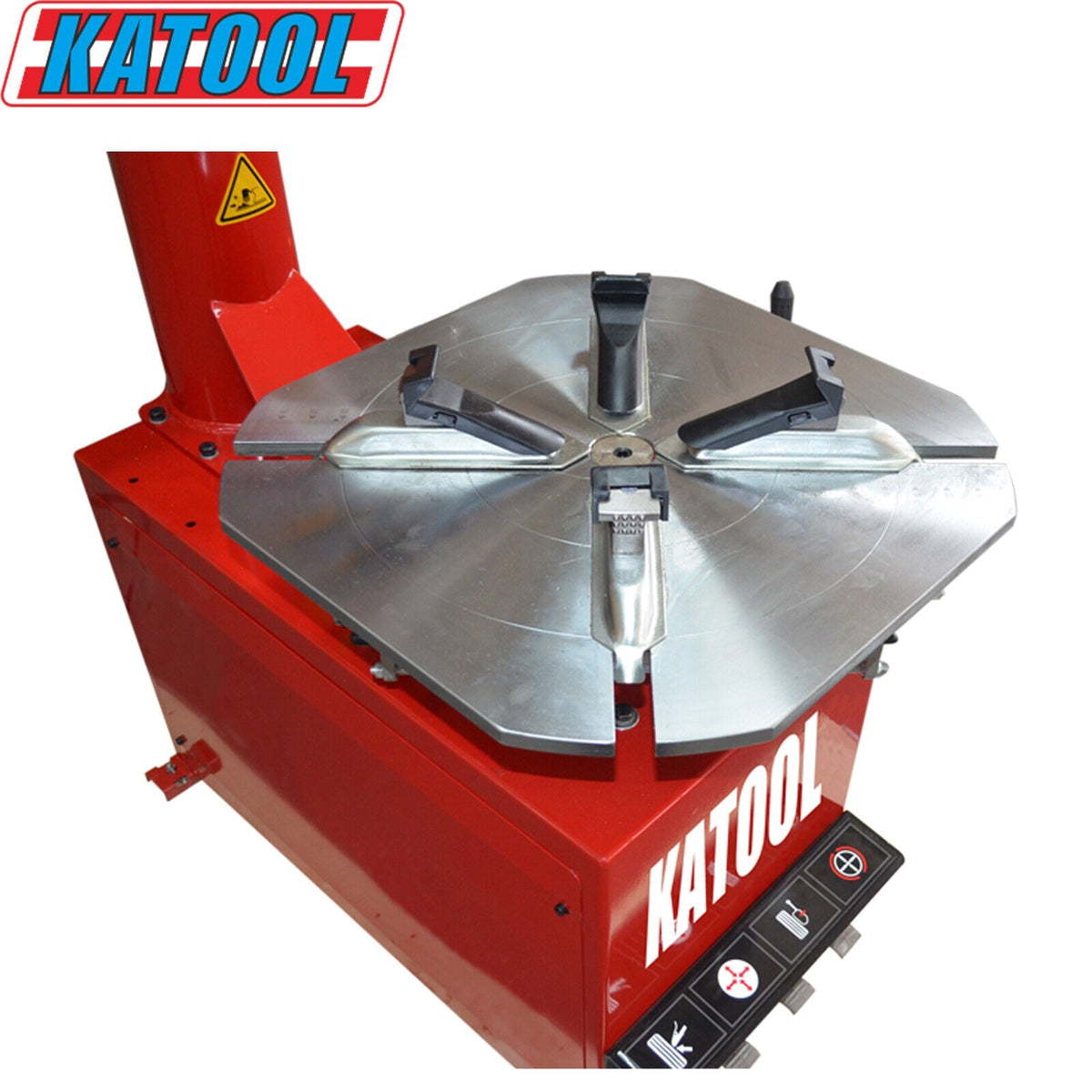

| Alloy Steel Jaws – Deep carburization for enhanced strength and durability |
| Stainless Steel Mounting Head – Includes plastic rim guard to prevent wheel damage |

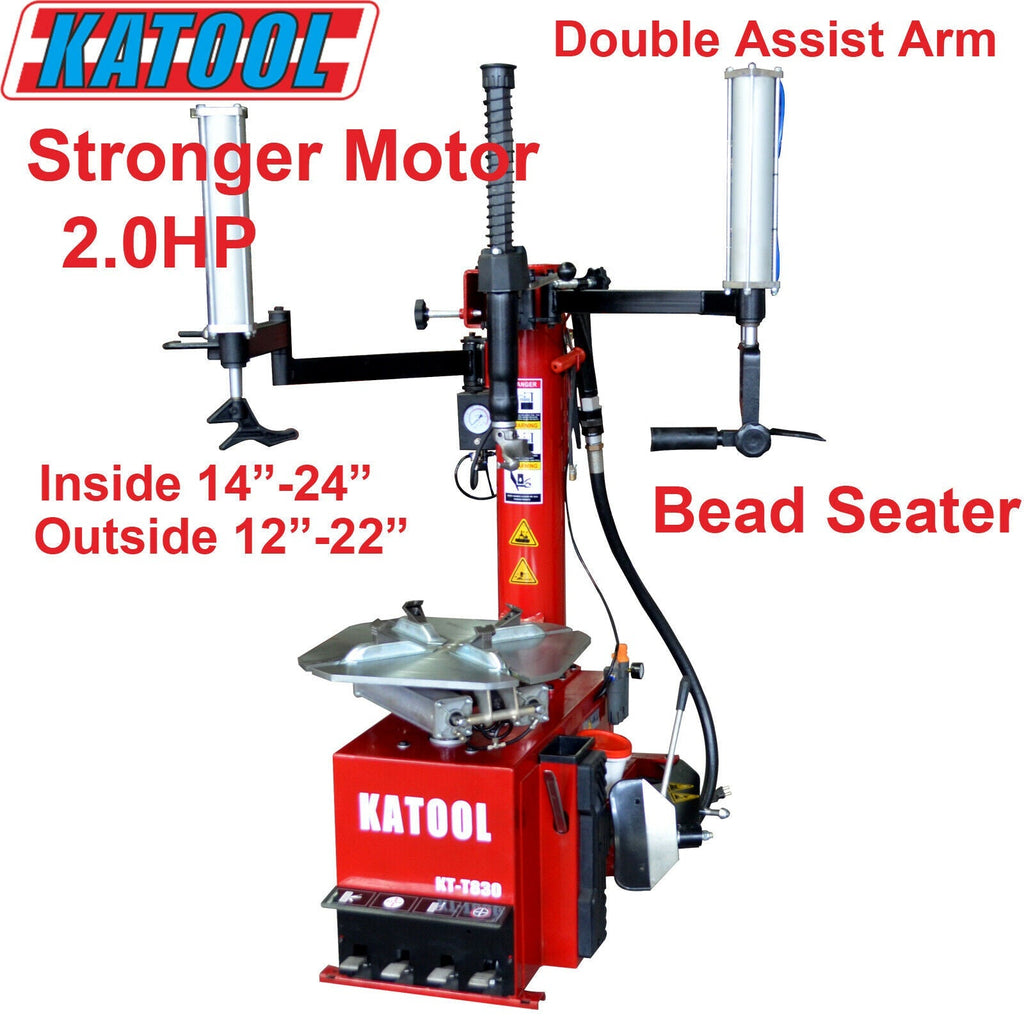

| Double Assist Arms – Simplifies mounting and demounting of low-profile and stiff sidewall tires |
| Bead Blast Seater – Equipped with post tank for rapid tire inflation |

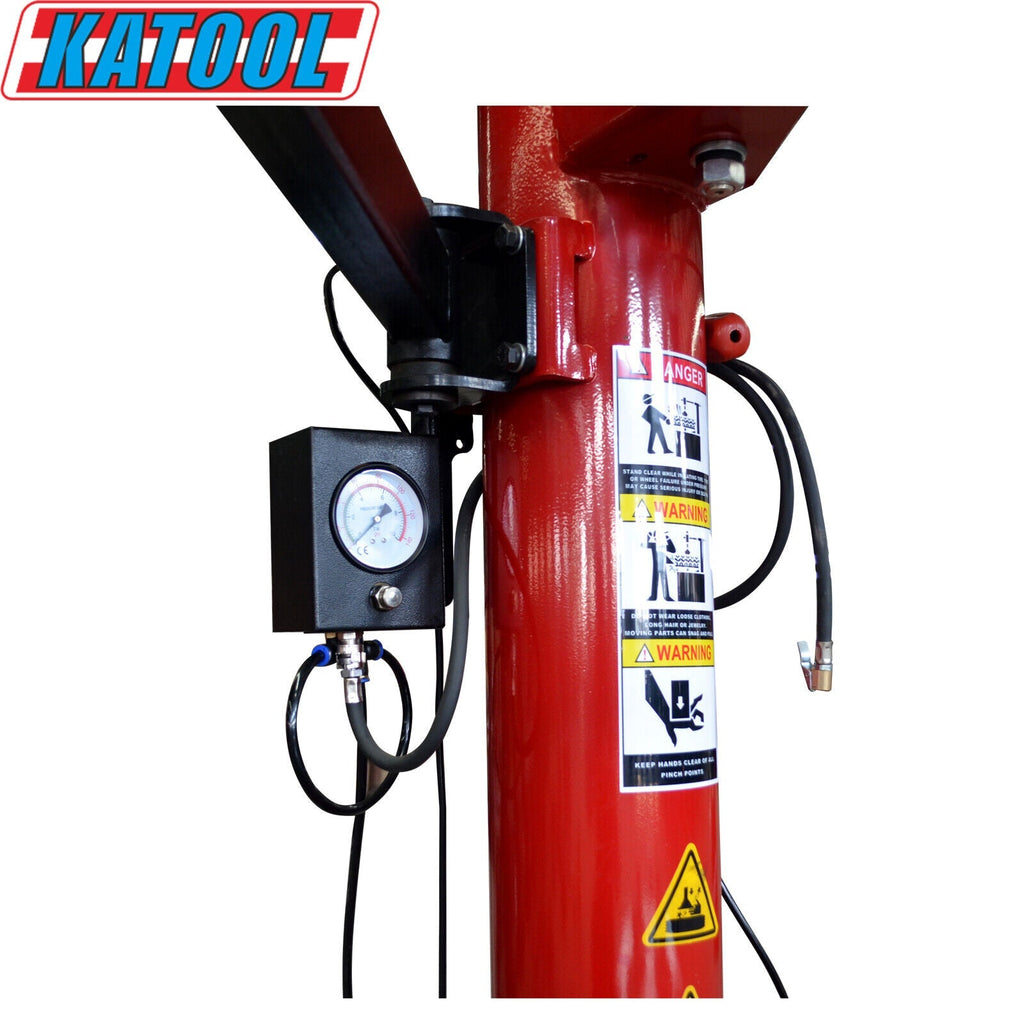

| Pedal-Controlled Inflation Gauge – Allows hands-free tire seating for efficiency |
| 2.0HP Copper-Wound Motor – Provides high torque with reduced heat buildup |

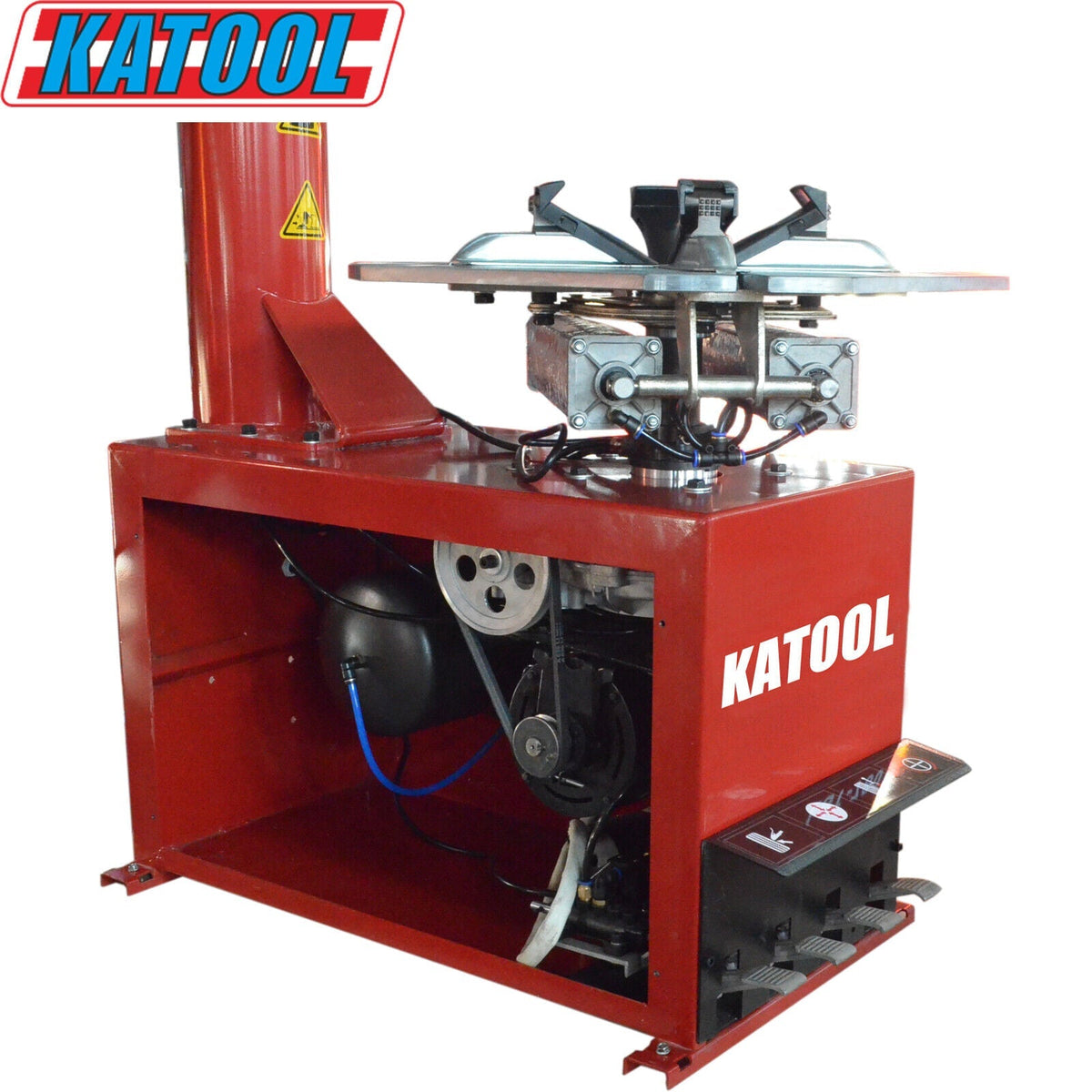

| Closed Cabinet Design – Shields internal components from debris and damage |
| Stainless Steel 7.32" Bead Breaker Cylinder – Ensures consistent and powerful breaking force |
| High-Quality Air Lubricator – Prolongs the life of pneumatic components |
| Professional Application – Perfect for tire shops, service centers, and mobile tire technicians |
 |
 |
| Product Specifications | Details |
|---|---|
| Max Wheel Diameter | 41" (1040mm) |
| Max Wheel Width | 15" (380mm) |
| Outside Clamp Range | 12" – 24" |
| Inside Clamp Range | 14" – 26" |
| Motor Power | 2.0HP / 1.5KW |
| Power Supply | 120V / 1PH |
| Rotation Speed | 6.8 RPM |
| Air Pressure Range | 116–145 PSI (0.8–1.0 Mpa) |
| Net Weight | 529 lbs (240 KG) |
| Bead Breaker Cylinder | 7.32" (186mm), stainless |
Installation Notes:
-
Install on level concrete with proper power and air access
-
Anchor if required for stability
-
Connect to regulated air supply (110–145 PSI)
-
Calibrate inflation gauge, test pedal system, and apply tire lube before use
The Katool KT-T830 delivers the strength and control serious shops need to handle modern tires with speed and precision. Backed by Katool's quality engineering, it's the perfect addition for high-volume tire changers who want top-tier performance and durability.
