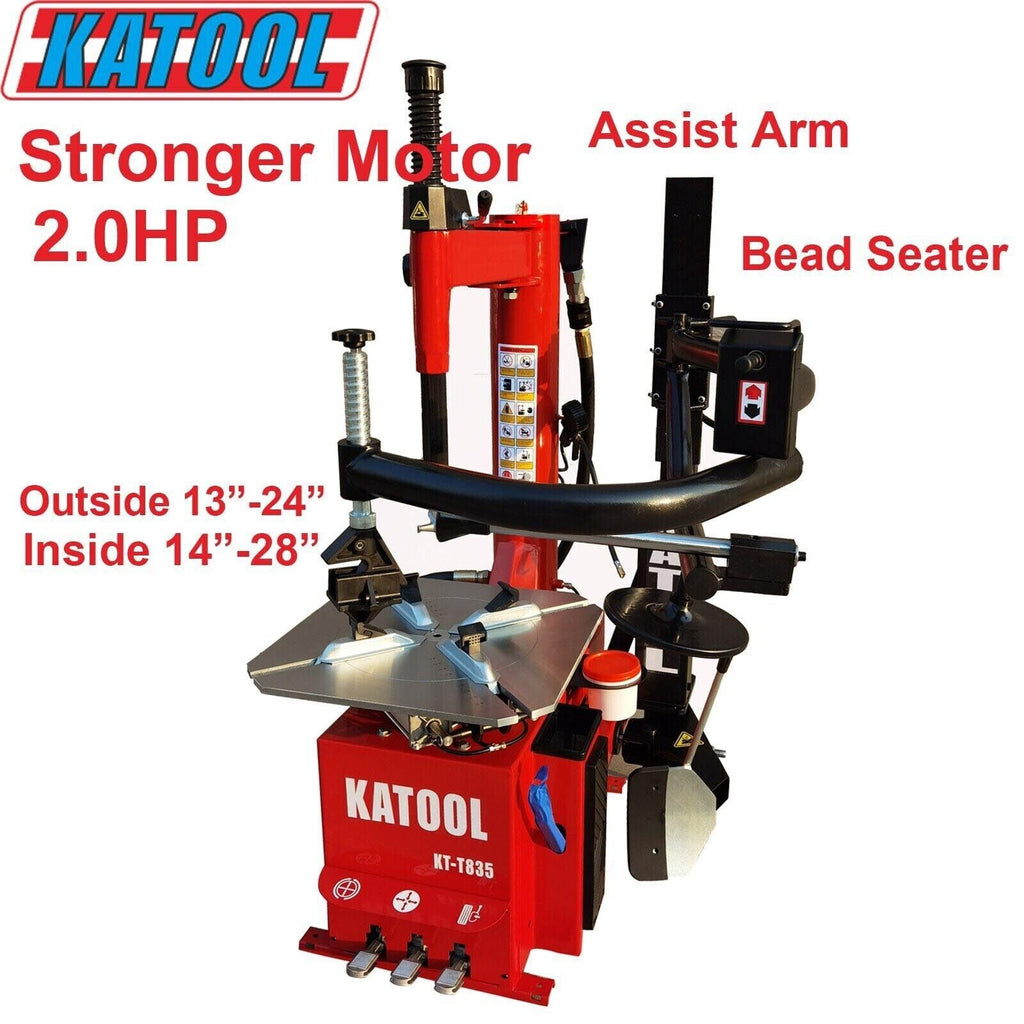

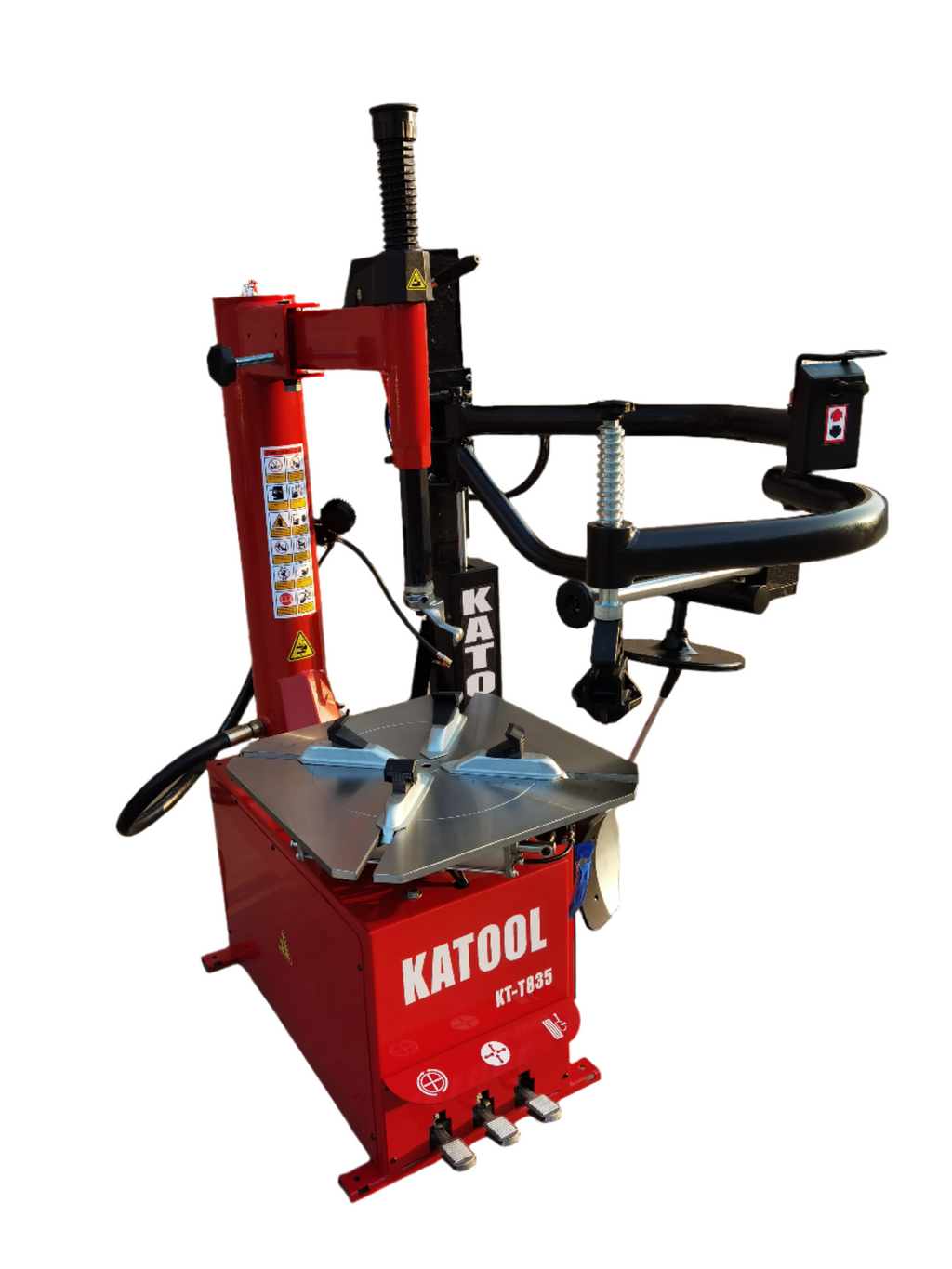

KATOOL KT-T835 Wheel Clamp Tire Changer Machine – Built for Power, Precision, and Performance
The Katool KT-T835 is engineered for high-volume shops that demand consistency, speed, and care when working with today's larger, more delicate wheels. Featuring an upgraded double-assist arm system and bead blast inflation tank, this tire changer gives technicians the control and torque needed for everything from low-profile performance tires to heavy-duty truck applications.
Its alloy steel jaws are treated with deep carburization and quenching to combine strength with flexibility — helping prevent damage during tough jobs. The stainless steel mounting head, shaped with precision and finished with a protective polymer cap, ensures safe handling for aluminum and custom rims.
Operators will appreciate the easy-access pedal layout, closed cabinet design, and top-tier 2.0HP copper-wound motor, all fine-tuned for the North American 110V/1PH power standard. The KT-T835 is not just tough — it’s intelligently designed to reduce downtime and maximize workshop efficiency.
| Key Features |
|---|
| Durable Alloy Steel Jaws – Carburized (0.8–1.1mm) and quenched for increased toughness and surface hardness |
| Polished Stainless Mounting Head – Ergonomically contoured and rim-safe with protective plastic cover |

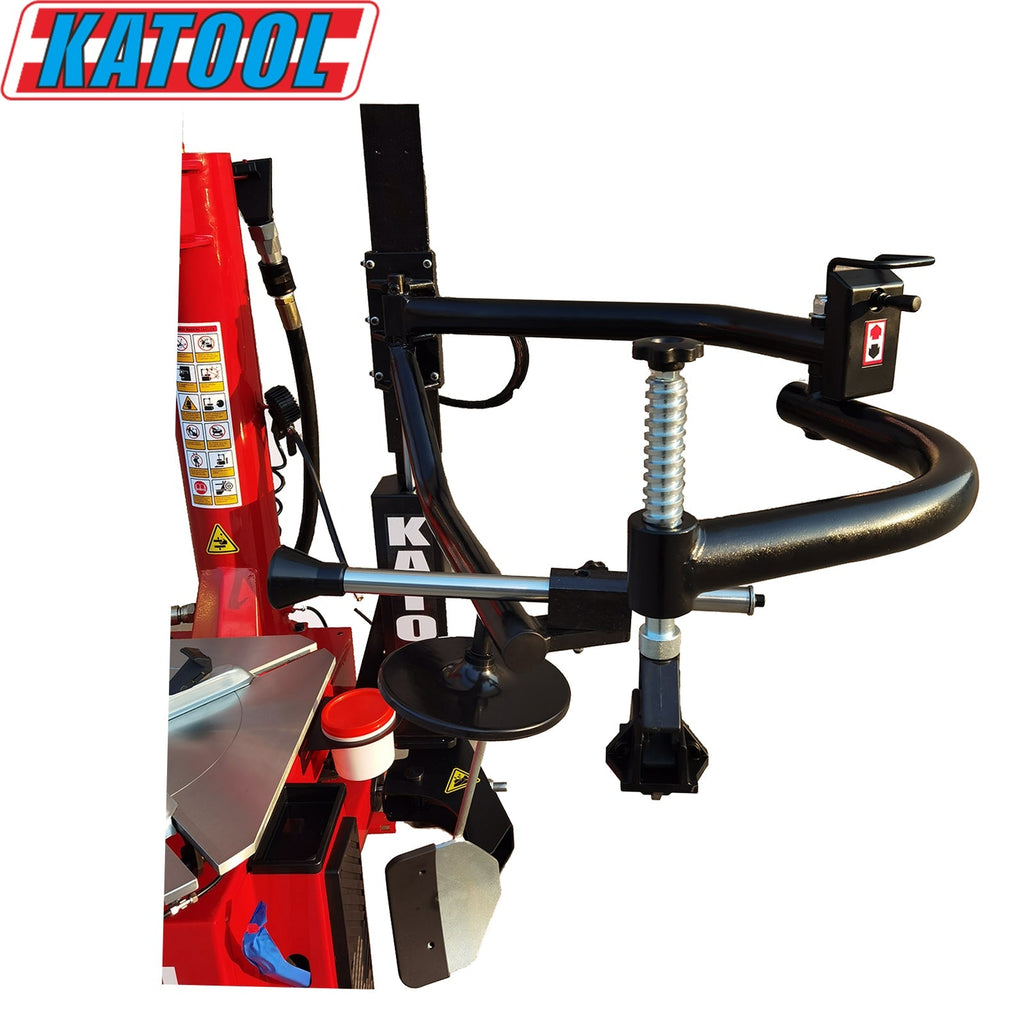

| Double Assist Arms – Provide additional leverage and stability when handling stiff sidewalls or large wheels |
| Bead Blast Seater – Integrated inflation tank ensures rapid and even seating for tubeless tires |
| Precision Pedal Controls – Pull-style design for reliable, intuitive operation |
| High-Efficiency Copper Motor – Fast cooling, long lifespan, and lower failure rate under constant load |
| Stainless Steel Bead Breaker Cylinder (186mm) – Designed for long-lasting impact strength |
| Closed Body Casing – Shields internal systems from dust, debris, and shop wear |
| Premium Air/Oil Filter System – Improves pneumatic reliability and reduces maintenance needs |
| Optimized for U.S. Power – 110V/60Hz/1PH operation, ready to plug and perform |
 |
 |
| Product Specifications | Details |
|---|---|
| Max Wheel Diameter | 41" (1040 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 13" – 26" |
| Inside Clamp Range | 14" – 28" |
| Power Supply | 110V / 1PH / 60HZ |
| Motor Power | 2.0HP / 1.5KW |
| Rotation Speed | 6.1 RPM |
| Operating Air Pressure | 0.8 – 1.0 MPa (116–145 PSI) |
| Net Weight | 582 lbs (264 kg) |
Shipping & Setup
Ships in secure packaging with detailed install documentation. Before installation, ensure your work surface is level concrete and your air and power sources meet machine requirements. Anchoring may be required based on your shop’s usage needs.
The KATOOL KT-T835 delivers commercial-grade tire service in a rugged, rim-safe package — all with the flexibility, reliability, and precision professionals demand.
