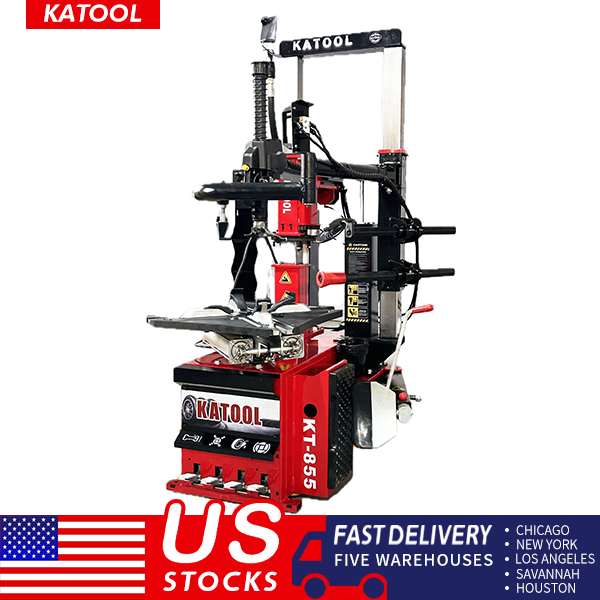

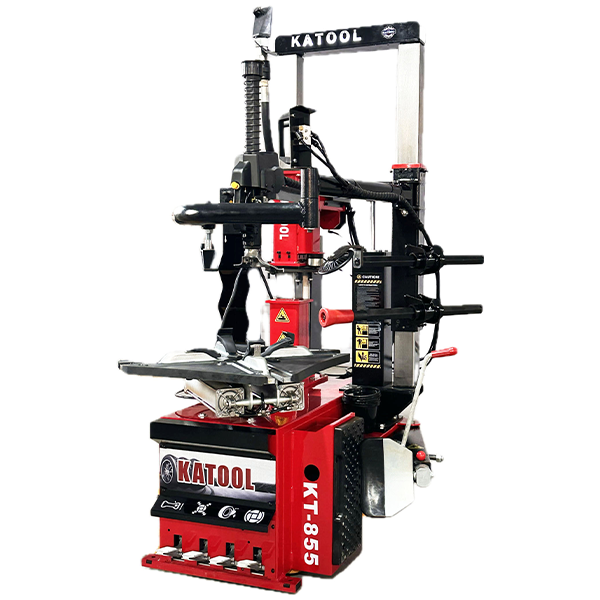

Katool KT-T855 Vertical Press Tire Changer
Take your shop's efficiency to the next level with the Katool KT-T855 Vertical Tire Press Changer, engineered for high-volume and heavy-duty tire operations. This professional-grade machine combines strength, precision, and user-friendly features to deliver consistent performance on a wide range of rim and tire sizes.
Built with 3mm thick steel and reinforced welding, the KT-T855 minimizes vibration and maximizes stability, even under intense workloads. Its automatic measurement ruler streamlines operation by automatically inputting A and D values, saving time and eliminating manual errors. The Ο36mm quench-treated shaft thread and 8mm thick integrated side and base boards add serious durability and rigidity.
From run-flats to low-profile tires, the KT-T855 handles it all, powered by a high-performance copper-wound motor for stronger torque, faster heat dissipation, and a longer service life. The advanced computer board is anti-static, dustproof, and moisture-resistantβideal for tough shop environments. Youβll also find built-in fault diagnostics, dual-sided calibration, and multiple balancing modes to handle various rim types with ease.
Whether youβre working with wide wheels or just need reliable consistency, the KT-T855 offers unmatched versatility with unit selection (mm/inch, oz/g), a stable integrated power board, and an optional wheel guard for extra safety.
| Product Features |
|---|
| Automatic Measurement Input: A/D values auto-entered for faster operation |
| Heavy-Duty Frame: 3mm thick steel body with strong welds |
| Integrated Pressure Sensor Support: 8mm base and side boards for added rigidity |
| Top-Level Motor: Copper winding for max power and heat dissipation |
| Ο36mm Shaft Thread: Quenching-treated for strength and longevity |
| Advanced Control Board: Dustproof, moisture-proof, anti-static |
| Multi-Mode Balancing: Adaptable for various rim types |
| Dual-Side Calibration: Simplified user calibration and fault diagnosis |
| Flexible Units: Switch between grams/ounces, mm/inch |
| Optional Wheel Guard for extra protection |
| Extended Shaft: Accommodates wider wheels |
 |
 |
| Product Specifications | Details |
|---|---|
| Max Tire Diameter | 38" (980 mm) |
| Max Tire Width | 12" (325 mm) |
| Outer Clamp Range | 12" β 24" |
| Inner Support Range | 14" β 28" |
| Tire Shovel Pressure | 2500 KG |
| Air Source Pressure | 0.8β1.0 Mpa |
| Voltage | 110V / 60Hz |
| Power | 1.5KW |
| Full Load Current | 4.7A |
| Noise Level | < 70dB |
