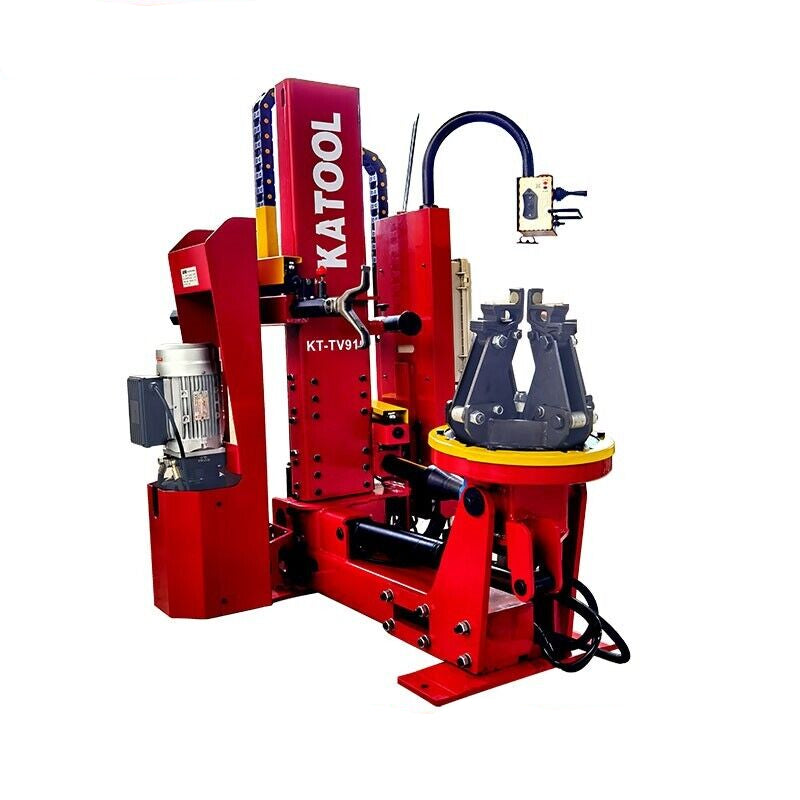

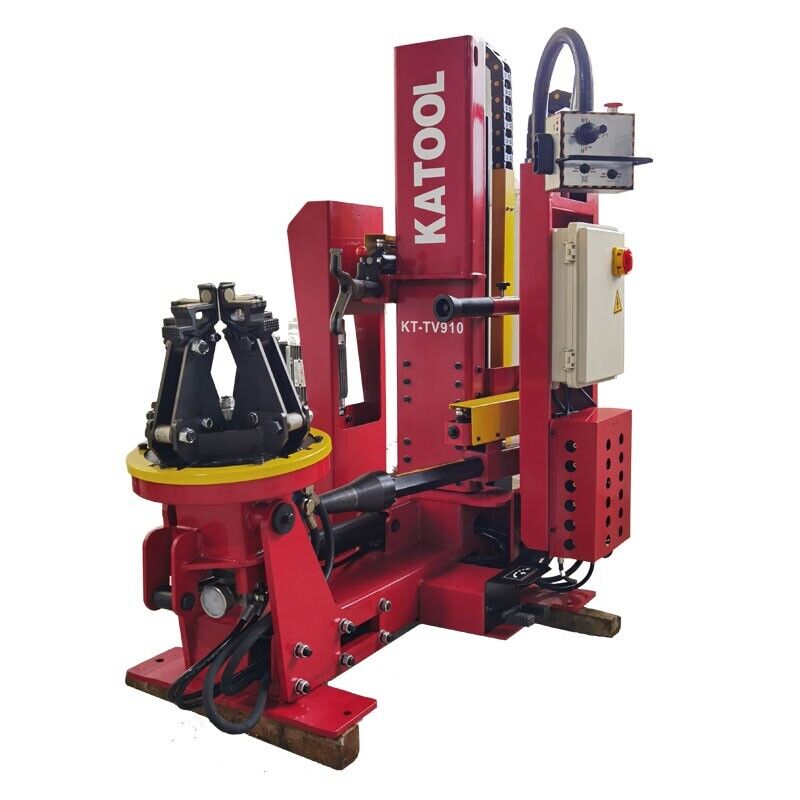

KATOOL KT-TV910 Hydraulic Truck Tire Changer – Built for the Heaviest Jobs
The Katool KT-TV910 is a professional-grade hydraulic truck tire changer engineered for heavy-duty applications in commercial garages and fleet service centers. With a massive clamping capacity from 14" to 42" rims and support for tires up to 63" in diameter and 31" wide, this machine is ideal for trucks, buses, tractors, and even earth-moving vehicles.
Its electro-hydraulic system delivers powerful, efficient performance, while the beak-and-disk mechanism ensures precise, safe handling of even the most challenging bead profiles. The KT-TV910’s multifunction control panel allows operators to safely and intuitively manage every movement from any position, reducing the learning curve and enhancing productivity.
Equipped with low-voltage electrical components and ergonomically placed foot pedals and helper controls, this changer prioritizes both safety and ease of use. Whether you're servicing large fleets or specialized equipment, the KT-TV910 is built to outperform.
| Product Features |
|---|

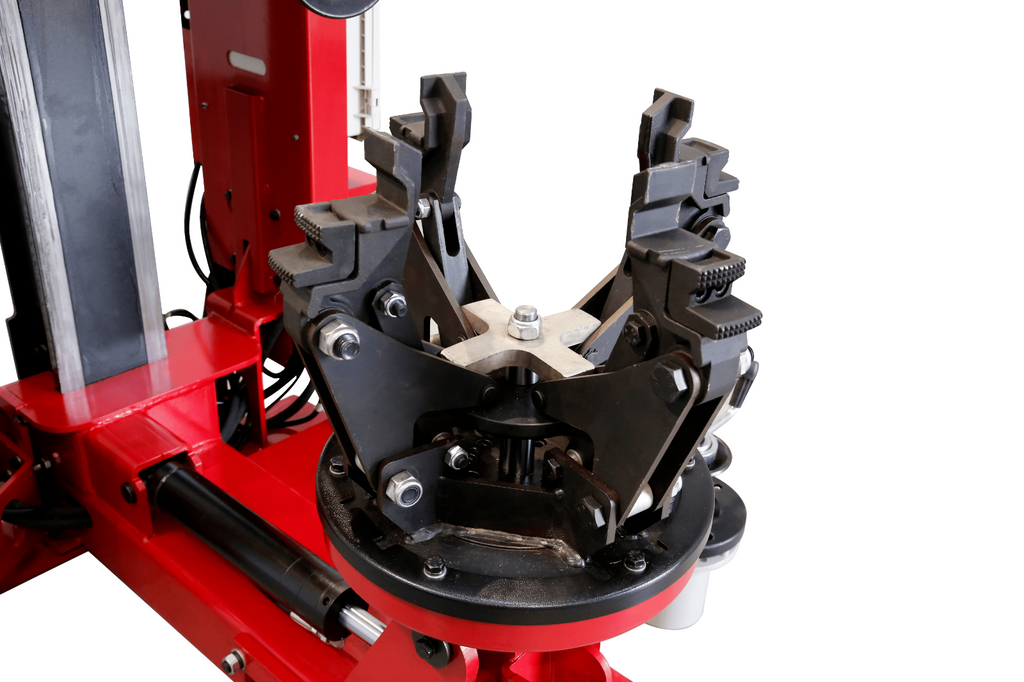

| 14”–42” Rim Clamping Capacity: Handles a wide range of commercial and off-road wheels. |

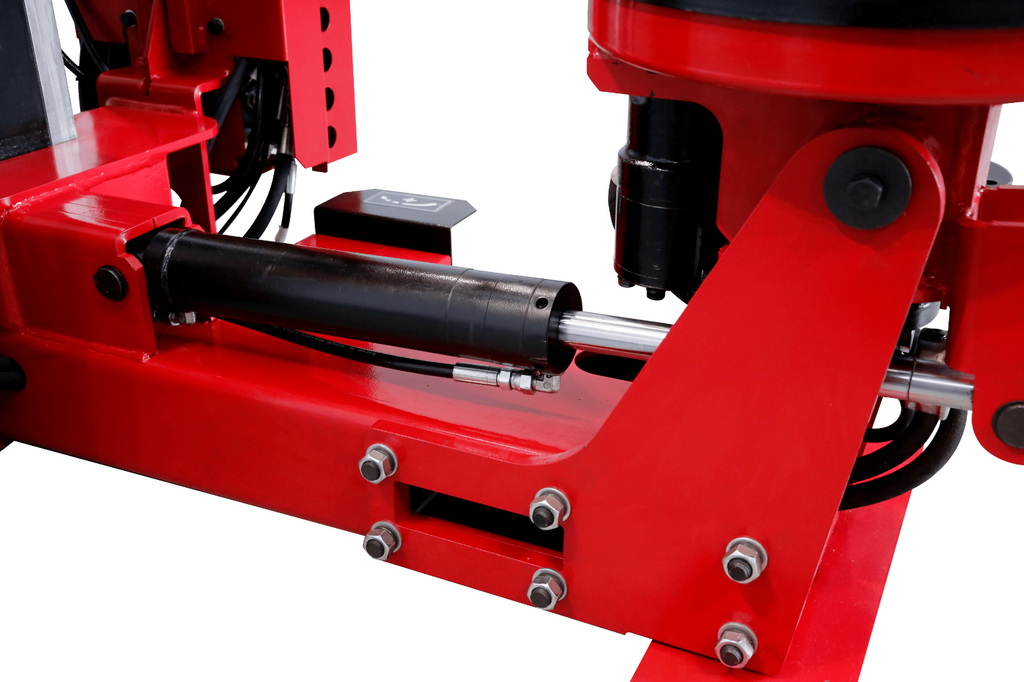

| Electro-Hydraulic Power System: Provides smooth, consistent torque for precision bead breaking and tire removal. |
| Beak & Disk Arm: Delivers strong grip and protection, even on delicate aluminum rims. |
| Multifunction Control Console: Allows safe, full-position operation for all skill levels. |
| Low-Voltage Electrical Components: Enhances safety for technicians during use. |
| Foot Pedals & Helper Controls: Ergonomically located for intuitive workflow and fewer operational errors. |
| Quiet Operation: Runs at under 70 dB(A), reducing shop noise pollution. |
 |
 |
| Product Specifications | Details |
|---|---|
| Outer Rim Range | 14" – 42" |
| Max Wheel Diameter | 63" / 1600 mm |
| Max Wheel Width | 31" / 780 mm |
| Max Tire Weight | 3,306 lbs / 1,500 kg |
| Working Pressure | ≤130 bar |

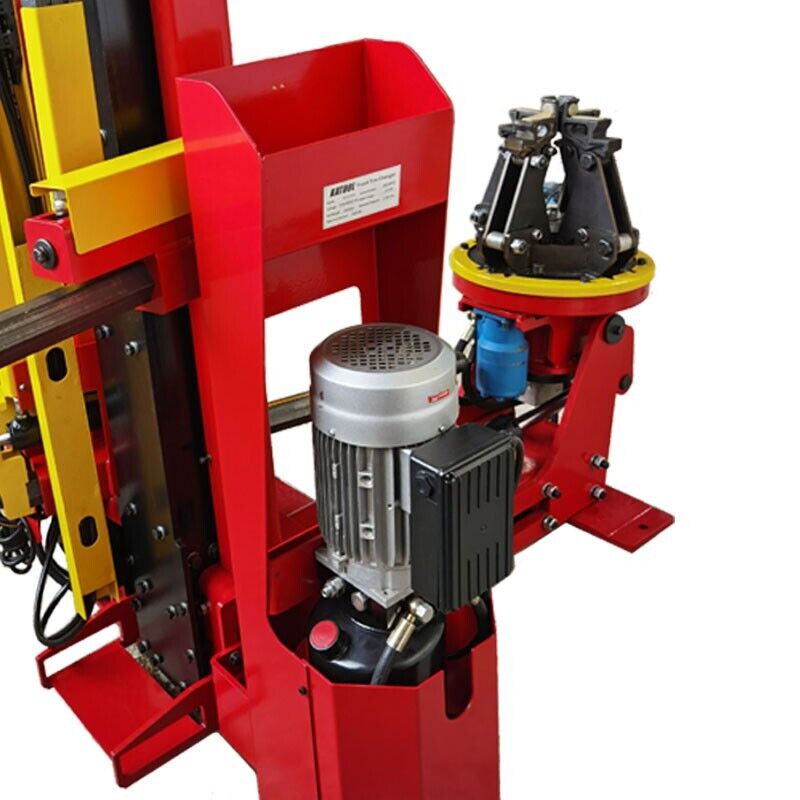

| Hydraulic Motor Power | 3.0 kW / 4.0 HP |
| Power Supply | 220V / 1PH / 60HZ |
| Max Oil Flow (Hydraulic Motor) | 315 |
| Net Weight | 1,256 lbs / 570 kg |
| Shipping Weight | 1,388 lbs / 630 kg |
| Shipping Dimensions | 51" x 43" x 72" |
| Noise Level | < 70 dB(A) |
