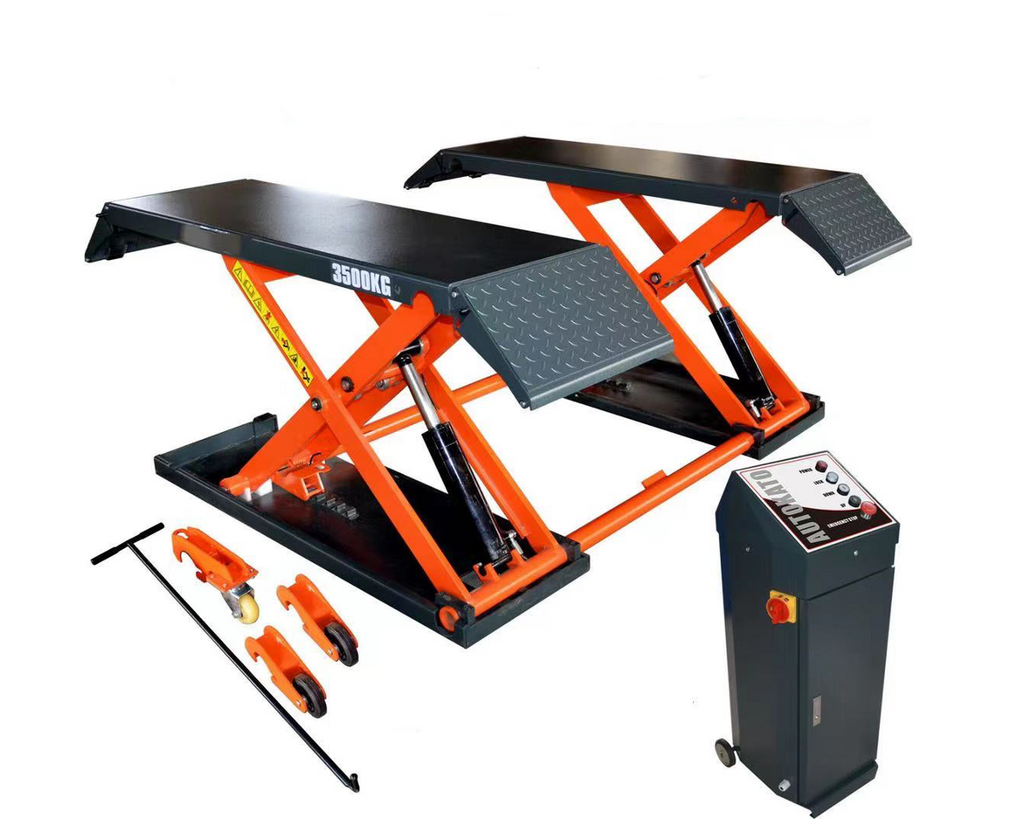

KATOOL KT-X80 8000 lbs. Pneumatic Lock Release Scissor Lift (110v or 220v)
$2,299.00
KATOOL KT-X80 8,000 lbs. Pneumatic Mid-Rise Scissor Lift – 110V or 220V
Engineered for power, precision, and portability, the KATOOL KT-X80 Mid-Rise Scissor Lift offers an exceptional 8,000 lb (3,500 kg) lifting capacity for both professional and home garages. Designed to accommodate low-profile vehicles and long-wheelbase models, this CE-certified lift meets rigorous dynamic (115%) and static (150%) load testing standards for safety and durability.
The pneumatic safety lock system ensures smooth, secure operation, while a 24V low-voltage control panel, height limit switch, and composite rubber lifting blocks enhance operator safety. Ideal for shops with space constraints, the KT-X80 can be fixed or used as a mobile unit thanks to its included portable wheel kit.
Its robust hydraulic system and high-efficiency aluminum motor with cooling fan support extended operation without overheating—available in both 110V and 220V configurations. With a low-profile 4.25" collapsed height and extra-long platform options (via ramp locks), it’s ready to lift SUVs, sedans, and light trucks with confidence.
| Key Features |
|---|
| 8,000 lbs (3,500 kg) Lifting Capacity |
| CE Approved – Exceeds Dynamic & Static Load Standards |
| Mobile or Fixed Mounting Options |
| Pneumatic Safety Lock Release System |
| 24V Low-Voltage Control & Height Limit Switch |
| Composite Rubber Lifting Blocks Included |
| Self-Lubricated Bushings & Bearings |
| Ramp Lock System Extends Platform Length |
| Aluminum Hydraulic Motor with Fan Cooling |
| Operates on 110V or 220V (Customer Selectable) |
| Requires Connection to a Compressed Air Source |
|
 |
| Specification | Details |
|---|---|
| Lifting Capacity | 8,000 lbs / 3,500 kg |
| Max Lifting Height | 41.25" / 1050 mm |
| Min Height | 4.25" / 110 mm |
| Platform Length | 56.25" / 1430 mm |
| Overall Length | 80" / 2036 mm |
| Platform Width | 19.5" / 500 mm |
| Overall Width | 73.25" / 1860 mm |
| Power Unit | 110V or 220V AC / 60Hz / 1PH |
| Net Weight | 1,213 lbs / 550 kg |
